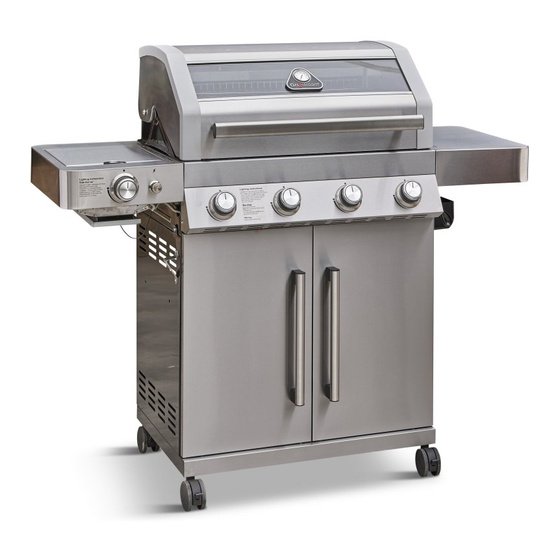

Gourmet 4 Burner Hybrid Barbecue
x 44
WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY
Please read these instructions carefully and ensure that your barbecue is properly installed, assembled,
maintained and serviced in accordance with these instructions.
Failure to follow these instructions may result in serious injury and/or damage to property.
Necessary
Tools
Please check the pack contents before attempting to assemble this product.
A full checklist of components is given in this leaflet. If any components are
missing, please contact the retailer from whom you bought this product.
This product takes approximately 90 MINUTES
to assemble with 2 PEOPLE. The fittings pack
contains SMALL ITEMS which should be KEPT
AWAY FROM YOUNG CHILDREN. Read this
leaflet in full before commencing assembly.
GGH46SS
x 4
x 12
x 12
x 2
x 44
AA Battery (Not included)
Carbon Monoxide Hazard
Using a barbecue inside can kill you,
it gives off Carbon Monoxide, which has no odour.
Never use a barbecue in enclosed spaces such as
a tent, home/building, vehicle or garage.
Scan me for step by
step video instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grillstream GGH46SS
Summary of Contents for Grillstream GGH46SS
- Page 1 Gourmet 4 Burner Hybrid Barbecue GGH46SS x 44 x 12 x 44 x 12 WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY Please read these instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance with these instructions.
-
Page 2: Table Of Contents
How is it different from natural gas Page Lighting your BBQ Page Using your BBQ Page Hybrid System Page Maintenance of your BBQ Page Troubleshooting Page Exploded diagram Page Parts list for GGH46SS Page Fittings list Page Assembly instructions Page 12-33 Leak Test Page Page 2... -
Page 3: Warning Information
GGH46SS CONNECTING THE GAS CYLINDER WARNING INFORMATION There are two different types of gas that can be used on your gas BBQ - Read this Operating Manual before use depending on where you live, that being either butane or propane gas. -
Page 4: Testing For Leaks
GGH46SS SECURING THE HOSE AND REGULATOR ASSEMBLY WHAT IS PROPANE Type A) Screw on hose connection (Fig. 4) It is a fuel gas compressed until it turns to liquid, then stored in a bottle - The BBQ’s manifold connection is 1/4” Male Thread BSP or cylinder under pressure for easy transport. -
Page 5: Lighting Your Bbq
• off position and wait five minutes for any accumulated gas to clear out of the BBQ before repeating procedure. LIGHTING YOUR BBQ (cont.) Grillstream Grills fit directly on top of each other - do not offset them. lo position is obtained by turning the knob fully anti-clockwise - The... -
Page 6: Hybrid System
DIRECTIONS FOR USE - GAS: Your charcoal should now be lit and making the tell-tale popping and The beauty of the Grillstream Hybrid System is that there is no cracking sounds that indicate this. You should now turn off the burners additional assembly or conversion process required, whether you want completely and close your Barbecue Hood. -
Page 7: Maintenance Of Your Bbq
To clean the Grills effectively use the Grillstream cleaning brush which has been specially designed to quickly and effectively clean your Grillstream Grills. Rinse off with clean water and dry before returning to BBQ. -
Page 8: Troubleshooting
GGH46SS TROUBLESHOOTING A note on fire prevention: Most fires in outdoor BBQs are caused by a build up of greases and fat, IF BBQ FAILS TO OPERATE PROPERLY or gas connections which have not been secured properly. Remember - Stop, turn off gas at its source and turn all burner controls to • off to follow the manufacturer’s instructions on proper cleaning and... -
Page 9: Exploded Diagram
GGH46SS Page 9... -
Page 10: Parts List For Ggh46Ss
Cabinet Door Handle Grease Tray Grease Cup Bracket Grease Cup Grillstream Fat Cup Bottle Opener Bottle Opener Bracket Battery Pack Fat Channel Hybrid Flame Tamer Warming Rack Grill Lifter Circular Griddle Plate 395mm Grillstream Gastro Grill 295mm Grillstream Grill Page 10... -
Page 11: Fittings List
GGH46SS x 44 x 12 x 12 x 44 x 12 x 12 FITTINGS x 44 x 44 Part Part Part Part x 12 x 44 x 12 x 44 x 12 x 44 x 12 x 12 x 44... -
Page 12: Assembly Instructions
GGH46SS STEP 1 Push each of the Castors (7) into indicated holes in underside of Cabinet Base Panel (6) until you hear a click. Page 12... - Page 13 GGH46SS STEP 2 Part unscrew the bolts indicated from Cabinet Base Panel (6), slot the Cabinet Side Panels (8 & 9) into place and retighten bolts. Page 13...
- Page 14 GGH46SS STEP 3 Insert and part tighten 2 x Bolt (B) into Cabinet Side Panels (8 & 9). Slot Cabinet Rear Panel (10) into place and secure to Cabinet Base Panel (6) with 2 x Bolt (B). Now fully tighten bolts into Cabinet Side Panels (8 &...
- Page 15 GGH46SS STEP 4 Part unscrew bolts indicated from Cabinet Side Panels (8 & 9) and Cabinet Base Panel (6). Slot Corner Support Brackets (12) in place and retighten bolts. Page 15...
- Page 16 GGH46SS STEP 5 Insert Front Support Bar (11), ensuring magnets are at the bottom edge, and secure with 4 x Bolt (A). x 44 Part x 12 x 44 x 12 M4x12 Bolt Page 16...
- Page 17 Unscrew and remove Wingnut and Washer from Thermometer (2). Thread Thermometer Spindle through Grillstream Logo Plate (3) and then through Glass Window of Hood (1). Replace Washer and Wingnut. Note: Do not overtighten as this could lead to damaging of the Glass Window.
- Page 18 GGH46SS STEP 7 Secure cooking frame to side panels (8 & 9) using 4 x Bolt (B). Part x 44 x 12 M6x12 Bolt Page 18...
- Page 19 GGH46SS STEP 8 Part unscrew bolts on side of Cooking Frame (5) as indicated. Slot Side Shelf (13) in place and re-tighten bolts to secure. Page 19...
- Page 20 GGH46SS STEP 9 Further secure Side Shelf (13) in place from inside the Cooking Frame using 2 x Bolt (B) and 2 x Washer (D). Note: Washers (D) are domed and bottom of dome should be facing the Cooking Frame.
- Page 21 GGH46SS STEP 10 Part unscrew bolts on side of Cooking Frame (5) as indicated. Slot Ceramic Side Burner Shelf (14) in place and retighten bolts to secure. Page 21...
- Page 22 GGH46SS STEP 11 Further secure Ceramic Side Burner Shelf (14) in place from inside the Cooking Frame using 2 x Bolt (B) and 2 x Washer (D). Note: Washers (D) are domed and bottom of dome should be facing the Cooking Frame.
- Page 23 GGH46SS STEP 12 To attach the Ceramic Side Burner Ignition (20) unscrew Ignition Button and Nut, attach Ignition Wire from Ceramic Side Burner Assembly, pass the threaded section of the Ignition through hole on Ceramic Side Burner Side Shelf from behind and screw Nut by hand to secure.
- Page 24 GGH46SS STEP 13 Insert wire from LED Circuit Board (21) through hole in Ceramic Side Burner Shelf Bezel and push circuit board into place, ensuring hole and cutout match up with those on the bezel. Part screw in bolt from separate bolt pack on Side Burner Control Spindle and slide through Ceramic Side Burner Shelf Bezel from behind.
- Page 25 GGH46SS STEP 14 Remove Ceramic Side Burner Lid (16) from Ceramic Side Burner Assembly (15) by pushing the Lid Axle left towards its spring and then lift right side of axle out first. Now insert Ceramic Side Burner Assembly into Ceramic Side Burner Shelf (14) from below, ensuring holes line up, and secure in place using 4 x Self Tapping Screw (packed with Side Burner Assembly).
- Page 26 GGH46SS STEP 15 Slide Ceramic Side Burner Drip Tray (19) underneath the Ceramic Side Burner Assembly ensuring it is level and supported on both runners. Unscrew the pre-installed bolts and feed the Side Burner Hose into opening on the Ceramic Side Burner Assembly, line up holes and re-install the bolts.
- Page 27 GGH46SS STEP 16 Attach Gas Connection Bracket to Side Panel (9) using Bolt (A). Now tighten the nut above the Gas Connection Bracket, this will help hold the hose in place when you attach the hose and regulator later. Note: The Gas Connection Bracket and Hose will be attached behind the Control Panel via cable tie, please cut the cable tie carefully to avoid damaging the components behind the Control Panel.
- Page 28 GGH46SS STEP 17 Pass spacers and bolts from separate bolt pack through Cabinet Doors (23) and screw into Door Handles. Insert Door Spindles (C) into Cabinet Base Panel (6). To fit Cabinet Doors (23) in place, first slide the hole on bottom of door over Door Spindle (C), depress spring-loaded catch on underside of Cooking Frame and position top of door until spring-loaded catch slides into top hole.
- Page 29 GGH46SS STEP 18 Attach Grease Cup Bracket (26) to underside of Grease Tray (25) using 2 x Bolt (A). Place Grease Cup (27) inside Grease Cup Bracket (26) and then slide underneath Cooking Frame ensuring it is level and on top of runners.
- Page 30 Cooking Frame. Leg tabs from bottom Grillstream Grills and Grillstream Gastro Grills should rest on lip at back of Cooking Frame with the logo tab at the front. Top Grillstream Grills should sit directly on top of the bottom Grills.
- Page 31 GGH46SS STEP 20 Insert 4 x AA Batteries (not supplied) into Battery Pack (31). Connect Battery Pack to LED Light Wire. Peel off plastic backing from sticky pad on the rear of the Battery Pack and affix to inside of Side Panel (9).
- Page 32 Attach Bottle Opener (29) through Cabinet Side Panel (8) using bolts and Bottle Opener Bracket (30) as shown. Hook Grillstream Fat Cup (28) over holes in Cabinet Side Panel (9). This should be located directly below the spout of Fat Channel (32) to catch fat and meat juices channelled from the Grillstream system.
- Page 33 GGH46SS STEP 22 Your Grillstream barbecue is now fully assembled and you are ready to connect the Gas Cylinder (see page 3 for more information). Please ensure you perform the gas leak check before operating. Page 33...
-
Page 34: Leak Test
GGH46SS TESTING YOUR BBQ TESTING FOR LEAKS - DO THIS BEFORE USING YOUR BBQ. Note - Do not test for gas leaks with an open flame. If you smell gas, turn off at the source. Before first use, at the beginning of each new season, or whenever a gas cylinder is changed, you must check for gas leaks. - Page 36 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Grillstream Barbecues Part of the LeisureGrow Group Dewmead Farm, New Inn Road, Hinxworth, Hertfordshire SG7 5HG, United Kingdom. Tel: +44 (0)1462 744500 E-mail:salessupport@leisuregrow.com...
