Grillstream GCO40MK Manual

Grillstream GCO40MK Manual

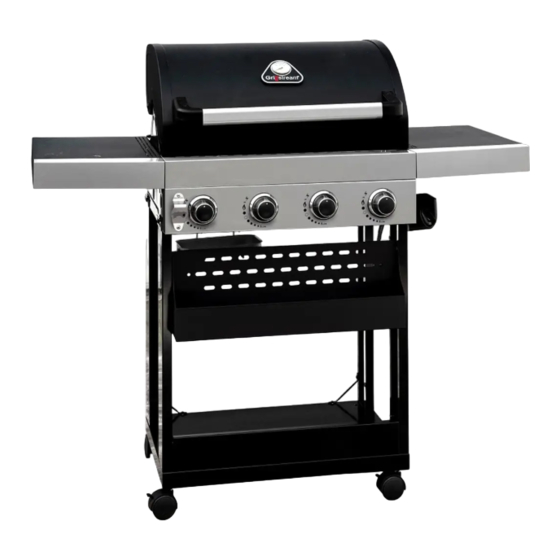

Compact 4 burner barbecue

Advertisement

Quick Links

WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY
Please read these instructions carefully and ensure that your barbecue is properly installed, assembled,
maintained and serviced in accordance with these instructions.
Failure to follow these instructions may result in serious injury and/or damage to property.
Necessary Tools
Please check the pack contents before attempting to assemble this product. A full checklist of
components is given in this leaflet. If any components are missing, please contact the retailer
from whom you bought this product.
This product takes approximately 35 MINUTES
to assemble with 2 PEOPLE. The fittings pack
contains SMALL ITEMS which should be KEPT
AWAY FROM YOUNG CHILDREN. Read this
leaflet in full before commencing assembly.
Compact 4 Burner Barbecue
GCO40MK
x 44
x 12
x 4
x 2
x 44
x 12
Carbon Monoxide Hazard
Using a barbecue inside can kill you,
it gives off Carbon Monoxide, which has no odour.
Never use a barbecue in enclosed spaces such as
a tent, home/building, vehicle or garage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCO40MK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grillstream GCO40MK

  • Page 1 Compact 4 Burner Barbecue GCO40MK x 44 x 44 x 12 x 12 WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY Please read these instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance with these instructions.
  • Page 2: Table Of Contents

    GCO40MK Contents Warning Information Page Location of your BBQ Page Connecting to the gas cylinder Page The hose and regulator assembly Page Testing for leaks Page Gas cylinder safety Page What is Propane Page Are all gas bottle gases the same...
  • Page 3: Warning Information

    GCO40MK CONNECTING THE GAS CYLINDER WARNING INFORMATION There are two different types of gas that can be used on your gas BBQ - Read this Operating Manual before use depending on where you live, that being either butane or propane gas.
  • Page 4: Testing For Leaks

    GCO40MK SECURING THE HOSE AND REGULATOR ASSEMBLY WHAT IS PROPANE Type A) Screw on hose connection (Fig. 4) It is a fuel gas compressed until it turns to liquid, then stored in a bottle - The BBQ’s manifold connection is 1/4” Male Thread BSP or cylinder under pressure for easy transport.
  • Page 5: Lighting Your Bbq

    • off position and wait five minutes for any accumulated gas to clear out of the BBQ before repeating procedure. Grillstream Grills fit directly on top of each other - do not offset them. LIGHTING YOUR BBQ (cont.) lo position is obtained by turning the knob fully anti-clockwise...
  • Page 6: Hybrid System

    DIRECTIONS FOR USE - GAS: Your charcoal should now be lit and making the tell-tale popping and The beauty of the Grillstream Hybrid System is that there is no cracking sounds that indicate this. You should now turn off the burners additional assembly or conversion process required, whether you want completely and close your Barbecue Hood.
  • Page 7: Maintenance Of Your Bbq

    To clean the Grills effectively use the Grillstream cleaning brush which has been specially designed to quickly and effectively clean your Grillstream Grills. Rinse off with clean water and dry before returning to BBQ.
  • Page 8: Troubleshooting

    GCO40MK TROUBLESHOOTING A note on fire prevention: Most fires in outdoor BBQs are caused by a build up of greases and fat, IF BBQ FAILS TO OPERATE PROPERLY or gas connections which have not been secured properly. Remember - Stop, turn off gas at its source and turn all burner controls to • off to follow the manufacturer’s instructions on proper cleaning and...
  • Page 9: Exploded Diagram

    GCO40MK Page 9...
  • Page 10: Parts List

    Grease Cup Bracket Cooking Frame Grease Cup Castor Hybrid Flame Tamer Trolley Base Panel Fat Channel Trolley Leg Grillstream Grill - 195mm Front Support Bar Warming Rack Condiment Rack Grillstream Fat Cup Corner Support Bracket Bottle Opener Side Shelf - Right...
  • Page 11: Fittings List

    44 GCO40MK x 12 x 12 x 44 x 12 x 12 FITTINGS x 44 Part Part Part Part x 12 x 44 x 12 M4x12 Bolt M6x12 Bolt Washer M4x12 SS Bolt Make sure your grill is assembled properly. Detailed assembly instructions are packed with each grill giving specific assembly procedures for each model.
  • Page 12: Assembly Instructions

    GCO40MK STEP 1 Push each of the Castors (5) into indicated holes in underside of Trolley Base Panel (6) until you hear a click. Page 12...
  • Page 13 GCO40MK STEP 2 Secure Trolley Leg (7) to front-left side of Trolley Base Panel (6) using Bolts (B). Repeat for back-left side. Part M6x12 Bolt Page 13...
  • Page 14 GCO40MK STEP 3 Secure Trolley Leg (7) to front-right side of Trolley Base Panel (6) using Bolts (B). Repeat for back-right side. Part M6x12 Bolt Page 14...
  • Page 15 GCO40MK STEP 4 Insert Front Support Bar (8) and secure to Trolley Base Panel (6) and Trolley Legs (7) with Bolts (B). Part M6x12 Bolt Page 15...
  • Page 16 GCO40MK STEP 5 Attach Corner Support Bars (10) to Trolley Base Panel (6) and Trolley Legs (7) with Bolts (B). Part M6x12 Bolt Page 16...
  • Page 17 GCO40MK STEP 6 Part tighten Bolts (B) into holes indicated on the front two Trolley Legs (7) and slide Condiment Rack (9) into place. Now fully tighten Bolts (B) to secure it. Part M6x12 Bolt Page 17...
  • Page 18 GCO40MK STEP 7 Carefully lower Cooking Frame (4) onto trolley, ensuring fixing lugs are on the outside and that no wires or hoses are trapped between cooking frame and cabinet. Page 18...
  • Page 19 GCO40MK STEP 8 Secure cooking frame to Trolley Legs (7) using Bolts (B). Part M6x12 Bolt Page 19...
  • Page 20 GCO40MK STEP 9 Attach Side Shelf - Right (11) to right-hand side of Cooking Frame (4) from the inside using Bolts (B) and Washers (C). Note: Washers (C) are domed and bottom of dome should be facing the cooking frame. Now further secure Side Shelf - Right (11) from the outside using Bolts (B).
  • Page 21 GCO40MK STEP 10 Attach Side Shelf - Left (12) to left-hand side of Cooking Frame (4) from the inside using Bolts (B) and Washers (C). Note: Washers (C) are domed and bottom of dome should be facing the cooking frame. Now further secure Side Shelf - Left (12) from the outside using Bolts (B). All bolts should be left loose to allow you to line up the holes easier, before tightening once Side Shelf is in place.
  • Page 22 Attach Bottle Opener (21) to front of Control Panel using Bolts (D). Hook Grillstream Fat Cup (20) over holes in Cooking Frame (4). This should be located directly below the spout of Fat Channel (17) to catch fat and meat juices channelled from the Grillstream system.
  • Page 23 GCO40MK STEP 12 Attach Grease Cup Bracket (14) to underside of Grease Tray (13) using Bolts (A). Place Grease Cup (15) inside Grease Cup Bracket (14) and then slide underneath Cooking Frame ensuring it is level and on top of runners.
  • Page 24 GCO40MK STEP 13 Attach Gas Connection Bracket to rear side of Condiment Rack (9) using Bolt (A). Note: The Gas Connection Bracket and Hose will be attached behind the Control Panel via cable tie(s), please cut the cable tie(s) carefully to avoid damaging the components behind the Control Panel.
  • Page 25 Place Grillstream Grills (18) into Cooking Frame. Leg tabs from bottom Grillstream Grills and Grillstream Gastro Grills should rest on lip at back of Cooking Frame with the logo tab at the front. Top Grillstream Grills should sit directly on top of the bottom Grills.
  • Page 26 GCO40MK STEP 15 Your Grillstream barbecue is now fully assembled and you are ready to connect the Gas Cylinder (see page 3 for more information). Please ensure you perform the gas leak check before operating. Page 26...
  • Page 27: Leak Test

    GCO40MK TESTING YOUR BBQ TESTING FOR LEAKS - DO THIS BEFORE USING YOUR BBQ. Note - Do not test for gas leaks with an open flame. If you smell gas, turn off at the source. Before first use, at the beginning of each new season, or whenever a gas cylinder is changed, you must check for gas leaks.
  • Page 28 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Grillstream Barbecues Part of the LeisureGrow Group Dewmead Farm, New Inn Road, Hinxworth, Hertfordshire SG7 5HG, United Kingdom. Tel: +44 (0)1462 744500 E-mail: salessupport@leisuregrow.com...
