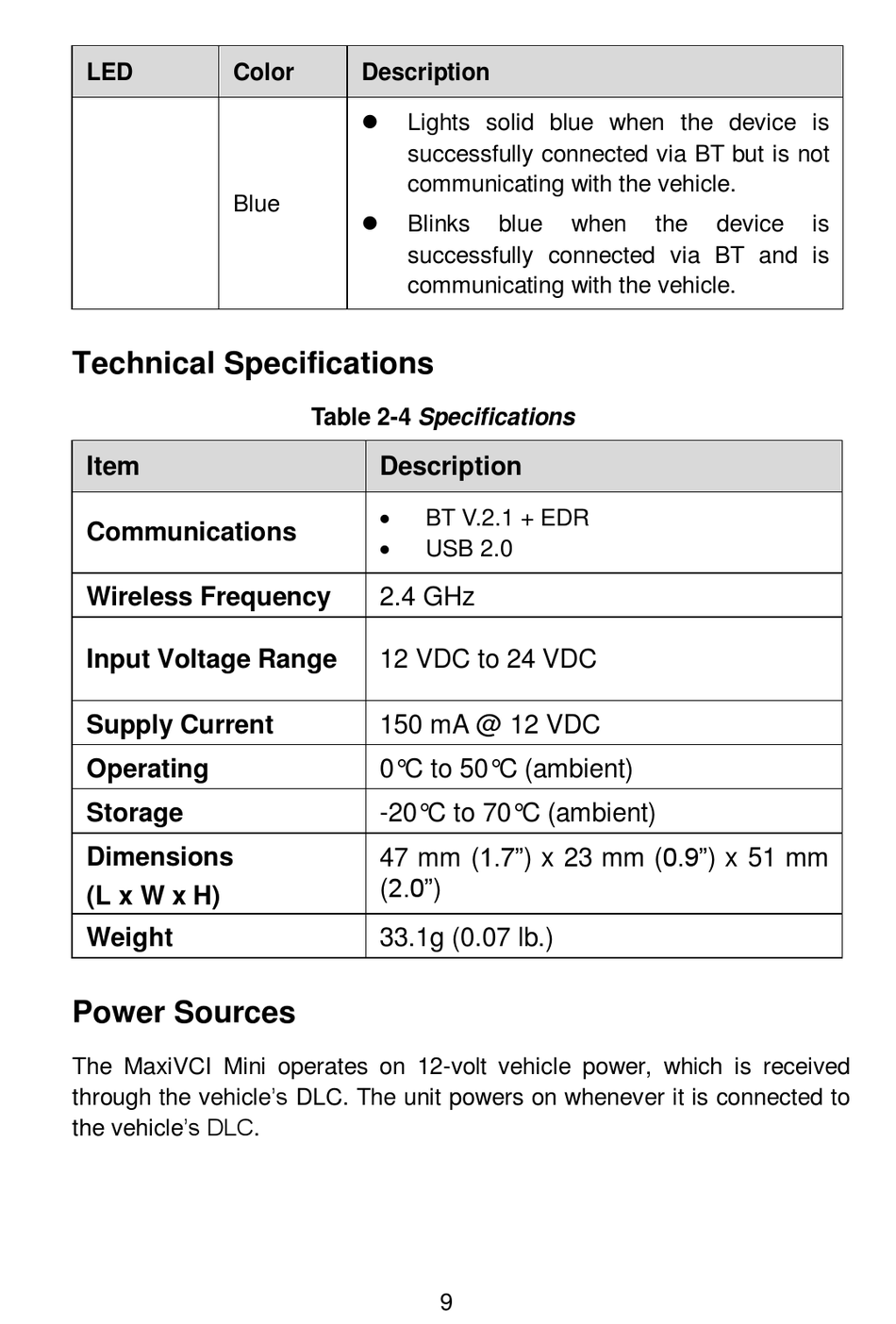

Autel MaxiCOM MK808TS Manual page 16

LED Color
Blue
Technical Specifications
Item
Communications
Wireless Frequency
Input Voltage Range
Supply Current
Operating
Temperature
Storage
Temperature
Dimensions
(L x W x H)
Weight
Power Sources
The MaxiVCI Mini operates on 12-volt vehicle power, which is received
through the vehicle's DLC. The unit powers on whenever it is connected to
the vehicle's DLC.
Description

Lights solid blue when the device is
successfully connected via BT but is not
communicating with the vehicle.

Blinks
successfully connected via BT and is
communicating with the vehicle.
Table 2-4 Specifications
Description

BT V.2.1 + EDR

USB 2.0
2.4 GHz
12 VDC to 24 VDC
150 mA @ 12 VDC
0° C to 50° C (ambient)
-20° C to 70° C (ambient)
47 mm (1.7") x 23 mm (0.9") x 51 mm
(2.0")
33.1g (0.07 lb.)
9
blue when the device is
