Trademarks
®
Autel
,
MaxiSys
®
MaxiCheck
are trademarks of Autel Intelligent Technology Corp., Ltd., registered in
China, the United States and other countries. All other marks are trademarks or
registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or transmitted,
in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise without the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the latest
information available at the time of printing. Autel reserves the right to make changes at
any time without notice. While information of this manual has been carefully checked for
accuracy, no guarantee is given to the completeness and correctness of the contents,
including but not limited to the product specifications, functions, and illustrations.
Autel will not be liable for any direct damages or for any special, incidental, or indirect
damages or for any economic consequential damages (including the loss of profits).
IMPORTANT: Before operating or maintaining this unit, please read this manual carefully,
paying extra attention to the safety warnings and precautions.
For Services and Support:
pro.autel.com
www.autel.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-86147779 (China)
Support@autel.com
For technical assistance in all other markets, please contact your local selling agent.
®
®
,
MaxiDAS
,
®
MaxiScan
,
MaxiTPMS
i
®
,
MaxiRecorder
®
,
and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaxiCOM MK906 and is the answer not in the manual?

Questions and answers

Related Manuals for Autel MaxiCOM MK906

Summary of Contents for Autel MaxiCOM MK906

  • Page 1 Autel will not be liable for any direct damages or for any special, incidental, or indirect damages or for any economic consequential damages (including the loss of profits).
  • Page 2 Safety Instructions The safety messages herein cover situations Autel is aware of. Autel cannot know, evaluate or advise you as to all of the possible hazards. You must be certain that any condition or service procedure encountered does not jeopardize your personal safety.
  • Page 3 Do Not Turn the Volume Up Too Loud When Using Headphones Listening at high volumes that over-stimulate the ear for long periods of time may result in loss of hearing. SAFETY WARNINGS:  Always perform automotive testing in a safe environment. ...

  • Page 4: Table Of Contents

    Contents CHAPTER 1 USING THIS MANUAL ..............1 ....................1 ONVENTIONS CHAPTER 2 GENERAL INTRODUCTION ............... 3 COM MK906 D ..............3 ISPLAY ABLET ....................7 CCESSORY CHAPTER 3 GETTING STARTED ................9 ....................9 OWERING ..................13 OWERING ..............14 NSTALLING OMPUTER OFTWARE CHAPTER 4...
  • Page 5 ....................86 PERATIONS CHAPTER 9 SHOP MANAGER OPERATIONS ............90 ...................91 EHICLE ISTORY ................93 ORKSHOP NFORMATION ..................94 USTOMER ANAGER CHAPTER 10 UPDATE OPERATIONS ..............98 CHAPTER 11 SUPPORT OPERATIONS ..............100 11.1 ................100 RODUCT EGISTRATION 11.2 ................100 UPPORT CREEN AYOUT 11.3 ..................

  • Page 6: Chapter 1 Using This Manual

    Using This Manual Chapter 1 This manual contains device usage instructions. Some illustrations shown in this manual may contain modules and optional equipment that are not included in your system. Contact your sales representative for availability of other modules and optional tools or accessories. Conventions The following conventions are used.
  • Page 7 Tap the Camera button. The camera screen opens. Focus the image to be captured in the view finder. Tap the blue circle. The view finder now shows the captured picture and auto-saves the taken photo.

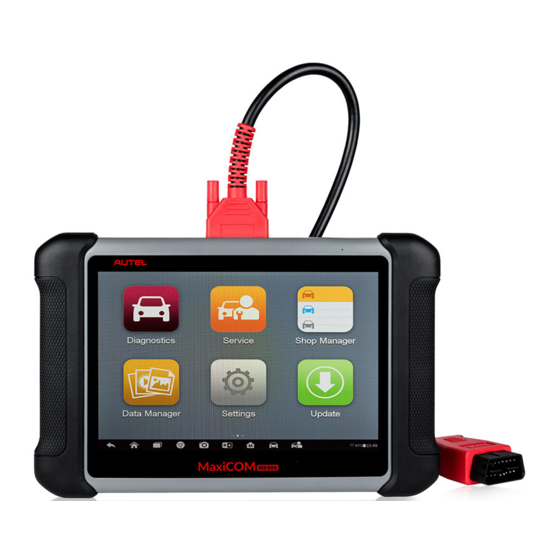

  • Page 8: Chapter 2 General Introduction

    ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), and an 8.0 inch LED capacitive touch screen, based on the Android multitasking operating system, and combined with the best possible coverage of OE-level diagnostics, the MaxiCOM MK906 is an ideal solution to manage your repair jobs smartly and conveniently with greater integration.
  • Page 9  Illuminates red when the Display Tablet is powered on and the battery level is below 15%. Blue:  Illuminates blue when the MaxiCOM system is fault. Figure 2-2 MaxiCOM MK906 Tablet Back View Camera Lens Camera Flash Collapsible Stand – extends from the back to allow hands-free viewing of...
  • Page 10 Figure 2-3 MaxiCOM MK906 Tablet Top View Mini SD Card Slot – holds the mini SD Card. Mini USB Port DC Power Supply Input Port – Connects the 12 volt power adapter to charge. DB15-Pin Port – connects the vehicle DLC cable.
  • Page 11 Vehicle Power The Display Tablet can be powered from the cigarette lighter or the DLC port on the test vehicle through a direct cable connection. Connect the display tablet with the test vehicle using the cigarette lighter or OBD II cable for power supply. 2.1.3 Technical Specifications Item Description...

  • Page 12: Accessory Kit

    270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm Dimensions ( W x H x D (1.4”) NW: 0.93 kg (2.05 lb.), Weight ISO 9142-2, ISO 14230-2, ISO 15765-4, K-Line, L- Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Protocols Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP...
  • Page 13 Honda-3 GM/Daewoo-12 Nissan-14 VW/Audi-2+2 Mitsubishi/ Benz-38 PSA-2 Fiat-3 Hyundai -12+16 2.2.3 Other Accessories AC/DC External Power Adapter Connects the Display Tablet to the external DC power port for power supply. Cigarette Lighter Provides power to the Display Tablet through connection to the vehicle’s cigarette lighter receptacle, as some non-OBD II vehicles cannot provide power via the DLC connection.

  • Page 14: Chapter 3 Getting Started

    Getting Started Chapter 3 Make sure the Display Tablet has sufficient battery level or is connected to the DC power supply (see Power Sources on page 5). Powering Up Press the Lock/Power button on the top right side of the Display Tablet to switch the unit on.
  • Page 15 Almost all operations on the Display Tablet are controlled through the touch screen. The touch screen navigation is menu driven, which allows you to quickly locate the test procedure, or data that you need, through a series of choices and questions. Detailed descriptions of the menu structures are found in the chapters for the various applications.
  • Page 16 Quick Link support and other information. See Quick Link Operations on page 111. Provides quick search for the supported Function functions and vehicles of Autel diagnostic Viewer tools. See Function Viewer on page 112 for details. 3.1.2 Locator and Navigation Buttons...
  • Page 17 Button Name Description Android Returns to Android System’s Home screen. Home Displays a list of applications that are Recent Apps currently working. To open an app, touch it. To remove an app, swipe it to the right. Browser Launches the Android built-in browser. Opens the camera with short press;...

  • Page 18: Powering Down

    By tapping on the bottom right corner, a Shortcuts Panel will be displayed, on which you are allowed to adjust various system settings of the tablet. Operations of each button on the panel are described in the table below: NOTE: The shortcuts buttons will be highlighted when enabled, and dimmed when disabled.

  • Page 19: Installing Computer Software

    In case of system crash, press and hold the Lock/Power button for 8 seconds to reboot the system. Installing Computer Software The MaxiCOM MK906 Diagnostic Platform allows you to print the information needed for your convenience. To realize the printing function, you need to install the printer driver program.
  • Page 20 computer network, either via Wi-Fi or LAN. See 8.1.3 Printing Setting on page 87 for more information. Run the MaxiSys Printer program on the computer to open up the printer interface. Click Test Print to make sure the printer is working successfully. Tap the Print button on the toolbar.

  • Page 21: Chapter 4 Diagnostics Operations

    (ECM) for various vehicle control systems, such as engine, transmission, antilock brake system (ABS), airbag system (SRS) and more. Establishing Vehicle Communication The Diagnostics operations require connecting the MaxiCOM MK906 diagnostic platform to the test vehicle using the main cable. 4.1.1 Vehicle Connection The method used to connect the Display Tablet to a vehicle’s DLC depends on...

  • Page 22: Getting Started

    Non-OBD II Vehicle Connection This type of connection requires both the main cable and a required OBD I adapter for the specific vehicle being serviced.  To connect to a Non-OBD II Vehicle Connect the main cable’s female adapter to the Vehicle Data Connector on the Display Tablet, and tighten the captive screws.
  • Page 23 Figure 4-1 Sample Vehicle Menu Screen Top Toolbar Buttons Manufacturer Buttons Top toolbar Buttons The operations of the Toolbar buttons at the top of the screen are listed and described in the table below: Table 4-1 Top Toolbar Buttons Button Name Description Home...

  • Page 24: Vehicle Identification

    Button Name Description Europe Displays the European vehicle menu. Asia Displays the Asian vehicle menu. Domestic Displays the Domestic vehicle menu. Tap this button to open the virtual keyboard, Search allowing you to manually enter the specific vehicle make required. Tap this button to exit the search screen, or Cancel cancel an operation.
  • Page 25 Tap the VIN Scan button on the top toolbar. Select Auto detect. Once the test vehicle is identified, the screen will display the vehicle VIN. Tap OK at the bottom right to confirm the vehicle VIN. If the VIN does not match with the test vehicle’s VIN, enter the VIN manually or tap Read to acquire VIN again.
  • Page 26 manually. 4.3.2 Manual VIN Input For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.  To perform Manual VIN Input Tap the Diagnostics application button from the MaxiCOM Job Menu. The Vehicle Menu displays. (Figure 4-1) Tap the VIN Scan button on the top toolbar.

  • Page 27: Navigation

    somewhat by various vehicles being serviced. 4.3.4 Alternative Vehicle Identification Occasionally, you may identify a test vehicle that the tester does not recognize; the database does not support, or has some unique characteristics that prevent it from communicating with the tester through the normal channels. In these instances, you are provided with the OBD direct entry, through which you can perform generic OBD II or EOBD tests.
  • Page 28 Diagnostics Toolbar The Diagnostics Toolbar contains a number of buttons such as print and save. The table below provides a brief description of the operations of the Diagnostics Toolbar buttons: Table 4-2 Diagnostics Toolbar Buttons Button Name Description Home Returns to the MaxiCOM Job Menu. Vehicle Exits the service session of the currently identified Swap...
  • Page 29 Button Name Description Tapping this button submits the Data Logging report Send to the technical center via the internet.  To print data in Diagnostics Tap the Diagnostics application button from the MaxiCOM Job Menu. The Print button on the diagnostic toolbar is available throughout the Diagnostics operations.
  • Page 30 Menu Title – displays the menu heading of the Main Section. Battery Icon – displays the vehicle’s voltage status. Main Section The Main Section of the screen varies depending on the stage of operations. The Main Section can display vehicle identification selections, the main menu, test data, messages, instructions and other diagnostic information.

  • Page 31: Diagnosis

    choices. As a selection is made, the next menu in the series displays. Each selection narrows the focus and leads to the desired test. Tap the screen to make menu selections. Diagnosis The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis or service.
  • Page 32 Navigation Bar Main Section Functional Buttons  Navigation Bar List Tab – displays the scanned data in list format. Tree Tab – displays the scanned data in system distribution diagram format. Progress Bar – indicates the test progress.  Main Section List Tab Column 1 - displays the system numbers.
  • Page 33 detected with fault present is shown in red font. Column 4 – to perform further diagnosis or testing on a specific system item, tap the ○ > button to the right of that item. A Function Menu screen will display. ...
  • Page 34 Figure 4-7 Sample Function Menu Screen The Function Menu options vary slightly for different vehicles. The function menu may include: ECU Information – provides the retrieved ECU information in detail. An  information screen opens upon selection. Read Codes – displays detailed information of DTC records retrieved ...
  • Page 35 Select the Diagnosis section. Locate the required system for testing by Auto Scan or through menu driven selections in Control Units. Select the desired test from the Function Menu. 4.5.1 ECU Information This function retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.
  • Page 36 Codes screen displays as below: Figure 4-9 Sample Read Codes Screen Diagnostics Toolbar Buttons – see Table 4-2 Diagnostics Toolbar Buttons on page 23 for detailed descriptions of the operations for each button. Main Section Code Column – displays the retrieved codes from the vehicle. ...
  • Page 37 A warning message displays to advise of data loss if this function is completed. Tap Yes to continue. A confirming screen displays when the operation is successfully done. Tap No to exit. Tap ESC on the confirming screen to exit Erase Codes. Perform the Read Codes function again to check if codes have been erased successfully.
  • Page 38 Check Box - tap the check box at the left side of the parameter name to make item selection. Tap the check box again to deselect the item. Drop-down Button – tapping the drop-down button at the right side of the parameter name to open a submenu, providing data display mode options.
  • Page 39 full screen. Digital Gauge Mode – displays the parameters in form of a digital gauge graph Full Screen Display – this option is only available in the waveform graph mode, and primarily used in Graph Merge status for data comparison. Under this mode, there are three control buttons available on the top right side of the screen.
  • Page 40 be configured in the Setting mode of Live Data. Freeze – displays the retrieved data in freeze frame mode. Previous Frame – displays previous frame of the freeze data.  Next Frame – advances to the next frame in the freeze data. ...
  • Page 41 Figure 4-11 Sample Setting Mode in Live Data There are four navigation buttons on top of the Setting mode screen. Range Button – displays the configuration screen to set the  threshold values, an upper limit and a lower limit, for triggering the buzzer alarm.
  • Page 42 Tap on the right side of the MAX button, and enter the required maximum value. Tap the ON/OFF button on the right side of the Buzzer Alarm button to turn it on or off. Tap Done to save the setting and return to the Live Data screen; or tap Cancel to exit without saving.
  • Page 43 ○ Tap the > button on the right of Duration bar and select a length of time. ○ Tap the > button on the right of Trigger Point bar and select a relative percentage of a record length to be reserved before the data recording start point.
  • Page 44 Figure 4-12 Sample Active Test Screen The functional buttons at the lower right corner of the Active Test screen manipulate the test signals. The operational instructions are displayed on the main section of the test screen. Simply follow the on-screen instructions and make appropriate selections to complete the tests.

  • Page 45: Service

    suggested limit value, you must adjust the vehicle condition to meet the requirement. The last part displays the instruction of how to use the functional button at the lower right corner of the screen to manipulate the teach-in operations. Figure 4-13 Sample Adaptation Operation Screen Read the information carefully and check the vehicle condition accordingly, when you are sure that the vehicle is ready to perform the adaptation, simply follow the instruction provided to make appropriate selections.
  • Page 46  EPB Service  ABS/SRS Services  SAS Calibration Service  DPF Regeneration Service 4.6.1 Function Descriptions This section describes the main functions for vehicle service: Oil Reset Service This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.

  • Page 47: Generic Obd Ii Operations

    procedure which is the DPF cleaning operation to clear the blockage through continuous burning of the particulate matter captured in the DPF filter. If the DPF light on the vehicle comes on and you successfully complete a DPF regeneration cycle, you will notice that the DPF light will automatically turn off. Generic OBD II Operations This option presents a quick way to check for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL), check monitor status prior to...
  • Page 48 Figure 4-14 Sample OBD II Diagnostic Menu ○ NOTE: Tapping the i button displayed beside the function name opens a bubble with additional function information. Select a function option to continue.  DTC & FFD  I/M Readiness  Live Data ...
  • Page 49 Figure 4-15 Sample DTC & FFD Screen  Stored Codes Stored codes are the current emission-related DTCs from the ECM of the vehicle. OBD II/EOBD Codes have a priority according to their emission severity, with higher priority codes overwriting lower priority codes. The priority of the code determines the illumination of the MIL and the codes erase procedure.
  • Page 50 cases, the top prioritized DTC is the one for which the freeze frame records are retained. Freeze frame data includes a “snapshot” of critical parameter values at the time the DTC is set.  Erase Codes This option is used to clear all emission-related diagnostic data such as, DTCs, freeze frame data and manufacturer-specific enhanced data from the vehicle’s ECM, and reset the I/M Readiness Monitor Status for all vehicle’s ECM.

  • Page 51: Exiting Diagnostics

    On-Board Monitor Use this option to view the results of On-Board Monitor tests. The tests are useful after servicing or after erasing a vehicle’s control module memory. Component Test This service enables bi-directional control of the ECM so that the diagnostic tool is able to transmit control commands to operate the vehicle systems.
  • Page 52 toolbar; or tap the Back button on the navigation bar at the bottom of the screen. Or Tap the Home button on the diagnostics toolbar to exit the application directly and go back to the MaxiCOM Job Menu. Now, the Diagnostics application is no longer communicating with the vehicle and it is safe to open other MaxiCOM applications, or exit the MaxiCOM Diagnostic System and return to the Android System’s Home screen.

  • Page 53: Chapter 5 Service Operations

    Service Operations Chapter 5 The Service section is specially designed to provide quick access to the vehicle systems for various scheduled service and maintenance tasks. The typical service operation screen is a series of menu driven executive commands. Follow on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions.
  • Page 54 emission inspection and vehicle check. All software screens shown in this manual are examples, actual test screens may vary for each vehicle being tested. Observe the menu headings and on- screen instructions to make correct selections.  To perform oil reset functions Tap the Service application button from the MaxiCOM Job Menu.
  • Page 55 Figure 5-2 Sample Oil Reset Service Screen 1 The available items will display in a table of three columns: CBS value, availability, and service counter. Figure 5-3 Sample Oil Reset Service Screen 2 Tap on the value and then tap the Reset button on the right bottom of the screen.

  • Page 56: Electronic Parking Brake (Epb) Service

    Only perform maintenance work when the vehicle is stationary and on level ground.  Ensure that the EPB control system is reactivated after the maintenance work has been completed. NOTE: Autel accepts no responsibility for any accident or injury arising from the...
  • Page 57 maintenance of the Electronic Parking Brake system.  To perform EPB functions Tap the Service application button from the MaxiCOM Job Menu. Tap EPB button. The vehicle manufacturer selection screen will display. Tap VIN Scan or the vehicle manufacturer to acquire vehicle VIN information and tap Yes to confirm.
  • Page 58 Figure 5-6 Sample EMF Start-up Screen 1 Tap Continue to proceed with this service function or the Back button at the bottom left to exit. Tap on completed action to continue. Figure 5-7 Sample EMF Start-up Screen 2 The following screen will display a message to advise that the fault memory of the parking brake control unit will be deleted.

  • Page 59: Parking Brake: Workshop Mode

    Figure 5-8 Sample EMF Start-up Screen 3 Follow the on-screen instructions to pull the parking brake button and wait for approximately three seconds until the parking brake is set. When the operation is successfully completed, a “Completed successfully” message will display on the screen, press OK to exit. Parking Brake: Workshop Mode This service is used to activate and deactivate the so-called installation position for the Automatic Hold brake.
  • Page 60 this section are examples. 2. The sub functions and actual test screens of the BMS vary by vehicle, please follow the on-screen instructions to make correct option selection. The vehicle may use either a sealed lead-acid battery or an AGM (Absorbed Glass Mat) battery.
  • Page 61 Tap Register Battery Replacement in the EPB function list. The list may vary by test vehicle. Figure 5-9 Sample BMS Function List Tap on the corresponding service you want to carry out. In this case, it is function 1 Display kilometer reading at last battery change and one before last.
  • Page 62 Figure 5-11 Sample BMS Screen 2 Check the battery capacity and the battery replacement information on the screen. Tap on the corresponding function (function one in our example) to return to the selection screen or press the function two to end the service function.
  • Page 63 Figure 5-13 Sample BMS Screen 4 Read carefully the information on the screen and scroll through list to view all functions. There are four functions listed: Enter battery replacement: Same capacity Enter battery replacement: Different capacity Enter battery replacement: Changing from the normal lead-acid battery (white housing) to AGM battery (black housing) Figure 5-14 Sample BMS Screen 5 End service function.
  • Page 64 Figure 5-15 Sample BMS Screen 6 Read carefully the information on the screen and tap Yes to continue. Follow the on-screen instructions to input the data matrix code of the newly installed battery which should be on the label of the battery. Tap OK to continue.

  • Page 65: Steering Angle Sensor (Sas) Service

    NOTE AUTEL accepts no responsibility for any accident or injury arising from servicing the SAS system. When interpreting DTCs retrieved from the vehicle, always follow the manufacturer’s recommendation for repair.
  • Page 66 All software screens shown in this manual are examples, actual test screens may vary for each test vehicle. Pay attention to the menu titles and on-screen instructions to make correct option selections. Before starting the procedure, make sure the vehicle has ESC button. Look for the button on dash.

  • Page 67: Diesel Particle Filter (Dpf) Service

    Ensure the steering wheel is in the central position and the front wheels are in the straight position. Then tap OK to proceed. Figure 5-19 Sample SAS Function Screen 1 When the operation is completed, the scan tool will display a confirmation message.
  • Page 68 The ECM monitors driving style and selects a suitable time to employ regeneration. Cars driven a lot at idling speed and low load will attempt to regenerate earlier than cars driven more with high load and speed. In order for regeneration to take place, a prolonged high exhaust temperature must be obtained.
  • Page 69 Figure 5-21 Sample DPF Service Function Menu 5.6.1 Starting Basic Inspection Quantity This function enables start fuel delivery matching. Tap Starting Basic Inspection Quantity from the service functions menu to enter the service screen. The tool communicates with the vehicle and reads the fault codes memory. Follow the on-screen instructions to finish this procedure.
  • Page 70 displays as below. Figure 5-23 Sample Enter New Value Screen After entering the value, tap OK to save the value to the tool. Tap ESC to exit the operation. NOTE: The data you input should be in the range given. If the input data is out of range, the tool will display a warning message “Permissible adjustment range exceeded.”...
  • Page 71 Figure 5-24 Sample Injection Rate Screen [1] Enter New Value for Adjustment From the Injection Rate menu, tap [1] and the screen displays as below. Figure 5-25 Sample Enter Value Screen NOTE: The data you input should be in given range. If the input data is out of range, the tool will display a warning message “Permissible adjustment range exceeded.”...
  • Page 72 When the injection volume adjustment is completed, select [3] and OK to store the new value in the control units; or select [4] and OK to retain the old value. 5.6.3 Injector Rate Adjustment This function is used to adjust the injector rate for individual cylinders. Tap Injection rate adjustment from the service functions menu.
  • Page 73 A series of instruction screens display for users to perform the particle filter regeneration step by step. Follow the onscreen instructions and tap OK button until the tool displays the regeneration status as below. Figure 5-27 Sample Regeneration Status Screen When the particle filter regeneration is complete, confirm to exit the display.
  • Page 74 During the regeneration phase and with the engine running, it can also occur that the display for “Regeneration active” jumps to “Regeneration not active”. This behavior can be seen exclusively with the vehicle stationary with the engine. 5.6.5 Particle Filter Test It is advisable to carry out a series of particle filter tests as a result of constant DPF regeneration, such as checking oil level, oil change interval for diesel contamination, swirl flaps, backpressure sensors and particle filter soot...

  • Page 75: Mmobilizer (Immo) Service

    Immobilizer (IMMO) Service An immobilizer is an anti-theft mechanism that prevents an automobile’s engine from starting unless the correct ignition key or other device is present. This device prevents thieves from starting the car by a method known as hot wiring. Most new vehicles have an immobilizer as standard equipment.
  • Page 76 Figure 5-30 Sample IMMO Note Screen Figure 5-31 Sample Program Key FOB Scree...

  • Page 77: Chapter 6 Data Manager Operations

    Data Manager Operations Chapter 6 The Data Manager application is used to store, print, and review the saved files. Most operations are controlled through the toolbar. Selecting the Data Manager application opens the file system menu. Different file types are sorted separately under different options, there are five types of information files to be viewed or played back.
  • Page 78 Figure 6-2 Sample Image Database Screen Toolbar Buttons – used to edit, print and delete the image files. See Table 6-1 Toolbar Buttons in JPG Database on page 73 for detailed information. Main Section – displays the stored images. Table 6-1 Toolbar Buttons in JPG Database Button Name Description...
  • Page 79 Please download the Maxi PC Suite from www.autel.com > Support & Updates > Firmware & Downloads > UPDATE CLIENT, and install to your PC. The Maxi PC Suite consists of Autel Printer, MaxiSys Pinter and PC Suite. Double click on Setup.exe item.
  • Page 80 Select Image to access the JPG database. Tap the Enter Edit button to display the editing toolbar. Select the images that need to be deleted by tapping the thumbnail images, the selected thumbnail displays a tick icon at the bottom right corner.
  • Page 81 Drop-down Toolbar – tap the button at the top center of the screen to open the Drop-down Toolbar. Main Section – displays the recorded data frames. Navigation Toolbar – controls data playback Use the Navigation Toolbar buttons to playback the record data from frame to frame.

  • Page 82: Chapter 7 Maxifix Operations

    MaxiFix Operations Chapter 7 The MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiCOM users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
  • Page 83 Navigation Menu, allowing you to switch between functions. The Navigation Menu –the main menu at the bottom of the screen, which provides you access to different sections of MaxiFix. The Header The Header at the top of the screen features: ...
  • Page 84 7.1.1 Terminology MaxiFix Tip A MaxiFix Tip provides practical information of real fix of a specific vehicle repair issue with detailed descriptions. It is combined with proven fix and vehicle specific data, and filed into an all-in-one information source to provide you with quick and easy repair solutions.

  • Page 85: Operations

    Complaint, Cause, Correction format. If you still can’t find the information you want, you can ask the MaxiFix community for help by clicking Ask on the Navigation Menu at the bottom of the screen. Adopted! The “Adopted!” icon that displays at the top right side of a Tip page indicates that the related Tip has been adopted by at least 1 technician in the community.
  • Page 86 7.2.1 Home Home is the first option on the Navigation Menu at the bottom of the screen. Tapping it opens your MaxiFix home page. There is a list of questions posted on the community, and you can scroll down the page to the bottom and view more questions by tapping View More.
  • Page 87 Marked Posts – opens a list with links to Tips and discussions that you  are actively participating in. My Profile – allows you to view your Autel account information including:  your Autel ID, personal information, MaxiFix score, phone number and...
  • Page 88 register time, and edit your portrait. Vehicle Preference –used to set up a list of preferred vehicles. The  preferred list allows you to limit the choices that displayed on the “Select Vehicle” list to specific years, and makes. Click Set Year or Set Make to set your preferred models.
  • Page 89 community members’ profile by clicking their portrait. Information included in your profile determines how you are presented to the community, and what type of information will be sent to you from the community. 7.2.5 My Messages My Messages, the fifth option on the Navigation Menu at the bottom of the screen, shows a list of message notification which is relevant to your activities in the Question section.
  • Page 90 will help the other MaxiFix members to find useful information for practical fix. To close a question, you need to select the question’s response message from the message list on “My Messages” page first, then tap Adopted Answer and select “Close Question”. Tap the Cancel button to cancel your submission and return to My Messages page.

  • Page 91: Chapter 8 Settings Operations

    Settings Operations Chapter 8 Tap the Settings button to adjust the default setting and view information about the MaxiCOM system. There are seven options available for the MaxiCOM system settings:  Unit  Language  Printing Setting  Notification Center ...
  • Page 92 Tap the Settings application on the MaxiCOM Job Menu. Tap the Language option on the left column. Select the appropriate language. A check will display to the right of the selected language. Tap the Home button on the top left corner to return to the MaxiCOM Job Menu.
  • Page 93 If the function is enabled the button turns blue, or if disabled the button turns gray. Tap the Home button on the top left corner to return to the MaxiCOM Job Menu or choose another setting to adjust. When the Notification Center function is turned on, and new messages are received by the MaxiCOM device, a notification message displays on the MaxiCOM Job Menu.
  • Page 94  Tap a specific app shortcut button to access selected application screen.  Long press a specific app shortcut button to display the app menu. The shortcut can be altered here.  Press and drag the App Switcher icon to alter the icon position on the screen.

  • Page 95: Shop Manager Operations

    Shop Manager Operations Chapter 9 The Shop Manager application manages the workshop information, customer information records, and test vehicle history records. There are three main functions available:  Vehicle History  Workshop Information  Customer Manager The operations of these functions of the Shop Manager application are mainly manipulated by the toolbar buttons, which are listed and described in the table below: Table 9-1 Top Toolbar Buttons in Shop Manager Button...

  • Page 96: Vehicle History

    Button Name Description Done Completes editing and saves the file. Vehicle History This function stores test vehicle history records, including vehicle information and the retrieved DTCs from previous diagnostic sessions. All information is displayed in summarized details. Tap on a record to resume a diagnostic session on a “stored vehicle”.
  • Page 97 9.1.1 Historical Test Record The Historical Test record sheet is a detailed data form that includes general vehicle information such as vehicle year, make and model. The form also includes retrieved DTC from previous test and all information manually inputted by the technician.

  • Page 98: Workshop Information

    automatically associate the other item in the record sheet, provided that the later one exists. Tap Add to Customer to supplement the Historical Test record sheet to an existing customer account, or add a new associated account with the test vehicle record. See Customer Manager on page 94 for more information.

  • Page 99: Customer Manager

    Tap Done to save the updated workshop information sheet, or tap Cancel to exit without saving. Customer Manager Use the Customer Manager function to create and edit customer accounts and correlate with the associated test vehicle history records.  To create a customer account Tap the Shop Manager application on the MaxiCOM Job Menu.
  • Page 100  To delete a customer account Tap the Shop Manager application on the MaxiCOM Job Menu. Select Customer Manager. Select a customer account by tapping the corresponding name card. A Customer Information sheet displays. Tap the Edit button on the top toolbar to start editing. Tap the Delete Customer Information button.
  • Page 101 Figure 9-4 Sample History Notes Screen Functional Buttons – navigates and makes various controls of the function. Main Section – displays the note list on the left column and the detail information of the selected note on the right column. Table 9-2 Function Buttons in History Notes Button Name...
  • Page 102 Button Name Description Opens the image file for selection, and adds Add Photos the selected photos to History Notes. Records a video and adds the file to History Take a Video Notes. Takes photos and adds the files to History Take a Photo Notes.

  • Page 103: Chapter 10 Update Operations

    Update Operations Chapter 10 The internal programming of the MaxiCOM Diagnostic System can be updated through the Update application. The updates improve the MaxiCOM applications’ capabilities, typically by adding new tests, new models, or enhanced applications to the database. The display device automatically searches for available updates for all of the MaxiCOM components when it is connected to the internet.
  • Page 104 Left Column – displays vehicle buttons and update software version  information; tap the About button to display a function list with additional software update details. Middle Column – displays a brief introduction about the new changes to the  ○...

  • Page 105: Chapter 11 Support Operations

    On the Sign In page, input your account ID and other information to log in. If you are a new member to Autel and do not have an account, click the Create Autel ID button on the left side. Enter the required information in the input fields, read through Autel’s Terms and Conditions and tick on Agree, and then click Create Autel ID at the bottom to continue.

  • Page 106: My Account

    top navigation bar, operation of each is described below in turn from left to right: Home Button – returns to the MaxiCOM Job Menu.  Back – returns to the previous screen, each press takes you back one  step. Forward –...

  • Page 107: User Complaint

     User Info - displays detailed information of your registered on-line Autel account, such as your Autel ID, Name, Address and other contact information, etc. Device Info – displays the registered product information, including the  Serial Number, Registration Date, Expire Date, and Warranty Period.
  • Page 108 Option Bar Period Filter – displays only the complaint records within the defined  period on the list. Status Filter – displays the corresponding complaint records  according to the selected case status. New Complaint Button – starts a new complaint case. ...

  • Page 109: Data Logging

    Select the required processing time on the last section according to the urgency of the case. Tap Submit to send the completed form to Autel’s online service center, or tap Reset to refill it. The submitted complaints will be carefully read and handled by the service personnel, and the respond speed may depend on the processing time you’ve required.

  • Page 110: Communities

    The Communities section launches and synchronizes with the Technical Forums on Autel’s official website www.autel.com, where you are allowed to discuss technical topics or share information with, as well as ask for technical advices or offer technical supports to all other members in Autel’s online support communities.
  • Page 111 Figure 11-4 Sample Communities Home Screen  To start a discussion Tap Start a discussion on the Communities Home screen. A list of the major forums is displayed. Select the appropriate device heading. For example, if you are going to ask a question about the MaxiCOM tablet, tap MaxiCOM to start a discussion.

  • Page 112: Training Channels

    Enter your comment in the input field, and tap OK to submit your post. 11.7 Training Channels The Training section provides quick links to Autel’s online video accounts. Select a video channel by the language to see all the available online tutorial videos from Autel for various technical supports, such as product usage techniques and vehicle diagnostics practice.

  • Page 113: Chapter 12 Academy Operations

    Academy Operations Chapter 12 Autel provides various tutorial articles and technical bulletins produced by top-notch technicians and product experts. Please view the materials that are saved on the tablet or view technical articles from our online forum by clicking the links displayed under this application.

  • Page 114: Chapter 13 Remote Desk Operations

    You can use the application to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.
  • Page 115 TeamViewer interface displays and the device ID is generated and shown. Your partner must install the Remote Control software to his/her computer by downloading the TeamViewer full version program online (http://www.teamviewer.com), and then start the software on his/her computer at the same time, in order to provide support and take control of the Display Tablet remotely.

  • Page 116: Chapter 14 Quick Link Operations

    Quick Link Operations Chapter 14 The Quick Link application provides convenient access to Autel’s official website and to additional in automotive service sites. Figure 14-1 Sample Quick Link Screen  To open a quick link Tap the Quick Link application on the MaxiCOM Job Menu. The Quick Link application screen displays.

  • Page 117: Chapter 15 Function Viewer

    Function Viewer Chapter 15 The Function Viewer allows you to search the functions supported by our tools and the software version information. There are two ways of searching, either by searching the tool and the vehicle or searching the functions. ...
  • Page 118  Search by the functions Tap the Function Viewer application on the MaxiCOM Job Menu. The Function Viewer application screen displays. Tap the tool name on the top left to drop down the tool list, tap the one you want to search.

  • Page 119: Chapter 16 Maintenance And Service

    Maintenance and Service Chapter 16 To ensure that the MaxiCOM diagnostic tablet performs at its optimum level, we advise that the product maintenance instructions covered in this section is read and followed. 16.1 Maintenance Instructions Follow these guidelines to maintain your tool and ensure its optimum performance.

  • Page 120: Troubleshooting Checklist

     Your device may have not been connected to the charger properly. Check the connector. NOTE: If your problems persist, please contact Autel’s technical support personnel or your local selling agent. 16.3 About Battery Usage Your tablet is powered by a built-in Lithium-ion Polymer battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your tablet’s autonomy due to the...

  • Page 121: Service Procedures

     Do not use a damaged battery charger.  Do not disassemble or open crush, bend or deform, puncture or shred.  Do not modify or remanufacture, attempt to insert foreign objects into the battery, expose to fire, explosion or other hazard. ...
  • Page 122  Email: support@autel.com  Address: 6th-10th floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen, 518055, China AUTEL NORTH AMERICA  Phone: 855-AUTEL-US (855-288-3587) Monday-Friday 9am-6pm EST  Website: www.autel.com  Email: ussupport@autel.com  Address: Suite 200, 175 Central Avenue, Farmingdale, New York, USA.
  • Page 123 The following information must be included:  Contact name  Return address  Telephone number  Product name  Complete description of the problem  Proof-of-purchase for warranty repairs ...

  • Page 124: Chapter 17 Compliance Information

    Compliance Information Chapter 17 FCC Compliance FCC ID: WQ8MAXISYSMY906 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 125: Chapter 18 Warranty

    12-Month Limited Warranty Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail purchaser of this MaxiCOM MK906 Diagnostic Device, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in...
