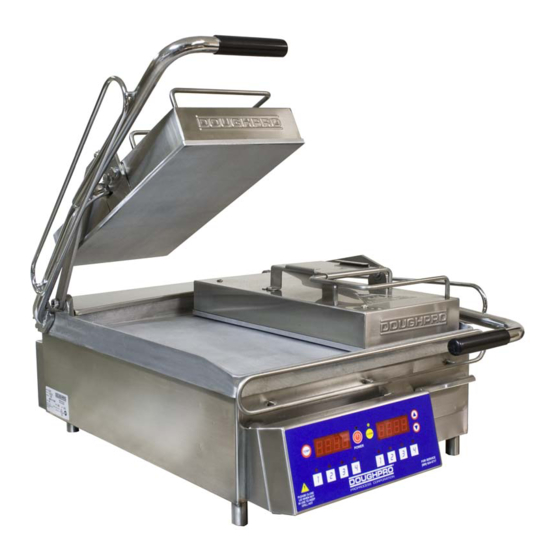

- Page 1 Operations Manual Model: SL1577W Split Lid Grill w/ Waffle Pattern formerly DOUGHPRO. New Name. Same Quality. Superior Service. proluxe.com rev8-71713...
-
Page 2: Cleaning Instructions
Operation Instructions Please read carefully before attempting to use this appliance. Step 1. Carefully unpack and clean grill plates with mild soap then sponge clean with cold water. Step. 2. Place in location where it will be used allowing for clearances per the dimensions indicated. -
Page 3: Clean Cycle
Clean Cycle 275°F is the factory default temp for the CLEAN cycle. To change the CLEAN cycle temp, simultaneously hold down the TEMP and CLEAN buttons for 15 seconds. The current temp setting will display on the right digital display only. Using the up or down arrows to adjust to the desired temp. To start a clean cycle, push CLEAN button once so the CLEAN LED light is turned on. - Page 4 SL1577 Operating Instructions: 1. Press desired time to start the time cycle. After the cycle is finished, press it again to reset the time cycle HOW TO FIND TEMPERATURE 1. To find the temperature of the UPPER PLATENS: Press the TEMPERATURE button and the ARROW UP button at the same time. 2.
- Page 5 Instruction’s for Adjusting the Temperature PRESS and hold the TEMP and ARROW up buttons simultaneously for 15 seconds. The current temperature setting will display on the right digital display only. Using the ARROW buttons, you may now adjust the temperature to your desired setting.
- Page 6 DOUGHPRO SL1577 Split Lid Grill Trouble Shooting Guide Symptom Probable Cause Action to be Taken Parts List Ref. # Power Button on Control face is Power Cord is not plugged in. Plug power cord into wall 's depressed but doesn’t turn on. receptacle and depress power button on controller Circuit Breaker is tripped off in the...
- Page 7 DOUGHPRO SL1577 Split Lid Grill Trouble Shooting Guide Symptom Probable Cause Action to be Taken Parts List Ref. # Either Heater Platen is not Heating If the Mechanical Relay (s) on the coil Replace Mechanical Relay. # 15 but the Digital Controller is on and side are receiving 12vdc indicates the appears to be functioning.
- Page 8 EXPSL1577W R1 30000 110915 PAGE 1 OF 3...
- Page 9 EXPSL1577W R1 30000 110915 PAGE 2 OF 3...
- Page 10 EXPSL1577W R1 30000 110915 PAGE 3 OF 3...
- Page 11 PART LIST FOR THE SL1577W MODEL ITEM # DESCRIPTION QTY. SL1577WA 120 V LOWER WRAP AROUND SHROUD ASSEMBLY 110115501 LOWER PLATEN INSULATION 110115542 COVER, LOWER PLATEN ASSEMBLY 110115506 SCREW, SET 5/16-18 X 1/2 SST5161812 SCREW, SET 3/8-16 X1-3/4 SST3816134 GREEN INSULATION WASHER C4401 HEX NUT 3/8-16 NH3816...
- Page 12 PART LIST FOR THE SL1577W MODEL ITEM # DESCRIPTION QTY. SL1577WA 120 V UPPER LEVELING BRACKET 110115510 UPPERLEVELING SHIM 110115557 PIN, PIVOT FRONT 11017088865 BOLT, HEX 5/16-18 X 1 STAINLESS STEEL BH516181S WASHER, CUT 5/16 WC516 SHROUD, LEFT ASSEMBLY 11016546454 SHROUD, RIGHT ASSEMBLY 11016546455 SCREW, PAN HEAD PHILLIPS 10-24X3/8 STAINLESS STEEL...
- Page 14 Such repair or replacement will be at the expense of Proluxe on under the normal one year warranty.
-
Page 15: Warranty And Return Policy
Exclusions: 1. WOOD / GAS FIRED OVENS: PROLUXE warranty applies to the main body of the oven being steel / refractory and insulation shall be free from defects in materials and workmanship for a period of four years from the date of purchase. The gas equipment shall be free from defects in materials and workmanship for a period of one (1) year from the date of purchase.
