Operations Manual
Model: SL1577HDA

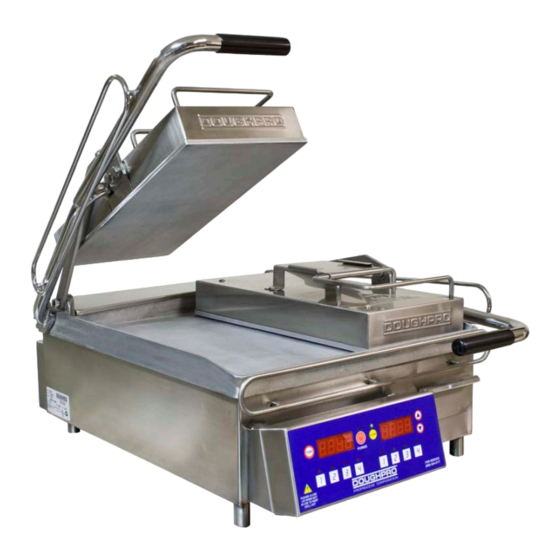

Split Lid Grill
formerly DOUGHPRO. New Name. Same Quality. Superior Service.
proluxe.com
revG-11717

Advertisement

loading
Need help?

Need help?

Do you have a question about the SL1577HDA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Proluxe SL1577HDA

Summary of Contents for Proluxe SL1577HDA

  • Page 1 Operations Manual Model: SL1577HDA Split Lid Grill formerly DOUGHPRO. New Name. Same Quality. Superior Service. proluxe.com revG-11717...

  • Page 2: Cleaning Instructions

    Operation Instructions Please read carefully before attempting to use this appliance. Step 1. Carefully unpack and clean grill plates with mild soap then sponge clean with cold water. Step. 2. Place in location where it will be used allowing for clearances per the dimensions indicated.

  • Page 3: Clean Cycle

    Clean Cycle 275°F is the factory default temp for the CLEAN cycle. To change the CLEAN cycle temp, simultaneously hold down the TEMP and CLEAN buttons for 15 seconds. The current temp setting will display on the right digital display only. Using the up or down arrows to adjust to the desired temp. To start a clean cycle, push CLEAN button once so the CLEAN LED light is turned on.
  • Page 4 SL1577 Operating Instructions: 1. Press desired time to start the time cycle. After the cycle is finished, press it again to reset the time cycle HOW TO FIND TEMPERATURE 1. To find the temperature of the UPPER PLATENS: Press the TEMPERATURE button and the ARROW UP button at the same time. 2.
  • Page 5 Instruction’s for Adjusting the Temperature PRESS and hold the TEMP and ARROW up buttons simultaneously for 15 seconds. The current temperature setting will display on the right digital display only. Using the ARROW buttons, you may now adjust the temperature to your desired setting.
  • Page 6 DOUGHPRO SL1577 Split Lid Grill Trouble Shooting Guide Symptom Probable Cause Action to be Taken Parts List Ref. # Power Button on Control face is Power Cord is not plugged in. Plug power cord into wall 's depressed but doesn’t turn on. receptacle and depress power button on controller Circuit Breaker is tripped off in the...
  • Page 7 DOUGHPRO SL1577 Split Lid Grill Trouble Shooting Guide Symptom Probable Cause Action to be Taken Parts List Ref. # Either Heater Platen is not Heating If the Mechanical Relay (s) on the coil Replace Mechanical Relay. # 15 but the Digital Controller is on and side are receiving 12vdc indicates the appears to be functioning.
  • Page 8 58 4X 65 12X SL1577HDA 68 2X 01/23/19 44 2X 77 2X LEFT UPPER PLATEN ASSY SHEET 4 18 2X 23 2X 29 2X 24 2X LOWER PLATEN ASSY SHEET 3 41 8X 27 2X 76 4X 33 4X 72 4X...
  • Page 9 6X 62 6X 49 73 6X 3X 34 DETAIL A DETAIL C 57 4X DETAIL B EXPSL1577HDA RM 012319 CUSTOMER MANUAL SHEET 2 OF 4...
  • Page 10 50 4X 53 12X 66 4X DETAIL H EXPSL1577HDA RM 012319 CUSTOMER MANUAL SHEET 3 OF 4...
  • Page 11 71 3X 54 3X 52 3X 78 2X 78 2X EXPSL1577HDA RM 012319 CUSTOMER MANUAL SHEET 4 OF 4...
  • Page 12 PARTS LIST FOR MODEL SL1577HDA SL1577HDA          120V ITEM NO. DESCRIPTION LOWER WRAP AROUND SHROUD ASSEMBLY 110115501 INSULATION,UPPER 7" X 15" LEFT AND RIGHT 110888251 LOWER PLATEN INSULATION 110115542 CLEVIS ASSY LEFT HAND 110115503 CLEVIS ASSY RIGHT HAND 110115504 SHROUD, LEFT ASSY 11016546454 SHROUD, RIGHT ASSY 11016546455 STOP, HEX PIN 11018344037 COVER, BOTTOM ASSY 110115570 COVER, LOWER PLATEN INSULATION 110115506 COVER, BACK 110115562 INSTRUMENT HOUSING ASSEMBLY 110115511 GREASE TRAY ASSEMBLY 110115505 WIRE HARNESS SL1577 1101102050 TUBING‐PAD 110115531 HANDLE LEFT ASSEMBLY 110115522 HANDLE RIGHT ASSEMBLY 110115521 HANDLE SPRING ADJUSTING COLLAR 110115528 SPRING  TORSION LH...
  • Page 13 PARTS LIST FOR MODEL SL1577HDA STRAIN RELIEF  1106546468 WASHER, INTERNAL TOOTH LOCK #6 WLIT6 WASHER, LOCK 3/8 WL38 WASHER, .311 OD X .150 ID X .20 THK 311150019 WASHER, CUT 5/16 WC516 WASHER, SAE 3/8" WSAE38 WASHER, 5/16" SPLIT LOCK WL516 WASHER, LOCK INTERNAL TOOTH 5/16" WLIT516 WASHER, INTERNAL TOOTH LOCK #8 WLIT8 WASHER, SAE #8 WSAE8 SCREW, PAN HEAD PHILLIPS 8‐32X 3/8 SS SP83238S SCREW, PHILLIPS PAN HEAD 8‐32 X 3/8 SP83238 SCREW, SET 3/8‐16 X 1/2 SST381612 SCREW, PAN HEAD 8‐32 X 1 SP8321 SCREW, PAN HEAD PHILLIPS 8‐32 X 1/2 SP83212 SCREW, PHILLIPS PAN 2‐56x1/4 SP25614 SCREW, PAN HEAD PHILLIPS 6‐32 X 3/8 SP63238 SCREW, SET KNURLED CUP POINT 5/16‐18X3/8 SST5161838KN SCREW, SET 3/8‐16 X 1‐1/2 SST3816112 SCREW, PAN HEAD PHILLIPS 6‐32 X 5/8 SP63258 SCREW, PAN HEAD PHILLIPS 8‐32 X 1‐1/2 SS...
  • Page 15 Such repair or replacement will be at the expense of Proluxe on under the normal one year warranty.

  • Page 16: Warranty And Return Policy

    Exclusions: 1. WOOD / GAS FIRED OVENS: PROLUXE warranty applies to the main body of the oven being steel / refractory and insulation shall be free from defects in materials and workmanship for a period of four years from the date of purchase. The gas equipment shall be free from defects in materials and workmanship for a period of one (1) year from the date of purchase.
