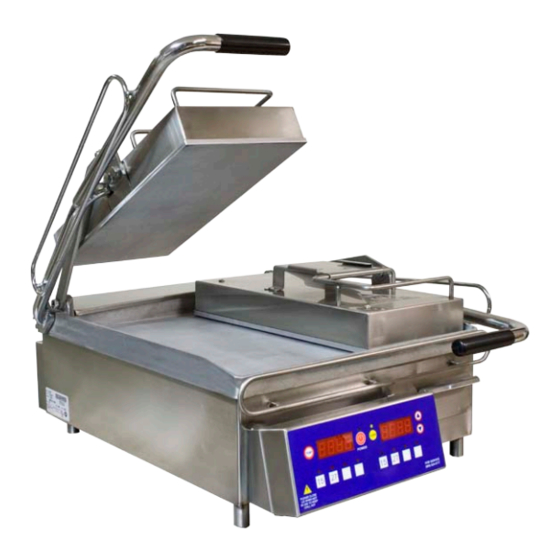

- Page 1 Operations Manual Model: SL1577Y Split Lid Grill formerly DOUGHPRO. New Name. Same Quality. Superior Service. proluxe.com rev8 - 91613...
-
Page 2: Cleaning Instructions
Operation Instructions Please read carefully before attempting to use this appliance. Step 1. Carefully unpack and clean grill plates with mild soap then sponge clean with cold water. Step. 2. Place in location where it will be used allowing for clearances per the dimensions indicated. -
Page 3: Clean Cycle
Clean Cycle 275°F is the factory default temp for the CLEAN cycle. To change the CLEAN cycle temp, simultaneously hold down the TEMP and CLEAN buttons for 15 seconds. The current temp setting will display on the right digital display only. Using the up or down arrows to adjust to the desired temp. To start a clean cycle, push CLEAN button once so the CLEAN LED light is turned on. - Page 4 SL1577 Operating Instructions: 1. Press desired time to start the time cycle. After the cycle is finished, press it again to reset the time cycle HOW TO FIND TEMPERATURE 1. To find the temperature of the UPPER PLATENS: Press the TEMPERATURE button and the ARROW UP button at the same time. 2.
- Page 5 Instruction’s for Adjusting the Temperature PRESS and hold the TEMP and ARROW up buttons simultaneously for 15 seconds. The current temperature setting will display on the right digital display only. Using the ARROW buttons, you may now adjust the temperature to your 17 17 desired setting.
- Page 6 DOUGHPRO SL1577 Split Lid Grill Trouble Shooting Guide Symptom Probable Cause Action to be Taken Parts List Ref. # Power Button on Control face is Power Cord is not plugged in. Plug power cord into wall 's depressed but doesn’t turn on. receptacle and depress power button on controller Circuit Breaker is tripped off in the...
- Page 7 DOUGHPRO SL1577 Split Lid Grill Trouble Shooting Guide Symptom Probable Cause Action to be Taken Parts List Ref. # Either Heater Platen is not Heating If the Mechanical Relay (s) on the coil Replace Mechanical Relay. # 15 but the Digital Controller is on and side are receiving 12vdc indicates the appears to be functioning.
- Page 8 SL1577P EXPSL1577 R8 030813.DWG PAGE 1 OF 3...
- Page 9 SL1577P SL1577P EXPSL1577 R8 030813.DWG PAGE 2 OF 3...
- Page 10 SL1577P SL1577P EXPSL1577 R8 030813.DWG PAGE 3 OF 3...
- Page 11 SL1577 MODEL MODEL MODEL MODEL MODEL QTY. SL1577YA SL1577A/ SL1577B/ SL1577C/ SL1577E/ SL1577P SL1577P SL1577P SL1577P ITEM # PART NAME 120 V 120 V 220 V 220 V 208 V LOWER WRAP AROUND SHROUD ASSEMBLY 110115501 110115501 110115501 110115501 110115501 LOWER PLATEN INSULATION 110115542 110115542...
- Page 12 SL1577 MODEL MODEL MODEL MODEL MODEL QTY. SL1577YA SL1577A/ SL1577B/ SL1577C/ SL1577E/ SL1577P SL1577P SL1577P SL1577P ITEM # PART NAME 120 V 120 V 220 V 220 V 208 V BOLT, HEX 5/16-18 X 1.0 SST BH516181S BH516181S BH516181S BH516181S BH516181S WASHER, CUT 5/16 WC516...
-
Page 14: Warranty And Return Policy
Exclusions: 1. WOOD / GAS FIRED OVENS: PROLUXE warranty applies to the main body of the oven being steel / refractory and insulation shall be free from defects in materials and workmanship for a period of four years from the date of purchase. The gas equipment shall be free from defects in materials and workmanship for a period of one (1) year from the date of purchase.
