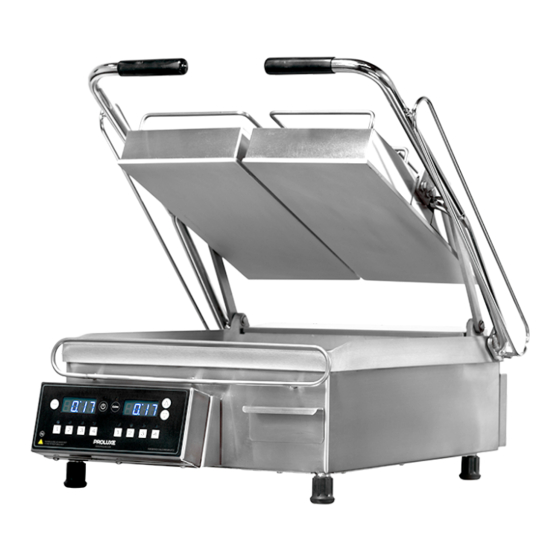

- Page 1 Operations Manual Vantage SL - Split Lid Grill Model #: SL1577 WWW.PROLUXE.COM Version: 51719...
-
Page 2: Shipping Weight
G E T T I N G S T A R T E D Congratulations on your selection of the Vantage SL Compact Split Lid Please read carefully before attempting to Grill. Proluxe is a leading use this appliance. ... -
Page 3: Start Cycle
T E M P E R A T U R E/T I M E R Note : When adjusting the timer settings, the S E T T I N G S right set of buttons control the left side. ... -
Page 4: Daily Care
P R E V E N T A T I V E M A I N T E N A N C E Proluxe machines are relatively maintenance free. For a long lifespan, the following preventative maintenance should be ... - Page 5 Vantage SL Troubleshoot Guide - Model #: SL1577 Problem Cause Action Ref # Power button on 1. Power cord is not plugged in. 1. Plug the power cord into wall digital controller face receptacle and power button. ...
- Page 6 platen and reconnect to the controller. Digital controller The mechanical relay on the switched Replace the mechanical relay. 15 beeping and is side is not opening to regulate overheating. temperature. Hold TEMP button then depress either the down or up arrow (zone 1, lower platen, zone 2, ...
- Page 7 is connected on both sides. The retaining clip attached to pin may have come off. Upper platen falling The springs have lost some Remove rear panel and adjust the ---- down or lost tension. retaining collars on shaft by tension. ...
- Page 8 7 ...
- Page 9 8 ...
- Page 10 9 ...
- Page 11 10 ...
- Page 12 11 ...
- Page 13 Vantage SL Part List - Model #: SL1577 ITEM SL1577A SL1577CEC SL1577E SL1577PA SL1577PCEC SL1577PE DESCRIPTION ~120V ~220V ~208V ~120V ~220V ~208V QTY. LOWER WRAP AROUND SHROUD ASSEMBLY 110115501 110115501 110115501 110115501 110115501 110115501 INSULATION,UPPER 7" X 15" LEFT AND RIGHT...
- Page 14 1101708886 1101708886 1101708886 1101708886 1101708886 1101708886 PIN, PIVOT BACK 1101708886 1101708886 1101708886 1101708886 1101708886 1101708886 PIN, PIVOT FRONT HANDLE-HOLDER 110115530 110115530 110115530 110115530 110115530 110115530 SHIM, CLEVIS 11060421 11060421 11060421 11060421 11060421 11060421 UPPER LEVELING SHIM 110115557 110115557 110115557 110115557 110115557 110115557 UPPER LEVELING ...
- Page 15 WASHER, .311 OD X .150 ID X .20 THK 311150019 311150019 311150019 311150019 311150019 311150019 WASHER, CUT 5/16 WC516 WC516 WC516 WC516 WC516 WC516 WASHER, SAE 3/8" WSAE38 WSAE38 WSAE38 WSAE38 WSAE38 WSAE38 WASHER, 5/16" SPLIT LOCK WL516 WL516 WL516 WL516 WL516 WL516...
- Page 16 1101654646 1101654646 1101654646 1101654646 1101654646 1101654646 FEET, RUBBER 3/4 BUSHING, FLANGED TEFLON 3/4 ID X .875 OD X .5 L 110115563 110115563 110115563 110115563 110115563 110115563 BUSHING, TEFLON, 3/4" ID X 7/8" OD X 1" L 110115541 110115541 110115541 110115541 110115541 110115541 BUSHING TEFLON 3/4" ...
-
Page 17: Warranty And Return Policy
Warranty travel will only be covered warranty. for 60 miles. In no event shall Proluxe be liable for consequential damages arising out of the ALL WARRANTY SERVICE CALLS MUST BE failure of any of its products if operated ... - Page 18 6. D amaged Claims : All merchandise shipped be returned after 30 days. If upon inspection at purchaser’s risk. Inspection must be made by Proluxe or its authorized agent it is by purchaser at time goods are received. If determined the equipment has not been used ...
