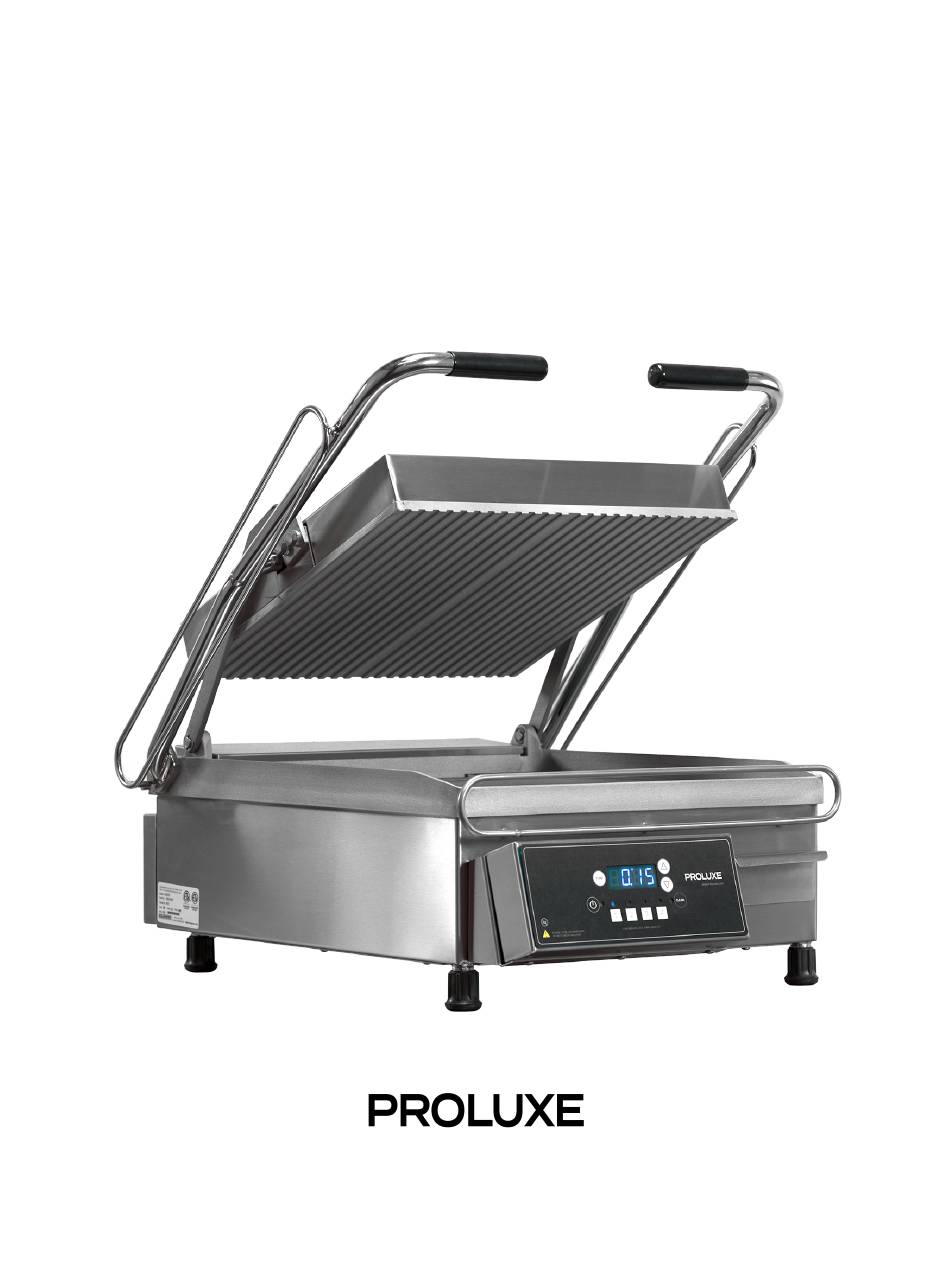

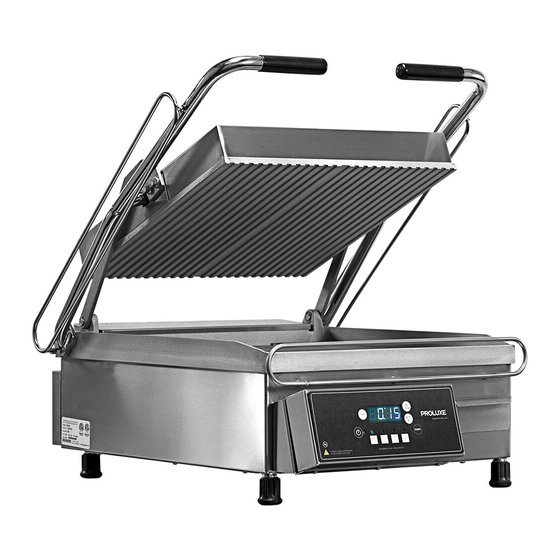

- Page 1 Operations Manual Vantage CS (Panini) - Clamshell Grill Model #: CSD1515PE WWW.PROLUXE.COM Version: 51719...
-
Page 2: Shipping Weight
G E T T I N G S T A R T E D the Vantage CS Clamshell Panini Please read carefully before attempting to Grill. Proluxe is a leading use this appliance. manufacturer of food preparation and cooking equipment designed for ... -
Page 3: Adjusting The Set Temperature
T E M P E R A T U R E/T I M E R 4. Once your desired temperature is S E T T I N G S set, push the TEMP button to return. Note : When adjusting the timer settings, the How to Find Set Temperature ... -
Page 4: Daily Care
P R E V E N T A T I V E M A I N T E N A N C E Proluxe machines are relatively maintenance free. For a long lifespan, the following preventative maintenance should be followed: ... - Page 5 Vantage CS (Panini) Troubleshoot Guide - Model #: CSD1515PE Problem Cause Action Ref # Power button on 1. Power cord is not plugged in. 1. Plug the power cord into wall digital controller face receptacle and power button. ...
- Page 6 platen and reconnect to the controller. Digital controller The mechanical relay on the switched Replace the mechanical relay. 15 beeping and is side is not opening to regulate overheating. temperature. Hold TEMP button then depress either the down or up arrow (zone 1, lower platen, zone 2, ...
- Page 7 is connected on both sides. The retaining clip attached to pin may have come off. Upper platen falling The springs have lost some Remove rear panel and adjust the ---- down or lost tension. retaining collars on shaft by tension. ...
-
Page 8: Strain Relief
Vantage CS (Panini) Part List - Model #: CSD1515PE CSD1515A/ CSD1515CEC/ CSD1515E/ ITEM CSD1515PA CSD1515PCEC CSD1515PE DESCRIPTION 120 V 220V 208 V LOWER WRAP AROUND SHROUD ASSEMBLY 110115501 110115501 110115501 GREEN INSULATION WASHER C4401 C4401 C4401... - Page 9 COUNTER BALANCE SPRING RIGHT HAND 1101023154R 1101023154R 1101023154R COUNTER BALANCE SPRING LEFT HAND 1101023154L 1101023154L 1101023154L COLLAR HOLDER 110115530 110115530 110115530 FEET, RUBBER 3/4 11016546469 11016546469 11016546469 BUSHING TEFLON 3/4 LONG 110113441 110113441 110113441 GREASE TRAY 110115505 110115505 110115505 NUT, HEX 6-32 NH632 NH632 NH632...
-
Page 10: Mounting Bracket
SCREW, PAN HEAD PHILLIPS 6-32 x 3/8 SP63238 SP63238 SP63238 SCREW, PAN HEAD PHILLIPS 6-32 x 5/8 SP63258 SP63258 SP63258 SCREW, PAN HEAD PHILLIPS 8-32 X 1 SP8321 SP8321 SP8321 NUT, HEX 8-32 NH832 NH832 NH832 WASHER, SAE #8 WSAE8 WSAE8 WSAE8 WASHER, INTERNAL TOOTH ... - Page 11 SCREW, PAN HEAD PHILLIPS 10-24 X 3/8 STAINLESS STEEL SP102438S SP102438S SP102438S UPPER SHROUD 110121721 110121721 110121721 SCREW, PAN HEAD PHILLIPS 8-32 x 3/8 SP83238 SP83238 SP83238 INSULATION UPPER PLATEN 110888251 110888251 110888251 CLEVIS ASSEMBLY LEFT HAND 110115503 110115503 110115503 CLEVIS ASSEMBLY RIGHT ...
-
Page 12: Warranty And Return Policy
APPROVED BY PROLUXE. IF THIS warranty. PROCEDURE IS NOT FOLLOWED, In no event shall Proluxe be liable for WARRANTY SERVICE WILL NOT BE consequential damages arising out of the COVERED. WARRANTY SERVICE WILL BE ... - Page 13 PURCHASER shall be returned after 30 days. If upon inspection request that the agent of the transportation by Proluxe or its authorized agent it is company make a written notation on the determined the equipment has not been used ...
