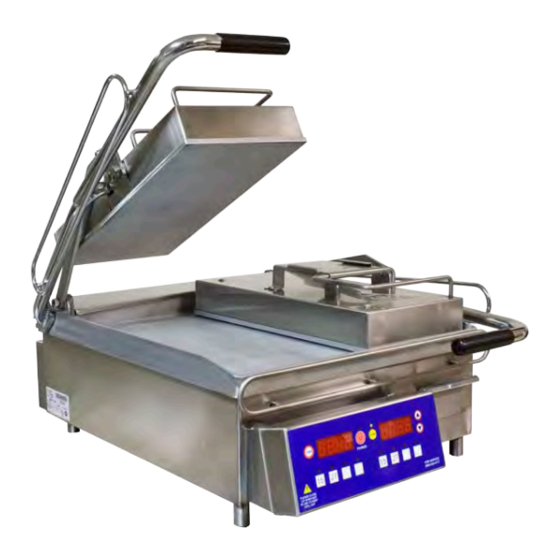

- Page 1 Operations Manual Model: SL1577TBCEC Split Lid Grill formerly DOUGHPRO. New Name. Same Quality. Superior Service. proluxe.com rev1 - 42814...
-
Page 2: Cleaning Instructions
Operation Instructions Please read carefully before attempting to use this appliance. Step 1. Carefully unpack and clean grill plates with mild soap then sponge clean with cold water. Step. 2. Place in location where it will be used allowing for clearances per the dimensions indicated. -
Page 3: Clean Cycle
Clean Cycle 275°F is the factory default temp for the CLEAN cycle. To change the CLEAN cycle temp, simultaneously hold down the TEMP and CLEAN buttons for 15 seconds. The current temp setting will display on the right digital display only. Using the up or down arrows to adjust to the desired temp. To start a clean cycle, push CLEAN button once so the CLEAN LED light is turned on. - Page 4 SL1577 Operating Instructions: 1. Press desired time to start the time cycle. After the cycle is finished, press it again to reset the time cycle HOW TO FIND TEMPERATURE 1. To find the temperature of the UPPER PLATENS: Press the TEMPERATURE button and the ARROW UP button at the same time. 2.
- Page 5 Instruction’s for Adjusting the Temperature PRESS and hold the TEMP and ARROW up buttons simultaneously for 15 seconds. The current temperature setting will display on the right digital display only. Using the ARROW buttons, you may now adjust the temperature to your 17 17 desired setting.
- Page 6 DOUGHPRO SL1577 Split Lid Grill Trouble Shooting Guide Symptom Probable Cause Action to be Taken Parts List Ref. # Power Button on Control face is Power Cord is not plugged in. Plug power cord into wall 's depressed but doesn’t turn on. receptacle and depress power button on controller Circuit Breaker is tripped off in the...
- Page 7 DOUGHPRO SL1577 Split Lid Grill Trouble Shooting Guide Symptom Probable Cause Action to be Taken Parts List Ref. # Either Heater Platen is not Heating If the Mechanical Relay (s) on the coil Replace Mechanical Relay. # 15 but the Digital Controller is on and side are receiving 12vdc indicates the appears to be functioning.
- Page 8 2X 55 2X 46 2X 72 52 4X EXPSL1577TBCEC RC 101216 SHEET 1 OF 2...
- Page 9 56 2X 12X 24 2X 23 2X 21 2X 20 2X 29 2X 37 2X 15 2X 17 17 3X 6X 94 EXPSL1577TBCEC RC 101216 SHEET 2 OF 2...
- Page 10 PART LIST FOR THE SL1577TBCEC MODEL MODEL ITEM # DESCRIPTION SL1577TBA SL1577TBCEC QTY. 120 V 220V LOWER WRAP AROUND SHROUD ASSEMBLY 110115501 110115501 GREEN INSULATION WASHER C4401 C4401 HEX NUT 3/8-16 NH3816 NH3816 STRAIN FELIEF 1106546468 1106546468 SCREW, SET 3/8-16 x 1 SST38161 SST38161 SCREW, SET 3/8-16 x 1/2...
- Page 11 PART LIST FOR THE SL1577TBCEC MODEL MODEL ITEM # DESCRIPTION SL1577TBA SL1577TBCEC QTY. 120 V 220V COVER, HEATER ELEMENT 110115564 110115564 SCREW, PAN HEAD PHILLIPS 6-32 X1/4 NICKEL PLATED SP63214 SP63214 BOTTOM COVER ASSEMBLY 110115570 110115570 10-32 THREAD, 3/8" QUICK-INSTALL THREAD FORMING SCREW SP103238ST SP103238ST SCREW, PAN HEAD PHILLIPS 8-32 x 1/2...
-
Page 14: Warranty And Return Policy
Exclusions: 1. WOOD / GAS FIRED OVENS: PROLUXE warranty applies to the main body of the oven being steel / refractory and insulation shall be free from defects in materials and workmanship for a period of four years from the date of purchase. The gas equipment shall be free from defects in materials and workmanship for a period of one (1) year from the date of purchase.
