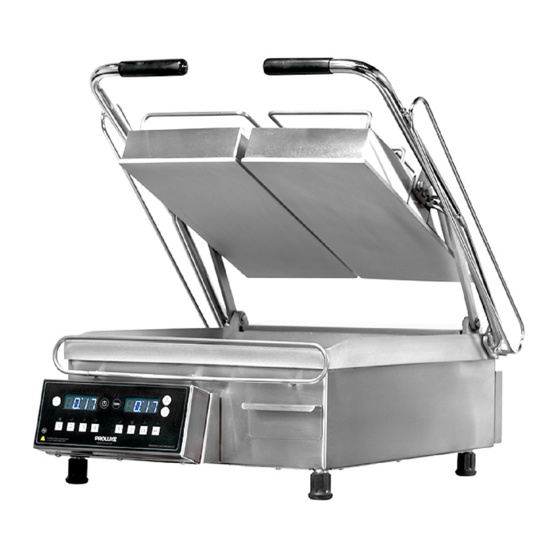

Proluxe SL1577 Operation Manual

Proluxe SL1577 Operation Manual

Split lid grill
Hide thumbs Also See for SL1577:

Advertisement

Operations Manual
Model: SL1577
Split Lid Grill
formerly DOUGHPRO. New Name. Same Quality. Superior Service.
proluxe.com
rev8-71713

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL1577 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Proluxe SL1577

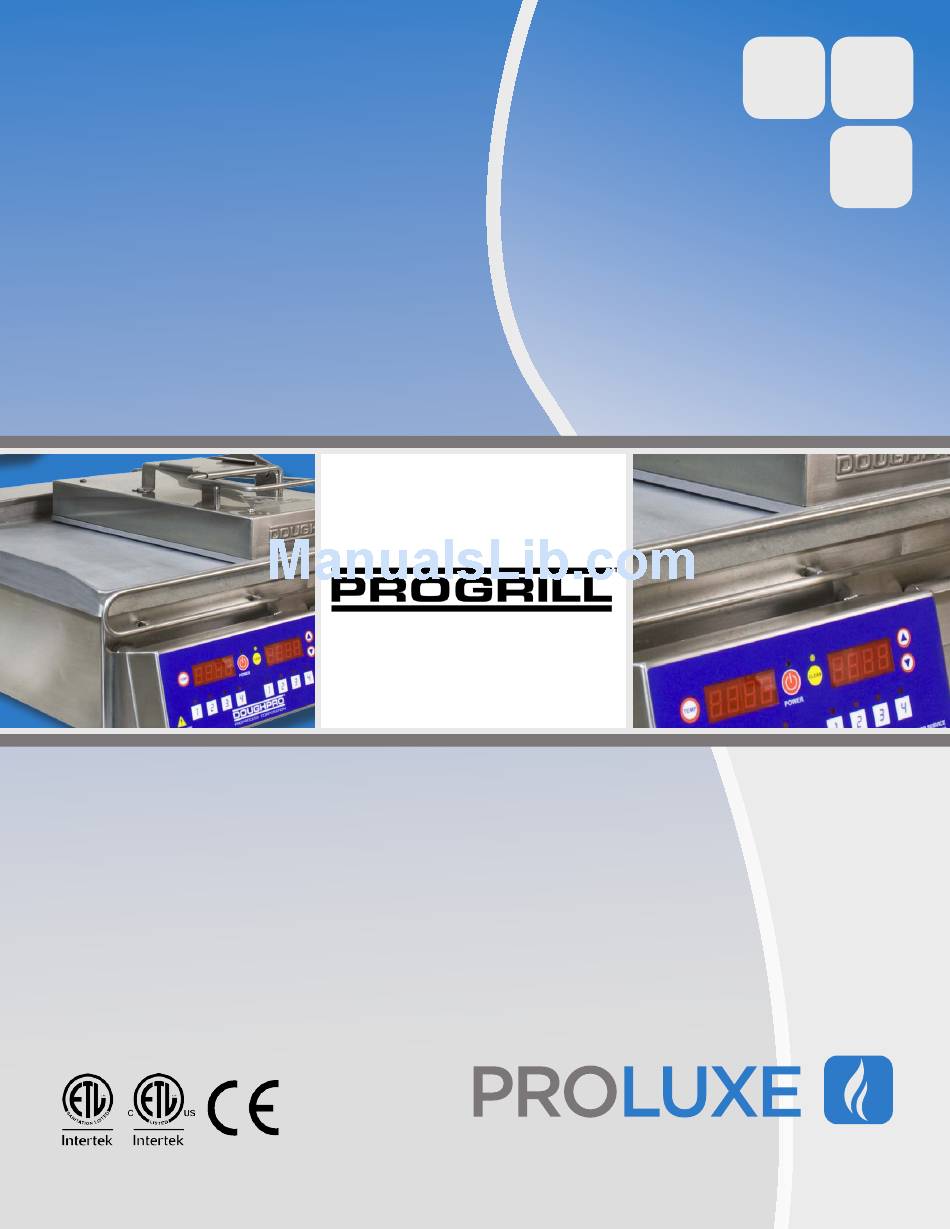

  • Page 1 Operations Manual Model: SL1577 Split Lid Grill formerly DOUGHPRO. New Name. Same Quality. Superior Service. proluxe.com rev8-71713...
  • Page 2: Cleaning Instructions

    Operation Instructions Please read carefully before attempting to use this appliance. Step 1. Carefully unpack and clean grill plates with mild soap then sponge clean with cold water. Step. 2. Place in location where it will be used allowing for clearances per the dimensions indicated.
  • Page 3: Clean Cycle

    Clean Cycle 275°F is the factory default temp for the CLEAN cycle. To change the CLEAN cycle temp, simultaneously hold down the TEMP and CLEAN buttons for 15 seconds. The current temp setting will display on the right digital display only. Using the up or down arrows to adjust to the desired temp. To start a clean cycle, push CLEAN button once so the CLEAN LED light is turned on.
  • Page 4: To Find Temperature

    SL1577 Operating Instructions: 1. Press desired time to start the time cycle. After the cycle is finished, press it again to reset the time cycle HOW TO FIND TEMPERATURE 1. To find the temperature of the UPPER PLATENS: Press the TEMPERATURE button and the ARROW UP button at the same time.
  • Page 5: Adjusting Temperature/Set-Time

    Instruction’s for Adjusting the Temperature PRESS and hold the TEMP and ARROW up buttons simultaneously for 15 seconds. The current temperature setting will display on the right digital display only. Using the ARROW buttons, you may now adjust the temperature to your desired setting.
  • Page 6: Troubleshooting

    DOUGHPRO SL1577 Split Lid Grill Trouble Shooting Guide Symptom Probable Cause Action to be Taken Parts List Ref. # Power Button on Control face is Power Cord is not plugged in. Plug power cord into wall 's depressed but doesn’t turn on.
  • Page 7 DOUGHPRO SL1577 Split Lid Grill Trouble Shooting Guide Symptom Probable Cause Action to be Taken Parts List Ref. # Either Heater Platen is not Heating If the Mechanical Relay (s) on the coil Replace Mechanical Relay. # 15 but the Digital Controller is on and side are receiving 12vdc indicates the appears to be functioning.
  • Page 8: Parts Layout

    EXPSL1577 R9 050914 PAGE 1 OF 3...
  • Page 9 EXPSL1577 R9 050914 PAGE 2 OF 3...
  • Page 10 EXPSL1577 R9 050914 PAGE 3 OF 3...
  • Page 11: Parts List

    SL1577/SL1577P PART LIST MODEL MODEL MODEL MODEL QTY. SL1577A SL1577B/ SL1577CEC/ SL1577E/ SL1577PA SL1577PB SL1577PCEC SL1577PE ITEM # PART NAME 120 V 220 V 220 V 208 V LOWER WRAP AROUND SHROUD ASSEMBLY 110115501 110115501 110115501 110115501 LOWER PLATEN INSULATION...
  • Page 12 SL1577/SL1577P PART LIST MODEL MODEL MODEL MODEL QTY. SL1577A SL1577B/ SL1577CEC/ SL1577E/ SL1577PA SL1577PB SL1577PCEC SL1577PE ITEM # PART NAME 120 V 220 V 220 V 208 V GREASE TRAY 110115505 110115505 110115505 110115505 OVERLAY OSL1577 OSL1577 OSL1577 OSL1577 SENSOR...
  • Page 13 110115559 110115559 COVER, HEATER ELEMENT 110115564 110115564 110115564 110115564 SCREW, PAN HEAD PHILLIPS 6-32 X1/4 ST SP63214ST SP63214ST SP63214ST SP63214ST MANUAL SL1577 MSL1577 MSL1577 MSL1577 MSL1577 LOWER PLATEN WITH WIRING 1101155207 1101155208 1101155208 1101155209 LOWER PLATEN PANINI WITH WIRING 1101155207P...
  • Page 15 One year warranty for parts and labor. WHAT WE WILL DO We will repair or replace the defective SL1577 on normal warranty one year parts and labor. The heating elements on the upper and lower platen only; will be replaced by next day air service;...
  • Page 16: Warranty And Return Policy

    Exclusions: 1. WOOD / GAS FIRED OVENS: PROLUXE warranty applies to the main body of the oven being steel / refractory and insulation shall be free from defects in materials and workmanship for a period of four years from the date of purchase. The gas equipment shall be free from defects in materials and workmanship for a period of one (1) year from the date of purchase.
