Mocka Bronte Buffet Assembly Instructions Manual page 8

Bronte Buffet
Assembly Instructions
13
19
K
20

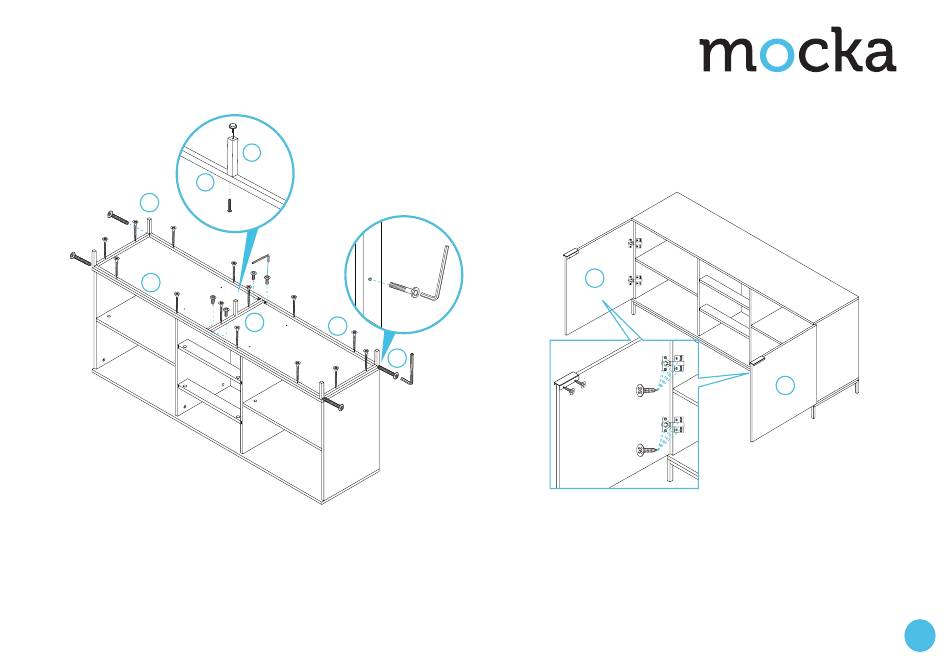

Attach panels [19], [20] and [21] to assembled frame and secure with
14 x screws (K), 4 x bolts (W) and 5 x screws (J). Attach panel (22)
to base and secure with 1x screws (J) ,1x foot (Y). Tighten with a
screwdriver and an Allen Key (I) as shown.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Y
22
21
J
I
W
21
20
14
I
J
19
I D
J
Attach 2 x handles (D) to panels [12] and [13] and secure with 4 x
screws (X). Attach panels [12] and [13] to assembled frame and secure
with 4 x hinges (S) and 16 x screws (A). Tighten with a screwdriver.
12
S
X A
S
A
13
