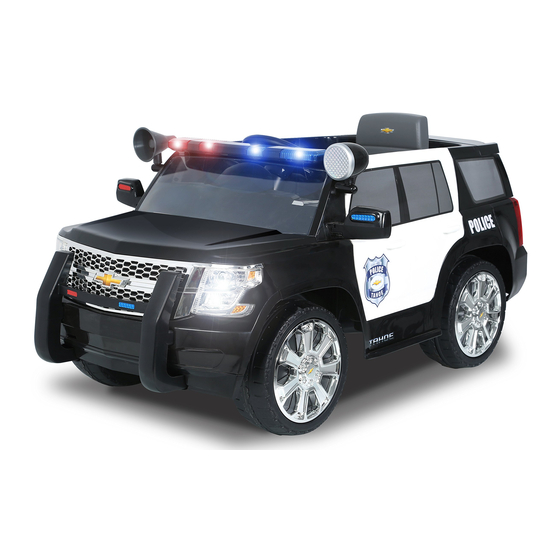

Rollplay 6V Chevy Tahoe Police SUV Owner's Manual And Assembly Instructions
  1. Manuals
  2. Brands
  3. Rollplay Manuals
  4. Motorized Toy Car
  5. 6V Chevy Tahoe Police SUV
  6. Owner's manual and assembly instructions

Rollplay 6V Chevy Tahoe Police SUV Owner's Manual And Assembly Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

6V Chevy Tahoe Police SUV
Owner's Manual and Assembly Instructions
Model #: W510AC-CT
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6V Chevy Tahoe Police SUV and is the answer not in the manual?

Questions and answers

Related Manuals for Rollplay 6V Chevy Tahoe Police SUV

Summary of Contents for Rollplay 6V Chevy Tahoe Police SUV

  • Page 1 6V Chevy Tahoe Police SUV Owner’s Manual and Assembly Instructions Model #: W510AC-CT Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China.
  • Page 2 Introduction Thank you for purchasing this RollPlay vehicle. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
  • Page 3 Call Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.com as we may require proof of purchase. 1-888-982-9309 Read this entire manual to ensure proper assembly and safe operation of the vehicle.
  • Page 4 This page is intentionally left blank.

  • Page 5: Table Of Contents

    Table of Contents Safety ............6 Parts ............8 Charging Instructions .......9 Assemble the Wheels ......10 Assemble the Right Rear Wheel ....11 Assemble the Mirrors ......12 Attach the Megaphone/Searchlight ..13 Assemble the Steering Wheel ....14 Assemble the Front Bumper ....15 Assemble the Seat ........16 Operation Instructions ......17 Battery Removal ........18 Maintenance ..........19...

  • Page 6: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 35 kg (77 lbs). •...
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. •...

  • Page 8: Parts

    Parts Not Included: • Phillips screwdriver • Pliers • 2 AA Batteries 12. Battery 1. Manual 14.3 14.6 14.1 13. Battery Charger 2. Steering Wheel 14.4 14. Blister Pack 3. Seat 14.2 14.5 14.7 4. Searchlight 14.1. Steering Wheel Screw (1) 14.2.

  • Page 9: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the vehicle is stopped and turned off. 2. Unlock and remove the seat. 3.

  • Page 10: Assemble The Wheels

    Assemble the Wheels 14.5 14.6 14.5 14.3 14.4 14.4 14.3 To assemble the front wheels: 1. Locate the snap pins (14.3) and small washers (14.4) from the blister box. 2. Slide the front small washer (14.4) onto the axle. 3. Slide the front wheel (7) onto the axle. 4.

  • Page 11: Assemble The Right Rear Wheel

    Assemble the Right Rear Wheel Helpful Tip: wheels onto the rear axle, then your rear wheel axle may need to be realigned. 2. Remove both wheels from the rear wheel axle. Using two hands, push down on the rear wheel axle and slide it gently toward the side of the vehicle that needs more room.

  • Page 12: Assemble The Mirrors

    Assemble the Mirrors 1. Remove the screw and nut from the mirror (6). 2. Align the hole on the mirror with the hole on the car. 3. Insert the screw into the hole, and insert the nut underneath the mirror slot.

  • Page 13: Attach The Megaphone/Searchlight

    Attach the Megaphone/Searchlight 1. Locate the searchlight (4) in the packaging. 2. Insert the searchlight into the slot near the left door. 3. Gently push until it clicks into place. 4. Repeat steps 1-3 for the megaphone (5).

  • Page 14: Assemble The Steering Wheel

    Assemble the Steering Wheel 14.2 AA 1.5V AA 1.5V AA 1.5V 14.1 WARNING Do not mix old batteries with new batteries or batteries of different types. • Do not mix alkaline, standard (carbon-zinc), or rechargable (nickel- • cadmium) batteries. 1. Use a Phillips head screwdriver to remove the screw on the battery compartment of the steering wheel (2).

  • Page 15: Assemble The Front Bumper

    Assemble the Front Bumper 1. Locate the front bumper (10) in the packaging. 2. Align the top and bottom slots on the bumper with the four holes on the car body. 3. Slide the bumper into the holes until it snaps into place.

  • Page 16: Assemble The Seat

    Assemble the Seat Hook Slot 1. Ensure the lock on the car seat (3) is in the unlock position. 2. Align the hook on the back of the car seat (3) with the holes on the back of the battery compartment. 3.

  • Page 17: Operation Instructions

    Operation Instructions 7. Battery Life 4. MP3 Jack Indicator 8. Loudspeaker 2. Shifter 5. Sounds 6. Siren 1. Power Switch 3. Foot Pedal 1. Power: Push the red power button to turn on the car. The power light will turn on when the car is on.

  • Page 18: Battery Removal

    Battery Removal Battery Strap 1. Unlock and remove the seat 2. Disconnect the red battery connector from the red engine connector 3. Loosen and remove the screw from the battery strap using a Phillips screwdriver 4. Slide the battery strap out from the battery strap slot 5.

  • Page 19: Maintenance

    Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • Charge the battery for 24 hours before using the vehicle for the first time.

  • Page 20: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service information on Page 24. •...

  • Page 21: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 22 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 23: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 24: Service And Repairs

    Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.com.

  • Page 25: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.

  • Page 26: Product Registration

    City: State: Zip Code: Email: Phone: Date of Purchase: The following product information is on the cover of the owner’s manual. Product Name: Model Number: Serial Number: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
