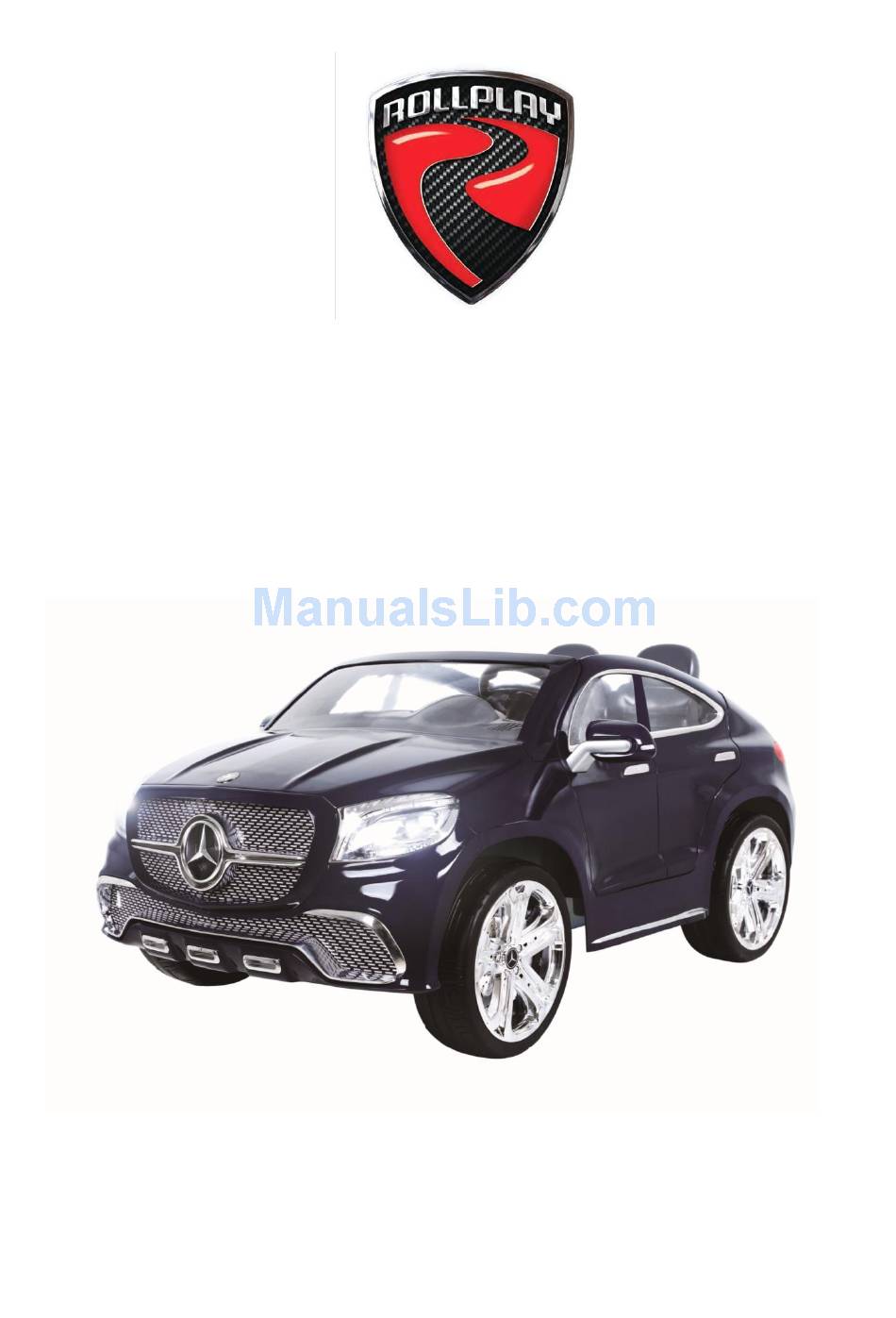

- Page 1 12V Mercedes GLE SUV Coupe (W489) Customer Service Guide MMXV © Copyright RollPlay...
-
Page 2: Table Of Contents
Customer Service Guide Contents Check Battery................. Check Fuse Condition.............. III) Check Wiring Condition............Door Replacement..............Gearbox Replacement.............. Warning Stickers..............VII) Schematic Diagram..............VIII) Exploded View................. CAUTION : Disconnect the battery before proceeding with the troubleshooting process... -
Page 3: I) Check Battery
Customer Service Guide I) Check Battery Operation: Use a Flat head screwdriver to unlock and remove the seat. Locate the battery harness, unplug the connector, and then use a volt-meter to check the battery. Step (1) Turn and unlock these two knobs Unlock position Step (2) - Page 4 Customer Service Guide I) Check Battery Step (3) Unplug the battery connector (WHITE) underneath seat Step (4)
- Page 5 Customer Service Guide I) Check Battery Step Reading Judgment: 11.5 V ~ 13.4 V – Good condition 10.0 V ~ 11.0 V – Recharge battery 9.5 V – Recharge battery. If after the stipulated recharging time voltage has not increased, then replace the battery.
-
Page 6: Ii) Check Fuse Condition
Customer Service Guide II) Check Fuse Condition Operation: Look at the Fuse Check Window top of the battery to determine if the fuse blown out. Keep the battery connected, and turn on the unit with the power switch. The signal light of fuse will stay “ON” when there is a short circuit to battery. -
Page 7: Iii) Check Wiring Condition
Customer Service Guide III) Check Wiring Connection Operation: There are three positions of wiring connections to checked. A. Foot Pedal : Follow below steps to locate and check the connection. Use a flat head to snap the Foot Pedal off from the left bottom side of the car body Step (1) Check that the wires on the connecting block are secure. - Page 8 Customer Service Guide III) Check Wiring Connection Step Snap the Foot Pedal back in after checking and/or repairing...
- Page 9 Customer Service Guide III) Check Wiring Connection B. Shifter : Locate the Shifter cover below the seat. Unscrew, and lift it up as shown below. Step (1) Unscrew the shifter cover Step (2) Use flat head screwdriver to release cover as shown...
- Page 10 Customer Service Guide III) Check Wiring Connection Step (3) Lift the shifter assembly up from slot Step (4) Check that the connecting blocks are properly in place Reverse above procedures to re-assemble the vehicle...
- Page 11 Customer Service Guide III) Check Wiring Connection C. Steering Wheel : Follow below procedures to access the wiring connection. Step (1) Unscrew and remove the Steering Wheel from the right hand side Step (2) Remove the steering wheel from the steering column, and check the connectors.
- Page 12 Customer Service Guide III) Check Wiring Connection D. Dashboard : Follow above (IIIc) procedures to remove the steering wheel and then access the wiring connection of dashboard. Step (1) Release the two slide-lock underneath the dash Step (2) release Two slide locks here (push the tab inward to release)
- Page 13 Customer Service Guide III) Check Wiring Connection Check if the wiring connectors on dashboard are properly connected or not Step Reverse above procedures to re-assemble the vehicle...
-
Page 14: Iv) Door Replacement
Customer Service Guide IV) Door Replacement Operation: Follow above (IIId) steps to remove and unplug the dashboard, then replace the door as shown below. Step (1) s replacement Unscrew two doors screws on the door that need Step (2) Remove and replace the whole Door assembly Reverse above procedures to re-assemble the vehicle... -
Page 15: V) Gearbox Replacement
Customer Service Guide V) Gearbox Replacement Operation: Follow below steps to take apart replace the gearbox. Use flat head screwdriver to unlock the snaps and remove the rim Step (1) There five locking snaps on rim Step (2) - Page 16 Customer Service Guide V) Gearbox Replacement Step (3) Use the plastic wrench provided to remove the nut on the rear axle Step (4) Slide the rear wheel out from axle...
- Page 17 Customer Service Guide V) Gearbox Replacement Step (5) Remove the seat and find the gearbox harnesses underneath Unplug the appropriate side of gearbox you need to replace Step (6) Yellow connector with Black/Red wiring and White sticker on it, this is for the Driver (left) side. White connector with Blue/White wiring and Red sticker on it, this is for Passenger (right) side.
- Page 18 Customer Service Guide V) Gearbox Replacement Cut the cable tie to release the old gearbox Step (7) Step (8) Push to loosen the gearbox assembly from inside first...
- Page 19 Customer Service Guide V) Gearbox Replacement Step (9) Slide the gearbox out from axle Step (10) Replace the whole gearbox with a new one Reverse above procedures to re-assemble the vehicle...
-
Page 20: Vi) Warning Stickers
Customer Service Guide VI) Warning Stickers Operation: Check and replace the damaged warning stickers after repairing. (1) Behind the seat... - Page 21 Customer Service Guide VI) Warning Stickers Below the Seat...
- Page 22 Customer Service Guide VI) Warning Stickers Battery harness...
-
Page 23: Vii) Schematic Diagram
Customer Service Guide VII) Wiring Schematic... -
Page 24: Viii) Exploded View
Customer Service Guide VIII) Exploded View...
