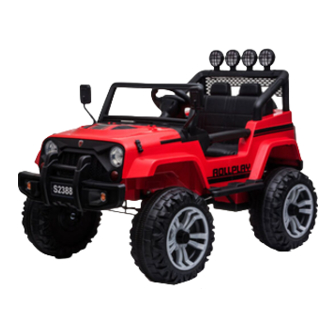

Owner's Manual and Assembly Instructions
Model #: W463 W463-G
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understood the instructions.
Made in China.
Styles and colors may vary. Before returning your product to the store, please contact our
Customer Service team.
Call 1-888-982-9309 for assistance and replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
POWERSPORT TRAIL
THUNDER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W463 and is the answer not in the manual?

Questions and answers

Related Manuals for Rollplay W463

Summary of Contents for Rollplay W463

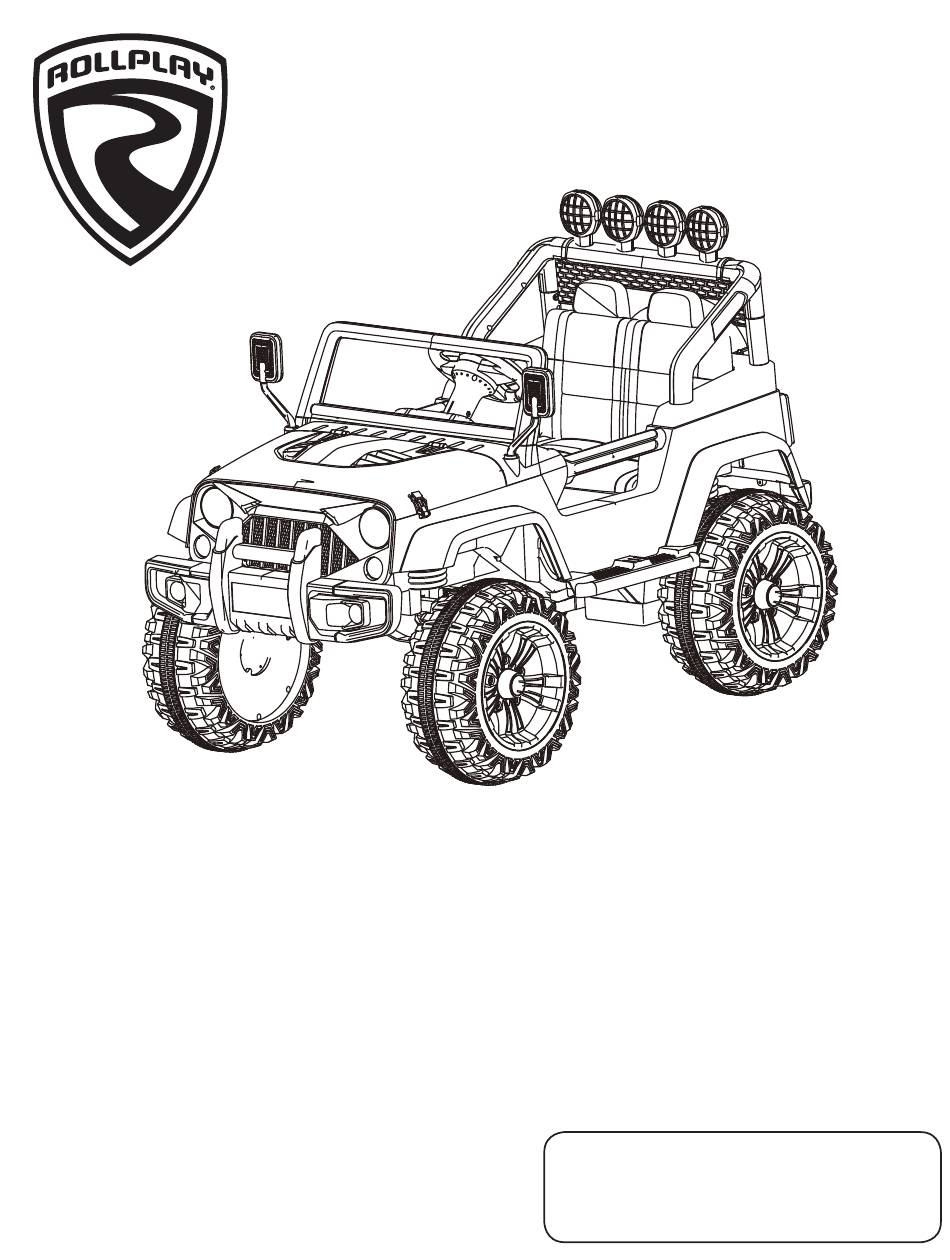

  • Page 1 POWERSPORT TRAIL THUNDER Owner’s Manual and Assembly Instructions Model #: W463 W463-G Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understood the instructions. Made in China.
  • Page 3 Introduction Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please keep your sales receipt and register your product at www.rollplay.com.
  • Page 4 Call Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt and register your product at www.rollplay.com as we require proof of purchase. Email customerservice@rollplay.com or call customer service 1-888-982-9309...

  • Page 5: Table Of Contents

    Table of Contents Safety ............5 Parts ............7 Charging Instructions ......8 Attach the Steering Rod ......9 Attach the Front Bumper ......10 Assemble the Front Rear Wheel ..... 11 Attach the Steering Wheel ...... 12 Attach the Windshield ......13 Attach the Seat ........

  • Page 6: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 •...
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead components. DO NOT open the battery. • Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs. If the chemical is on the skin, immediately give the person water or milk.

  • Page 8: Parts

    Parts Not Included: Phillips screwdriver 1. Seat 9. Light Bar 17. Manual 2. Storage Compartment 10. Steering Wheel 18. Screws (x29) 3. Wheels (x4) 11. Windshield 19. Steering Rod Screw 4. Wheel Covers (x4) 12. Side Mirrors (x2) 20. Nuts (x4) 5.

  • Page 9: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: Figure 1 1. Ensure the car is stopped and the power is turned off. 2.

  • Page 10: Attach The Steering Rod

    Attach the Steering Rod 1. Gently flip the vehicle upside down and lay on a smooth surface. 2. Remove the locknut and washer from Steering Rod (16), insert the Steering Rod into the hole near the front of the vehicle. 3.

  • Page 11: Attach The Front Bumper

    Attach the Front Bumper 1. Align the Front Bumper (7) with the slots on the front of the car. 2. Using a Phillips screwdriver, secure the front bumper with 16 Screws (18).

  • Page 12: Assemble The Front Rear Wheel

    Assemble the Wheels 1. Locate the Wheels (3), Washers, Nuts (20), Wheel Covers (4), Wheel Cap (5) and Hex Wrench (13). 2. Slide a Washer onto one of the Front Axles, then slide on a Front Wheel. 3. Snap a Wheel Cover (4) onto the Wheel, then slide another Washer and a Nut on the axle.

  • Page 13: Attach The Steering Wheel

    Attach the Steering Wheel 1. Inside the hole for the Steering Rod on the dashboard, locate the music wire and connect it to the wire on the Steering Wheel (10). 2. Gently tuck the wires into the Vehicle body. Straighten the front wheels before assembling the steering wheel.

  • Page 14: Attach The Windshield

    Attach the Windshield 1. Locate the Windshield (11) and slide it into the slots at the top of the dashboard until it clicks into place. 2. Insert the Side Mirrors (12) into the slots on the sides of the Wind- shield.

  • Page 15: Attach The Seat

    Attach the Seat 1. Insert the Seat (1) by sliding the hooks on the back into the slots on the vehicle body. 2. Secure with two Screws (18).

  • Page 16: Install The Storage Compartment

    Install the Storage Compartment 1. Align the Storage Compartment (2) with the slots on the back of the vehicle. 2. Insert a Screw (18) inside the Storage Compartment and into the hole on the vehicle body to secure.

  • Page 17: Attach The Light Bar

    Attach the Light Bar 1. Connect the wiring inside the Light Bar (9) with the wiring inside the side brackets, then attach the side brackets to the Light Bar. 2. Fasten the side brackets to the Light Bar with two Screws (18). 3.

  • Page 18: Remote Control Instructions

    Remote Operating Instructions AAA 1.5V Speed adjustment Remote Control Battery Installation: Open the battery cover with a screwdriver. Place two "AAA" (AM-4/LR03) batteries into the battery compartment and replace the battery cover. Secure with the screw. Please note, the use of new alkaline batteries is recommended for optimal performance.
  • Page 19 Remote Operating Instructions Forward Left LED light Speed adjustment Stop Back Right Forward/Reverse Buttons: Press the Forward Button, to move forward. Press the Back Button, to drive in reverse. Speed Adjustment: The Speed Adjustment Button allows you to choose between 3 speeds. Press the button to choose the desired speed.

  • Page 20: Product Features

    Product Features Bluetooth Battery Life Indicator Power Button Charging Port Forward/Reverse Button Speed Button Pedal Power Button: Press the Power Button to turn on the car. The Power Button will light up and a start-up sound will play once the vehicle is on. Press the "O" on the Power Button to turn off the car.

  • Page 21: Maintenance

    Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • time. • Recharge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours.

  • Page 22: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 25 for more information.

  • Page 23: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 24 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service. Dead spot on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 25: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 26: Service And Repairs

    Service and Repairs Before returning your product to the store, contact Rollplay with questions. If your product requires service, repairs or replacement parts, please contact Rollplay Customer Service. Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com...

  • Page 27: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.

  • Page 28: Product Registration

    We will use the information provided only for your warranty. We will not sell, rent or share your personal information. Last Name: T itle: Phone: ate of Purchase: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay. com or 1-888-982-9309...

This manual is also suitable for:

W463-g
