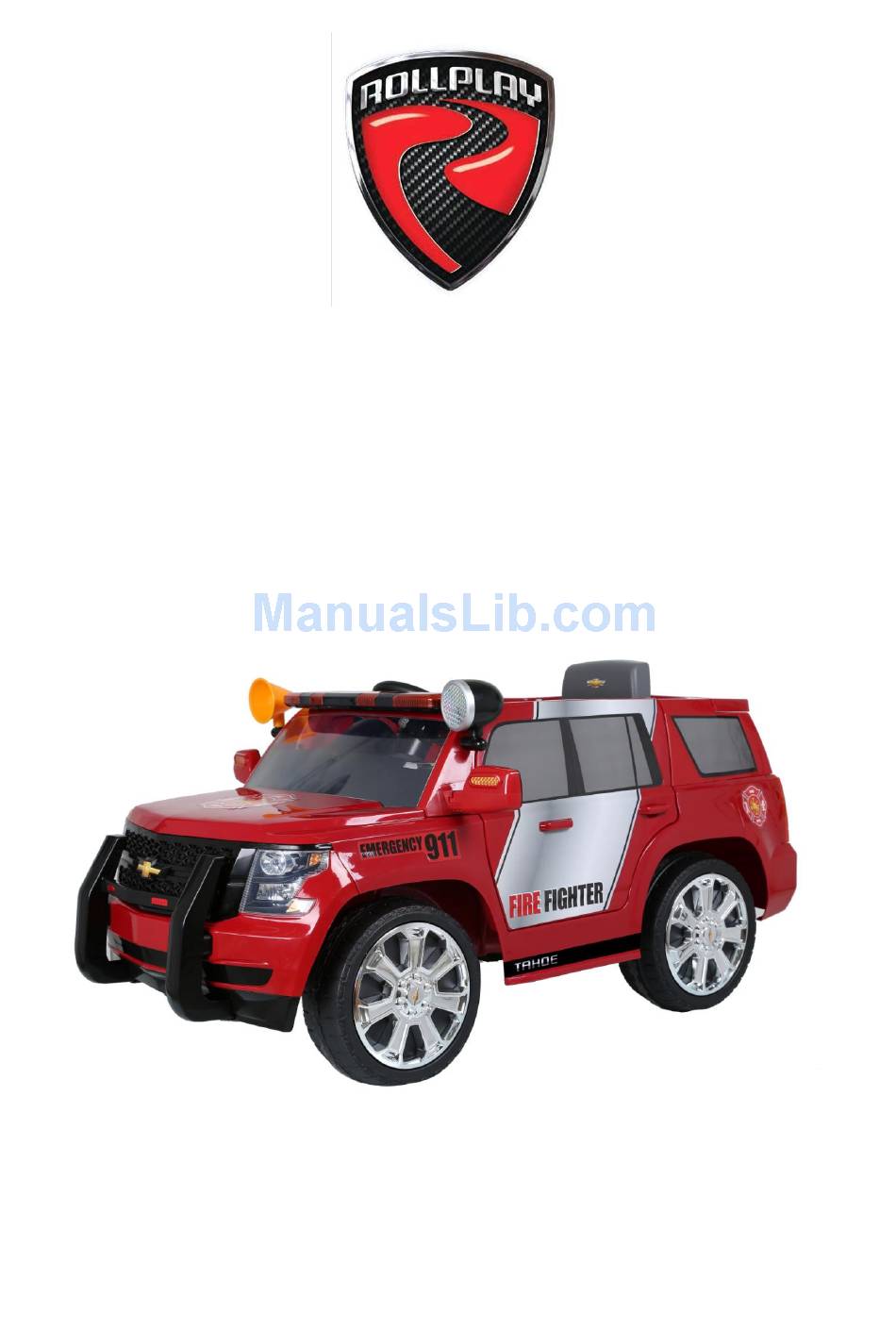

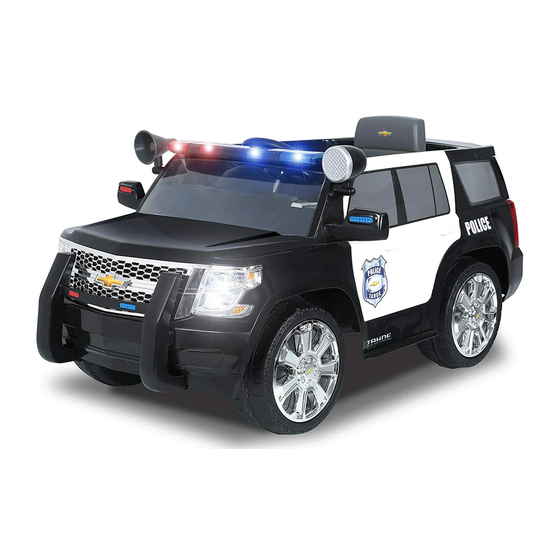

- Page 1 6V Fire/Police (Tahoe/Yukon) (W510) Customer Service Guide MMXV © Copyright Aria Child Inc.
-
Page 2: Table Of Contents
Customer Service Guide Contents I) Check Battery …………………………..........3 II) Check Wiring Condition ……………………………..………………………. 6 III) Check Foot Pedal ………………………………………………………..….….. 8 IV) Gearbox Replacement …………………………………………..…………… 10 V) Door Replacement …………………………………………………………..15 VI) Dashboard Replacement ………………………………………………….… 16 VII) Warning Stickers ………………………………………………….………… 20 VIII) Schematic diagram ……………...…………….…..….………..……………. -
Page 3: I) Check Battery
Customer Service Guide I) Check Battery Operation: Use a Flat head screwdriver, unlock and remove the seat. Locate the battery harness, unplug the connector then use a volt-meter to check battery condition at battery side. Step (1) Turn and unlock this plastic knob Unlock position Step (2) - Page 4 Customer Service Guide I) Check Battery Unplug the battery connector (RED) underneath the seat Step (3) Step (4)
- Page 5 Customer Service Guide I) Check Battery Step Reading Judgment: 6.0 V ~ 6.6 V – Good condition 5.6 V ~ 5.9 V – Proceed to Recharge 5.5 V – Battery to be recharged if after the stipulated recharging time, voltage has not increased, the Battery needs replacement Below 5.5 V –...
-
Page 6: Ii) Check Wiring Condition
Customer Service Guide II) Check Wiring Connection Operation: There are totally two locations of connection should be checked. A. Motor/Gearbox : Follow above (Point I) to remove the seat, locate the Gearbox harness underneath. Check the white connector of Gearbox underneath the seat... - Page 7 Customer Service Guide II) Check Wiring Connection B. Dashboard connections : Access the plugs underneath then check the wiring connections. Locate the connectors for dashboard which near the right front wheel Step (1) Step (2) There are three connectors (only two connectors if street car version) for all the electronic functions, check any loose connection or not...
-
Page 8: Iii) Check Foot Pedal
Customer Service Guide III) Check Foot Pedal Operation: Follow below procedures to check the Foot Pedal connection. Step (1) Tip over the vehicle and pull out the Foot Pedal cover by flat head screwdriver from its right side Empty (front) Step (2) Pink... - Page 9 Customer Service Guide III) Check Foot Pedal Snap back in place Step Slide in the Foot Pedal into Chassis from right side...
-
Page 10: Iv) Gearbox Replacement
Customer Service Guide IV) Gearbox Replacement Operation: Follow below steps to take apart the gearbox completely for replacing. Unplug the gearbox connector (white color) underneath the seat Step (1) Right rear wheel only Step (2) Use flat head screwdriver to remove the rim by detaching the latches... - Page 11 Customer Service Guide IV) Gearbox Replacement Step (3) There are five latches as showed Step (4) Use a flat head screwdriver to remove the snap pin from axle...
- Page 12 Customer Service Guide IV) Gearbox Replacement Well keep all the small stuffs when processing Step (5) Step (6) Cut the cable tie that holding the gearbox in place...
- Page 13 Customer Service Guide IV) Gearbox Replacement Step (7) Slide the rear wheel out from axle Step (8) Slide the gearbox out from axle...
- Page 14 Customer Service Guide IV) Gearbox Replacement Step Replace the whole gearbox sub-assembly with a good one Reverse above other procedures to re-assemble back the vehicle...
-
Page 15: V) Door Replacement
Customer Service Guide V) Door Replacement Operation: Follow below steps to take apart and replace the opening door completely. Step (1) After remove the dashboard, unscrew these two screws to remove the damaged door Step (2) Replace the whole gearbox sub-assembly with a good one Reverse above other procedures to re-assemble back the vehicle... -
Page 16: Vi) Dashboard Replacement
Customer Service Guide VI) Dashboard (Siren Lights) Replacement Operation: Follow below steps to take apart and replace the whole dashboard assembly. Step (1) Unscrew the steering wheel from left hand side Step (2) Remove the steering wheel from steering column... - Page 17 Customer Service Guide VI) Dashboard (Siren Lights) Replacement Step (3) Unscrew these two screws for dashboard fastening Step (4) Unplug all the connectors near the right front wheel...
- Page 18 Customer Service Guide VI) Dashboard (Siren Lights) Replacement Step (5) Locate the two latches underneath the dashboard as below Bottom view of Dashboard assembly Step (6) Left Right...
- Page 19 Customer Service Guide VI) Dashboard (Siren Lights) Replacement Step (7) Unlock and remove the dashboard by releasing the two latches underneath Step (8) Then replace the whole dashboard assembly (including Siren lights) with a good one Reverse above other procedures to re-assemble back the vehicle...
-
Page 20: Vii) Warning Stickers
Customer Service Guide VII) Warning Stickers Operation: Check and re-put the damaged warning stickers after repairing. Behind the seat... - Page 21 Customer Service Guide VII) Warning Stickers Behind the seat...
- Page 22 Customer Service Guide VII) Warning Stickers Below the seat...
- Page 23 Customer Service Guide VII) Warning Stickers Battery harness...
-
Page 24: Viii) Schematic Diagram
Customer Service Guide VIII) Wirings Schematic... -
Page 25: Ix) Exploded View
Customer Service Guide IX) Exploded View... - Page 26 Customer Service Guide Due to the construction design is exactly the same, so this Service Guide is commonly used for below items : 6V Tahoe Fire Truck, 6V Yukon Police and the related Street Style Versions...
