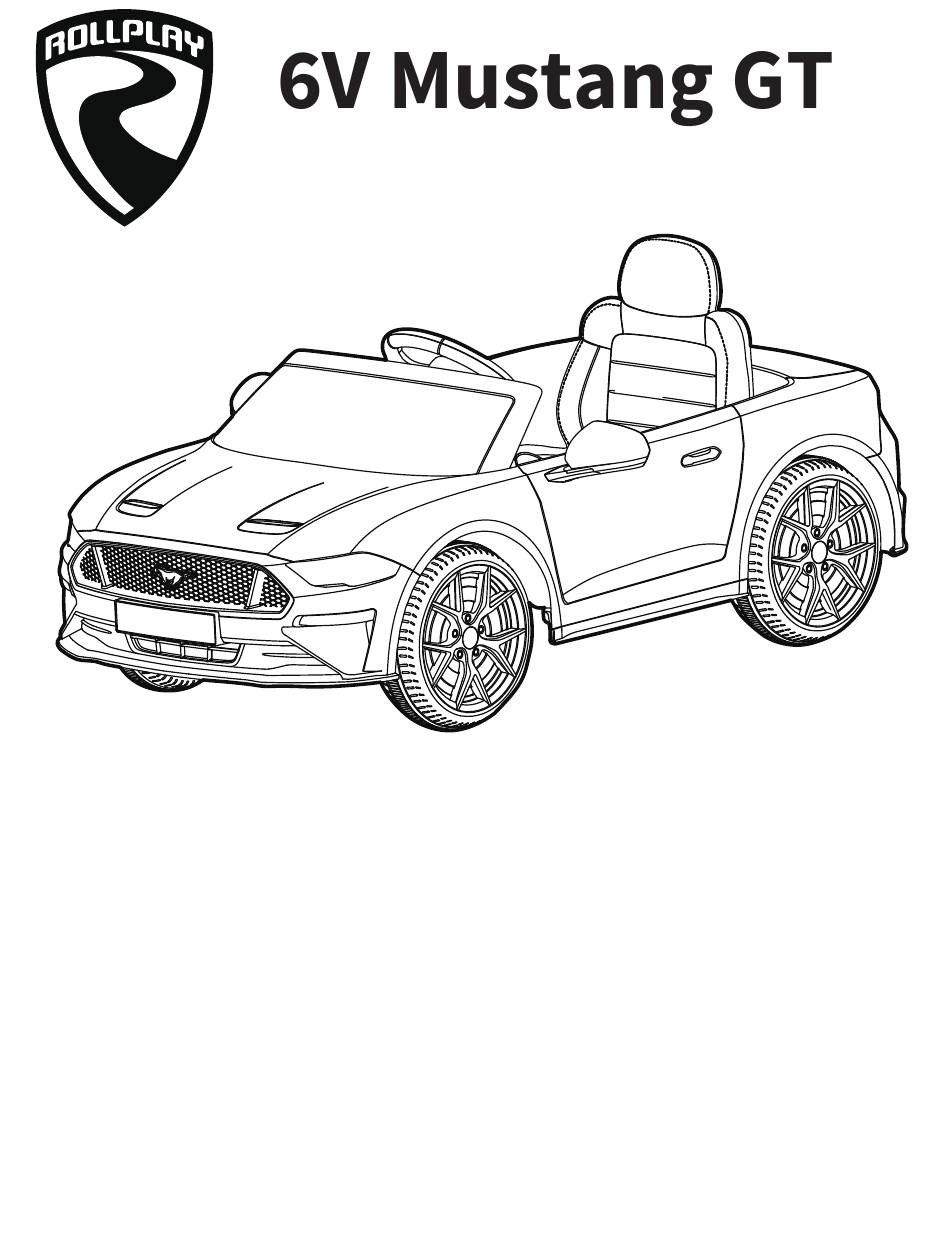

Owner's Manual and Assembly Instructions
Model #: W441, W441AC-A01, W441AC-A02, W441AC-A03
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Email customerservice@rollplay.com for
assistance and replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rollplay W441
Summary of Contents for Rollplay W441
- Page 1 Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colors may vary. Do not return to store. Email customerservice@rollplay.com for assistance and replacement parts. IMPORTANT:...
- Page 2 Introduction Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Keep your sales receipt or register your product at www.rollplay.com.
- Page 3 E-mail Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.com as we may require proof of purchase. customerservice@rollplay.com Read this entire manual to ensure proper assembly and safe operation of the vehicle.
-
Page 4: Table Of Contents
Table of Contents Safety ............5 Parts ............7 Charging Instructions ......8 Assemble the Front Wheels ....9 Assemble the Left Rear Wheel ....10 Assemble the Right Rear Wheel ..... 11 Attach the Steering Wheel ...... Assemble the Windshield ....... Attach the Mirrors ........ -
Page 5: Safety
Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 35 kg (77 lbs). •... - Page 6 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead components. DO NOT open the battery. • Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs. If the chemical is on the skin, immediately give the person water or milk.
-
Page 7: Parts
Parts Helpful Tips: 1. Parts 5,7,11,12,14,16 and 18 are located in the blister pack 2. Spare parts: 2 screws 3. The washers are located on the axles. 1. Manual 7. Steering Wheel Nut 14. Snap pins (6) 2. Battery (Located in the 8. -
Page 8: Charging Instructions
Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: Seat 1. Ensure the car is stopped and the power switch is turned off. 2. -
Page 9: Assemble The Front Wheels
Assemble the Front Wheels Correct Snap Pin Installation Small washer Small washer Helpful Tips: 1. The side of the wheel with rectangular tabs should face outward and the side marked “Front Wheel” faces inwards. Front wheel Snap pin Wheel cover Front Wheels: 1. -
Page 10: Assemble The Left Rear Wheel
Assemble the Left Rear Wheel Rear wheel Snap pin Large washer Inner wheel spacer Large washer Wheel cover Left Rear Wheel: Slide the large washer onto the rear axle. Slide the inner wheel spacer onto the axle. 3. Slide the left rear wheel onto the left rear axle. The side with the gear teeth faces inward. -
Page 11: Assemble The Right Rear Wheel
Assemble the Right Rear Wheel Large washer Wheel cover Rear wheel Snap pin Right Rear Wheel: 1. Slide the right rear wheel onto right rear wheel axle. The side with gear teeth faces inward. (Note: the gear teeth must engage with the gear box.) 2. -
Page 12: Attach The Steering Wheel
Attach the Steering Wheel 1. Locate the steering wheel screw and nut from blister box. 2. Plug the steering wheel connector (F) into the dashboard connector (E). 3. Carefully slide wires into dashboard to avoid damage. Insert the steering wheel onto the steering rod, and align the holes on the wheel with the holes on the rod. -
Page 13: Assemble The Windshield
Assemble the Windshield Windshield 1. Align the windshield with the slots between the dashboard and the body. 2. Push lightly on the windshield until it snaps into place. -
Page 14: Attach The Mirrors
Attach the Mirrors Mirrors 1. Insert the left mirror into the slot on the left door near the windshield. 2. Push down on the mirror until it snaps into place. 3. Repeat steps 1-2 for the right mirror. -
Page 15: Assemble The Seat
Assemble the Seat Seat 1. Position the seat over the battery compartment. 2. Slide in the latches on the back of the seat into the slots on the body of the car. 3. Use a coin or screwdriver to turn the seat lock clockwise to lock the seat. -
Page 16: Open The Door
Open the Door Left Door Push the driver's side door out to open it. The passenger side door does not open. -
Page 17: Product Features
Product Features Dashboard light Shifter MP3 Jack Battery Life Tuning lndicator Reset Volume Dial Power Indicator Button Foot Pedal Power Button Sound Buttons Power Button Push the power button to turn on the car. The dashboard light will turn on when the car is on. -
Page 18: Battery Maintenance
Battery Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • time. • Recharge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours. -
Page 19: General Care
General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 23 for more information. -
Page 20: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Battery is low Recharge the battery Vehicle does not run Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors... - Page 21 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors connectors are securely attached. If wires start are loose, contact Customer Service “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
-
Page 22: Fcc Information
FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 23: Service And Repairs
Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.com. -
Page 24: Warranty
This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you. -
Page 25: Product Registration
Product Registration First Name: Last Name: Title: Address: City: State: Zip Code: Email: Phone: Date of Purchase: Product Name: Model Number: Serial Number: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
