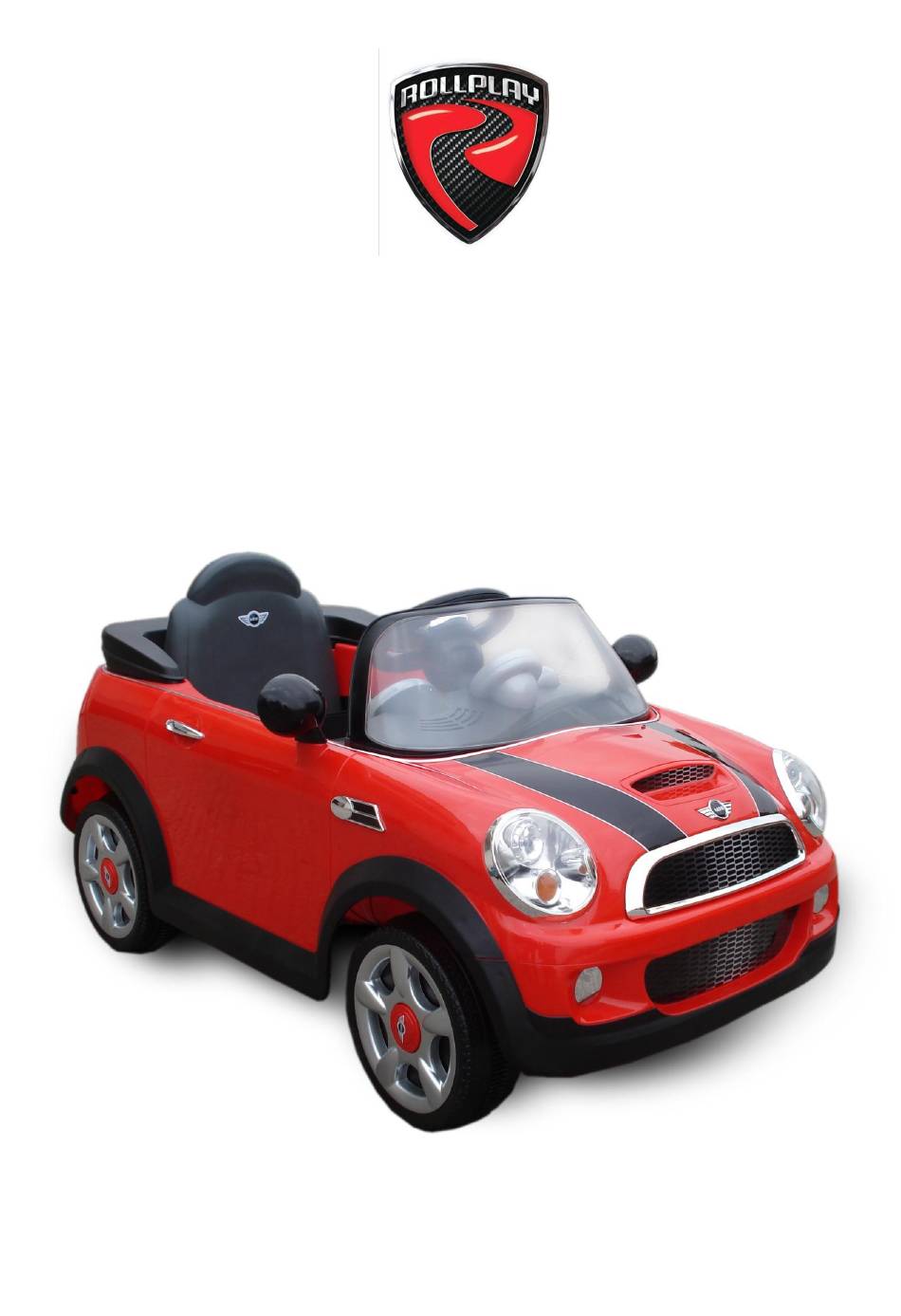

6V Mini Cooper S
Customer Service Guide
1
MMXII © Copyright Goodbaby Group (gbinternational)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6V Mini Cooper S and is the answer not in the manual?

Questions and answers

Summary of Contents for Rollplay 6V Mini Cooper S

  • Page 1 6V Mini Cooper S Customer Service Guide MMXII © Copyright Goodbaby Group (gbinternational)
  • Page 2: Table Of Contents

    Customer Service Guide Contents I) Check Battery …………………………..........3 II) Check Wiring Condition ……………………………..………………………. 5 III) Check Foot Pedal ………………………………………………………….….. 8 IV) Gearbox Replacement …………………………………………..…………… 10 V) Headlights Replacement .…………………………..…….……..….………. 14 VI) Schematic diagram ……………..…………….…..….………..……………. 16 VII) Exploded View …………………………..…..….……….……..…….…… 17...
  • Page 3: I) Check Battery

    Customer Service Guide I) Check Battery Operation: Use a Flat head screwdriver, unlock and remove the seat. Locate the battery harness, unplug the connector then use a volt-meter to check battery condition at battery side. Step (1) Unlock these two plastic knobs Step (2) Unplug the battery harness (RED) after seat removed...
  • Page 4 Customer Service Guide I) Check Battery Step Reading Judgment: 6.0 V ~ 6.5 V – Good condition 5.6 V ~ 5.9 V – Proceed to Recharge 5.5 V – Battery to be recharged if after the stipulated recharging time, voltage has not increased, the Battery needs replacement Below 5.5 V –...
  • Page 5: Ii) Check Wiring Condition

    Customer Service Guide II) Check Wiring Connection Operation: There are totally two positions of connections should be checked. A. Motor/Gearbox : Follow above (Point I) to remove the seat, locate the Gearbox harness underneath. Check the harness of Gearbox which is in white color...
  • Page 6 Customer Service Guide II) Check Wiring Connection B. Functional Switches : Access all the functional switches which are located at the bottom side of Shifter per below procedures. Step (1) Main function switches are located at underside of Shifter Step (2) Turn over the vehicle, unscrew these two screws to remove the wirings cover...
  • Page 7 Customer Service Guide II) Check Wiring Connection Check the terminal connections of Shifter Front Rear Single Blue Step (3) Single Black Double Red Black Double Black Single Red Red & Blue Step (4) Power switch (leave the empty blade at the front) Reverse above procedures to re-assemble back the vehicle...
  • Page 8: Iii) Check Foot Pedal

    Customer Service Guide III) Check Foot Pedal Operation: Follow below procedures to check the Foot Pedal connection. Step (1) Turn over the vehicle and pull out the Foot Pedal cover by screwdriver from right side Blue (front) White (middle) Step (2) Red (rear)
  • Page 9 Customer Service Guide III) Check Foot Pedal ② Snap back in place Step ① Slide in the Foot Pedal into Chassis from right side...
  • Page 10: Iv) Gearbox Replacement

    Customer Service Guide IV) Gearbox Replacement Operation: Follow below steps to take apart the gearbox completely for replacing. Use a flat head screwdriver to remove the hub cap (Rear left wheel only) Step (1) Step (2) Use the same screwdriver to remove the snap-pin from axle as showed...
  • Page 11 Customer Service Guide IV) Gearbox Replacement Step (3) Slide the rim and rear wheel out from axle Follow above (Point IIB) to access the Motor harness underneath the seat, then unplug it before removing the gearbox Step (4)
  • Page 12 Customer Service Guide IV) Gearbox Replacement Step (5) Unplug the Headlights connector plugs located at middle of bottom side Unscrew the two wiring clips to release the harness completely Step (6)
  • Page 13 Customer Service Guide IV) Gearbox Replacement Step (7) Slide the gearbox out from axle Step (8) Advance design for easy to replace the whole gearbox by simple steps now Reverse above procedures to re-assemble back the vehicle...
  • Page 14: V) Headlights Replacement

    Customer Service Guide V) Headlights Replacement Operation: Follow below procedures to remove and replace the Headlights assembly. Step (1) Pull the Headlight out from both sides of brackets Unplug the Headlight connectors at middle of bottom side Step (2)
  • Page 15 Customer Service Guide V) Headlights Replacement Step Unscrews two wiring clips to remove the Headlights Assembly...
  • Page 16: Vi) Schematic Diagram

    Customer Service Guide VI) Wirings Schematic...
  • Page 17: Vii) Exploded View

    Customer Service Guide VII) Exploded View...
