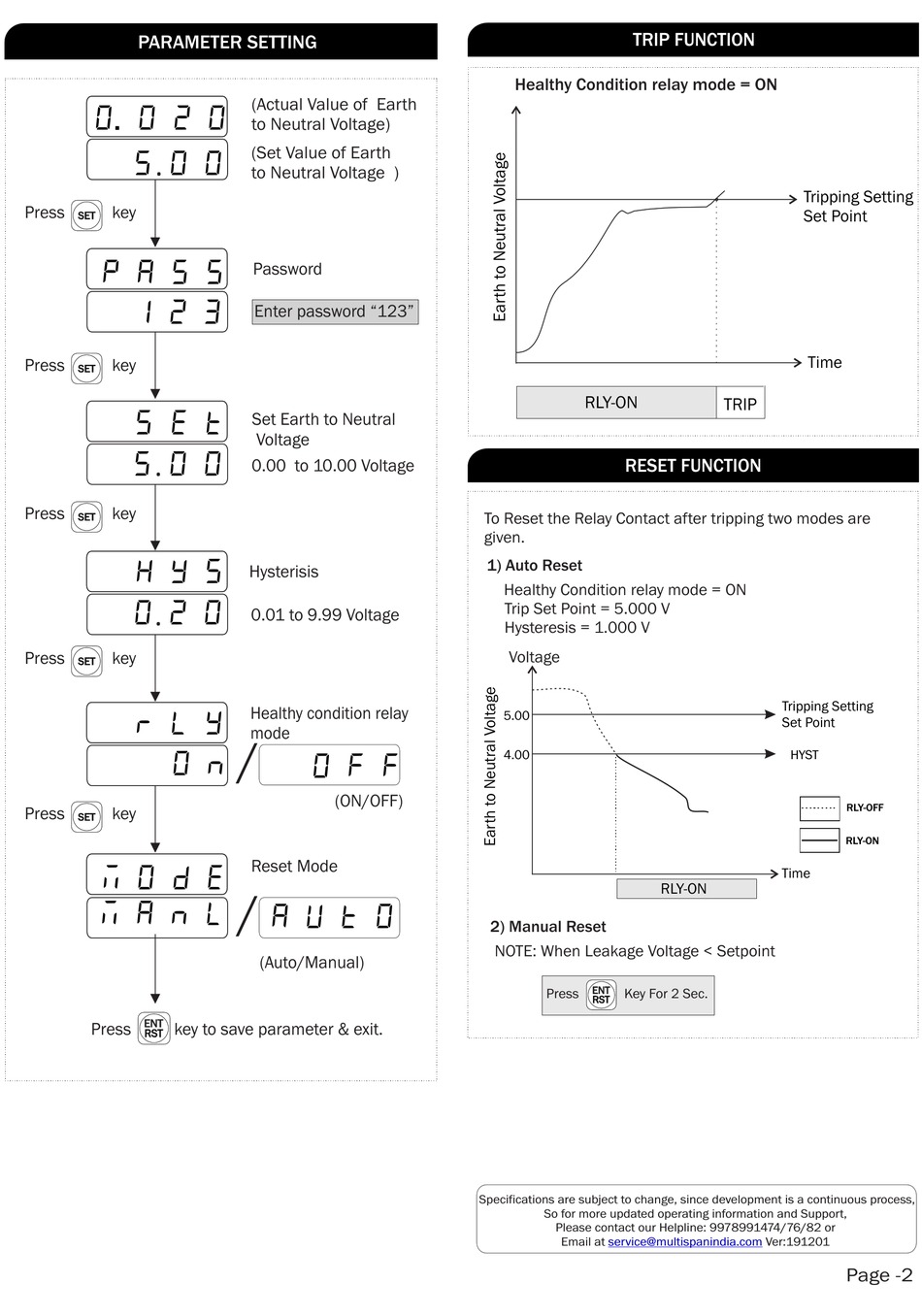

PARAMETER SETTING
0. 0 2 0
5 0 0
.
Press key
SET
P A S S
1 2 3
Press key
SET
S E T
5 0 0
.
Press key
SET
H Y S
0 2 0
.
Press key
SET
R L Y
O N
Press key
SET
M O D E
M A N L
ENT
Press key to save parameter & exit.
RST
(Actual Value of Earth
to Neutral Voltage)
(Set Value of Earth
to Neutral Voltage )
Password
Enter password "123"
Set Earth to Neutral
Voltage
0.00 to 10.00 Voltage
Hysterisis
0.01 to 9.99 Voltage
Healthy condition relay
mode
/
O F F
(ON/OFF)
Reset Mode
/
A U T O
(Auto/Manual)
TRIP FUNCTION
Healthy Condition relay mode = ON
RLY-ON
RESET FUNCTION
To Reset the Relay Contact after tripping two modes are
given.
1) Auto Reset
Healthy Condition relay mode = ON
Trip Set Point = 5.000 V
Hysteresis = 1.000 V
Voltage
5.00
4.00
2) Manual Reset
NOTE: When Leakage Voltage < Setpoint
ENT
Press Key For 2 Sec.
RST
Specifications are subject to change, since development is a continuous process,
So for more updated operating information and Support,
Please contact our Helpline: 9978991474/76/82 or
Email at service@multispanindia.com
Tripping Setting
Set Point
Time
TRIP
Tripping Setting
Set Point
HYST
Time
RLY-ON
Ver:191201
RLY-OFF
RLY-ON
Page -2
