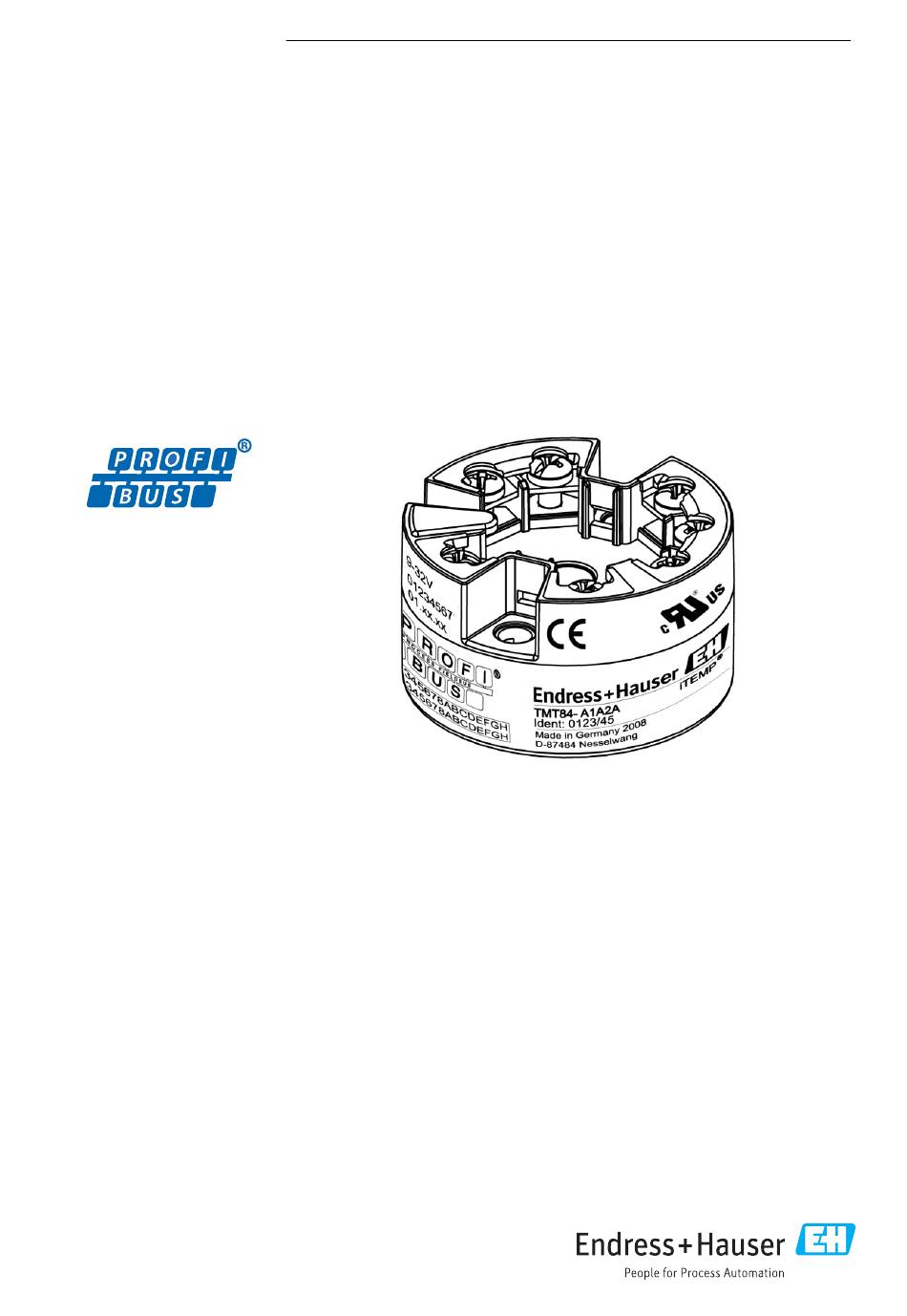

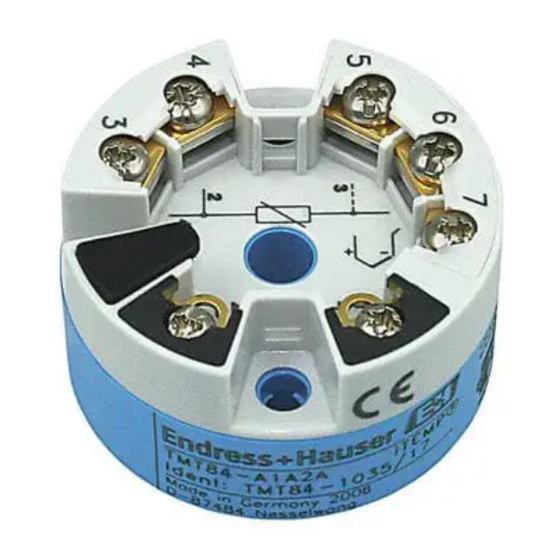

These instructions are Brief Operating Instructions; they do not replace the Operating Instructions included in the scope of supply. Detailed information can be found in the Operating Instructions and the additional documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
Page 2
TMT84 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
Basic safety instructions iTEMP TMT84 Symbols used 1.2.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.
TMT84 Basic safety instructions The operating personnel must fulfill the following requirements: ‣ Being instructed and authorized according to the requirements of the task by the facility' s owner-operator ‣ Following the instructions in these Operating Instructions Intended use The device is a universal and user-configurable temperature transmitter with for a resistance thermometer (RTD), thermocouples (TC), resistance and voltage transmitters.
(www.endress.com/deviceviewer): All data relating to the device and an overview of the Technical Documentation supplied with the device are displayed. • Enter the serial number on the nameplate into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information about the device and the technical documentation pertaining to the device is displayed.
Approval in hazardous area with number of the relevant Ex documentation (XA...) Approvals with symbols Order code and manufacturer ID 3.2.2 Name and address of manufacturer Name of manufacturer: Endress+Hauser Wetzer GmbH + Co. KG Address of manufacturer: Obere Wank 1, D-87484 Nesselwang or www.endress.com Address of manufacturing plant: See nameplate...
Installation iTEMP TMT84 ® • Certified according to PROFIBUS PA Profile 3.02 • The device can also be operated with certified devices of other manufacturers (interoperability) Installation Installation conditions 4.1.1 Mounting location Head transmitter: • In the terminal head, flat face, as per DIN EN 50446, direct mounting on insert with cable entry (middle hole 7 mm) •...
Page 9
TMT84 Installation 4.2.1 Mounting the head transmitter Item B Item A . 7 2 i n ) Item C . 7 2 i n ) A0039675-EN 2 Head transmitter mounting (three versions) Procedure for mounting in a terminal head, Item A: Open the terminal head cover (8) on the terminal head.
Page 10
Installation iTEMP TMT84 21 mm (0.83 in) . 7 2 i n ) 6.5 mm (0.25 in) . 5 1 i n ) A0024604 3 Dimensions of angle bracket for wall mount (complete wall mounting set available as accessory) Procedure for mounting in a field housing, Item B: Open the cover (1) of the field housing (4).
Page 11
TMT84 Installation Mounting typical of North America A0008520 4 Head transmitter mounting Thermometer design with thermocouples or RTD sensors and head transmitter: Fit the thermowell (1) on the process pipe or the container wall. Secure the thermowell according to the instructions before the process pressure is applied.
When connecting Ex-certified devices, please take special note of the instructions and connection schematics in the Ex-specific supplement to these Operating Instructions. Please contact Endress+Hauser' s representative if you have any questions. ‣ Do not occupy the display connection. Connecting other devices can destroy the electronics.
TMT84 Electrical connection Connecting the measuring device Terminal assignment Sensor input 2 Bus connection Sensor input 1 RTD, Ω: 3- and 2-wire RTD, Ω: 4-, 3- and 2-wire and supply voltage (black) TC, mV (black) TC, mV white white...
Page 14
Electrical connection iTEMP TMT84 Sensor input 1 RTD or resistance transmitter, four-wire Thermocouple (TC), voltage transmitter Connecting to spring terminals A0039468 6 Spring terminal connection, using the example of a head transmitter Item A, solid wire: Strip wire end.
Page 15
TMT84 Electrical connection Item C, releasing the connection: Press down on the lever opener. Remove the wire from the terminal. Release lever opener. 5.2.2 Fieldbus connection Fieldbus cable specification as per IEC 61158-2 (MBP), see the Operating Instructions for details.
Electrical connection iTEMP TMT84 Shielding and grounding Optimum electromagnetic compatibility (EMC) of the fieldbus system can only be guaranteed if the system components and, in particular, the lines are shielded and the shield forms as complete a cover as possible.
TMT84 Operation options Device condition and specifications Notes Do the cables used meet the required specifications? Fieldbus cable, Sensor cable, → 13 Do the cables have adequate strain relief? Are the power supply and signal cables connected correctly? →...
Page 18
Operation options iTEMP TMT84 6.1.2 Local operation NOTICE ‣ ESD - electrostatic discharge. Protect the terminals from electrostatic discharge. Failure to observe this may result in the destruction or malfunction of parts of the electronics. 1: Connection to head transmitter...
PROFIBUS® PA functions and device-specific parameters are configured via fieldbus communication. The following configuration systems are available for this purpose: • Endress+Hauser FieldCare (DTM) • SIMATIC PDM (EDD) The step-by-step procedure for commissioning the fieldbus functions for the first time is described in detail in the comprehensive Operating Instructions, as is the configuration of device-specific parameters.
