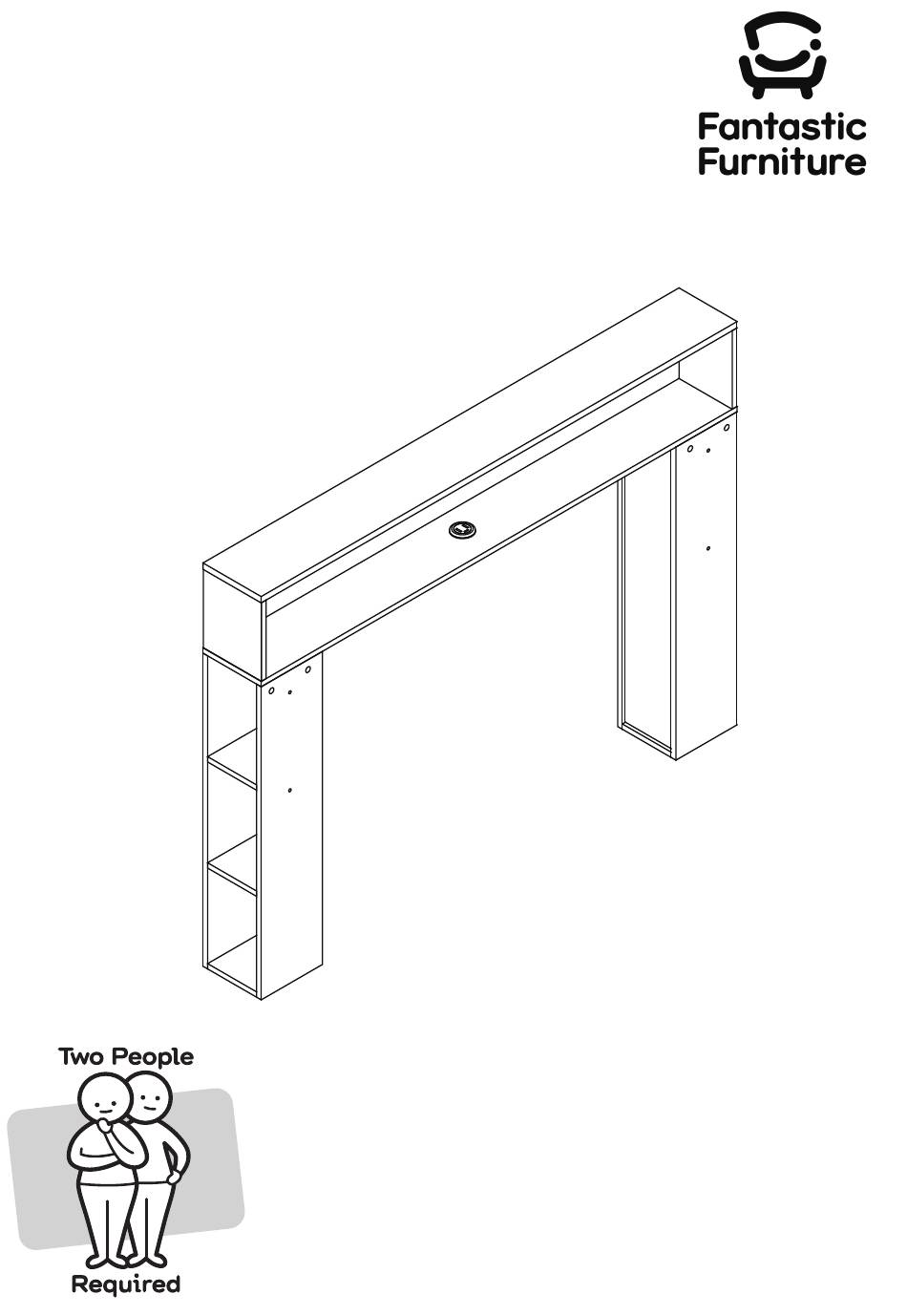

- Page 1 Version 1.0 Como 2.0 Bed Head Double fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love！ Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need to assemble the product Top Panel (P1) Right Side Panel (P4) DO NOT USE Back Panel (P5) Other tools you need: Phillips head screwdriver; Hammer Side Panel Left Side (P7) Bottom Panel Panel (P2) (P3) Shelf Panel (P8) Shelf Parts list... - Page 5 Step 1 You will need 2 x Cam Bolts Phillips Head (H3) Screwdriver (P3) (P4) Attach 2 x Cam Bolts (H3) to Side Panels (P3, P4) as shown. Tighten with the Phillips Head Screwdriver. Step 2 (P4) This is how a cam nut works..The head of the cam You will need bolt goes into the...
- Page 6 Step 3 You will need 6 x Dowels 5 x Cam Bolts (H1) (H3) Phillips Head Screwdriver (P1) Insert 6 x Dowels (H1) into the holes of Top Panel (P1). Attach 5 x Cam Bolts (H3) to Top Panel (P1) by tightening with the Phillips Head Screwdriver. (P4) Step 4 You will need...
- Page 7 Step 5 You will need 1 x USB 3 x Small Connector Screws (H9) (H8) (P2) Phillips Head Screwdriver Separate Cover from USB HUB as shown. Attach 1x USB HUB to Bottom Panel (P2) with 3 x Small Screws (H9) by tightening with a Philips Head Screwdriver.
- Page 8 Step 7 You will need 4 x Dowels 8 x Cam Bolts (P2) (H1) (H3) Phillips Head Screwdriver Insert 4 x Dowels (H1) into the holes of Bottom Panel (P2). Attach 8 x Cam Bolts (H3) to Bottom Panel (P2) as shown. Tighten with the Phillips Head Screwdriver. Step 8 You will need 24 x Cam Bolts...
- Page 9 Step 9 (P8) You will need (P8) 6 x Dowels 12 x Cam Nuts (H1) (H4) (P10) Phillips Head Screwdriver (P7) Insert 3 x Dowels (H1) into the holes of Side Panel (P7). Insert 6 x Cam Nuts (H4) into the holes of Shelf Panels (P8, P10). Rotate the cam nuts so the arrows point towards the incoming cam bolts.
- Page 10 Step 11 (P9) (P6) (P7) Insert Back Panel (P9) into the grooves of Side Panels (P6, P7) as shown. Repeat this step for the second Back Panel (P9). Step 12 You will need (P6) (P7) 8 x Cam Nuts Phillips Head (H4) Screwdriver (P7)
- Page 11 Step 13 You will need 8 x Plastic Hammer Glides (H5) (P7) (P6) (P7) (P6) Attach 8 x Plastic Glides (H5) to the end of Side Panels (P6, P7) by gently tapping with a hammer. Step 14 With assistance, carefully turn the assembled unit into an upright position. fantasticfurniture.com.au Page 11...
-
Page 12: Job Complete
1 x Allen Key 4 x Bolts (H6) (H7) Connect the bed head to the Como 2.0 Double Bed using 4 x Bolts (H6) and the Allen Key (H7) as shown. Job Complete! In the interest of our environment please dispose of all packaging thoughtfully.
