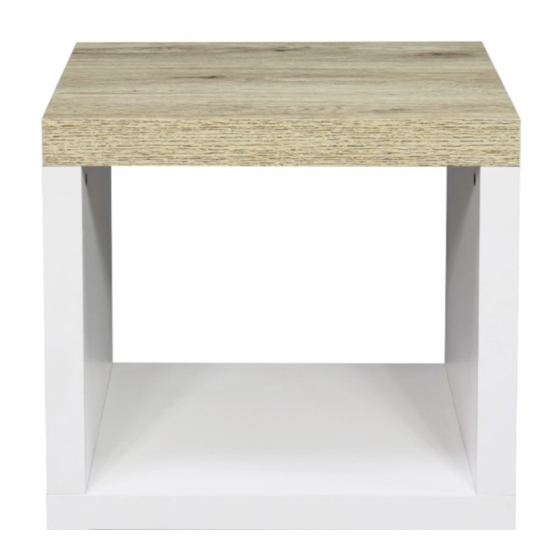

Sadie Side Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
screw
dowel
x4
x8
D
E
locking
plastic
nut x16
glide x8
Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
bolt
x16
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Sadie Side
Summary of Contents for Mocka Sadie Side
- Page 1 Hardware Supplied Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Sadie Side Table Assembly Instructions Insert 4x bolts (C) into panel [1] as shown. Tighten with a screwdriver. Insert 8x bolts (C) into panel [2] as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [3] to panel [1] with 4x dowels (A) and secure Attach panel [2] to panels [3] with 4x screws (B) and 4x dowels (A). with 4x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Insert 2x bolts (C) into panel [5] as shown. Tighten with a screwdriver. Tighten with a screwdriver. Attach 8x plastic glide (E) to panels [4] and [5] using a hammer. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Once assembled lift furniture into place, do not drag. You’re done, enjoy! Attach panels [4] and [5] to panel [2], secure with 8x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
