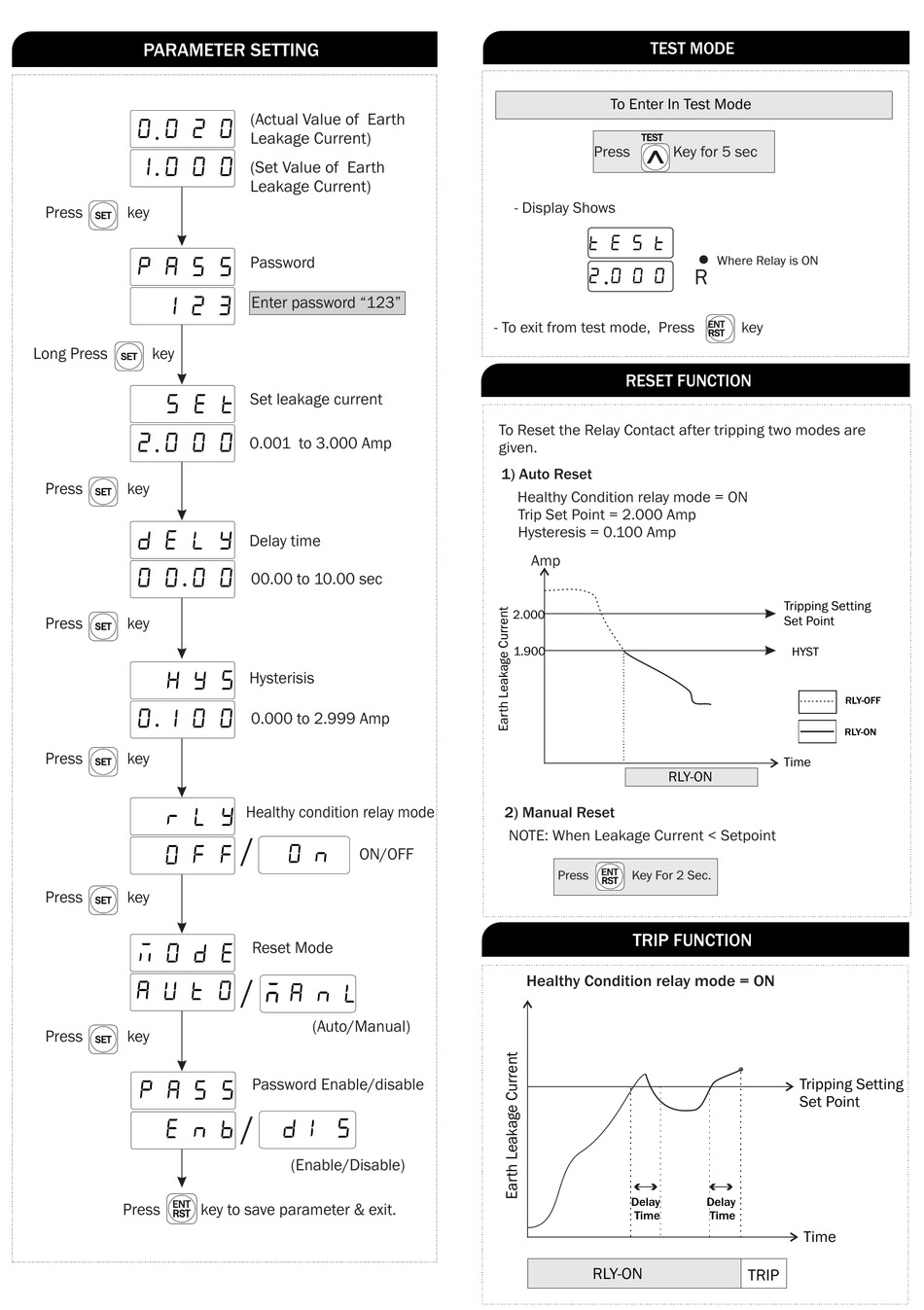

MULTISPAN ELR-19N Quick Start Manual page 3

PARAMETER SETTING
0 0 2 0
1 0 0 0
Press key
SET
p a s s
1 2 3
Long Press key
SET
s e t
2 0 0 0
Press key
SET
d e L y
0 0 0 0
Press key
SET
H Y S
0 1 0 0
Press key
SET
R L Y
O F F
Press key
SET
M O D E
A U T O
Press key
SET
P A S S
E N B
ENT
Press key to save parameter & exit.
RST
(Actual Value of Earth
Leakage Current)
(Set Value of Earth
Leakage Current)
Password
Enter password "123"
Set leakage current
0.001 to 3.000 Amp
Delay time
00.00 to 10.00 sec
Hysterisis
0.000 to 2.999 Amp
Healthy condition relay mode
/
O N
ON/OFF
Reset Mode
/
A N L
(Auto/Manual)
Password Enable/disable
/
d I s
(Enable/Disable)
TEST MODE
To Enter In Test Mode
TEST
Press
- Display Shows
T e S T
2 0 0 0
- To exit from test mode, Press
RESET FUNCTION
To Reset the Relay Contact after tripping two modes are
given.
1) Auto Reset
Healthy Condition relay mode = ON
Trip Set Point = 2.000 Amp
Hysteresis = 0.100 Amp
Amp
2.000
1.900
RLY-ON
2) Manual Reset
NOTE: When Leakage Current < Setpoint
ENT
Press Key For 2 Sec.
RST
TRIP FUNCTION
Healthy Condition relay mode = ON
Delay
Time
RLY-ON
Key for 5 sec
Where Relay is ON
R
ENT
key
RST
Tripping Setting
Set Point
HYST
RLY-OFF
RLY-ON
Time
Tripping Setting
Set Point
Delay
Time
Time
TRIP
