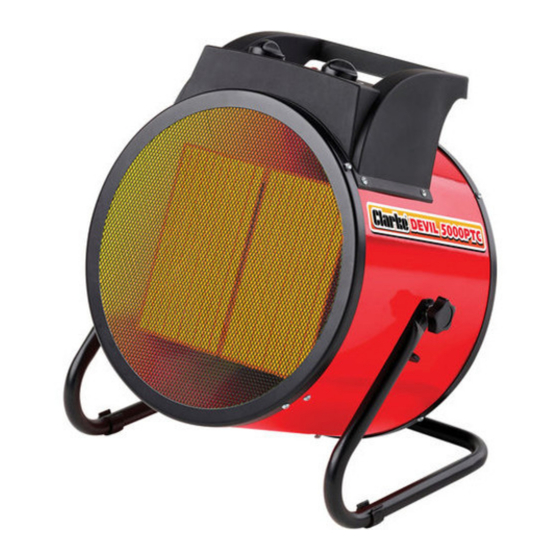

- Page 1 Only suitable for well insulated areas and not designed to be the primary heat source 400V ELECTRIC FAN HEATER MODEL NO: DEVIL 5000PTC PART NO: 6925340 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0621 rev 1...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. - Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only Manual heat charge control with integrated thermostat...
-
Page 4: Safety Advice
SAFETY ADVICE Make sure that you read, understand and comply with the following. ELECTRICAL SAFETY WARNING: THIS HEATER MUST BE EARTHED • Regularly inspect the power cable / plugs to be used with this heater and do not use the heater it the power cable is damaged. •... -
Page 5: Common Sense
POSITIONING WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL, LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC. • This heater is designed for indoor use only. • DO NOT place the heater close to a bath, wash basin, shower, swimming pool or any other water-filled area or wet surface. -
Page 6: Service And Repairs
Cleaning and Maintenance. • ONLY recommended parts should be used. Unapproved parts may be dangerous and will invalidate the warranty. • DO NOT attempt to repair a damaged heater, contact the CLARKE service department. SERVICE & REPAIRS •... -
Page 7: Electrical Connections
DCL16B extension lead can be used. This is fitted with a red 5 pin 16 amp industrial plug to EN 60309 with 16A socket. (CLARKE part No 6925233). If in any doubt, consult a qualified electrician. DO NOT attempt any electrical repairs yourself. - Page 8 4. Set the mode selector to one of the 3 settings: Fan Only Heat Setting 1 Heat Setting 2 • The heater will take up to three minutes to reach optimum temperature. 5. Once the room reaches the required temperature, turn the thermostat control slowly counter-clockwise until the thermostat clicks, leave the control in this position.
-
Page 9: Troubleshooting
Make sure that the heater grill is not blocked. No other maintenance is required, should you discover any problem with the heater, return it to the CLARKE service department for repair. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 10: Component Parts
COMPONENT PARTS Setting knob Friction pad Thermostat control knob Relay support Lamp cover Blade fastening Control box cover Switch Motor Thermostat Cable clamp Capacitor Power cable/plug Relay Motor bracket Front grille Rear grille Air outlet Temperature sensor Temperature controller Surround Heating element Foot pad Air duct... -
Page 11: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
