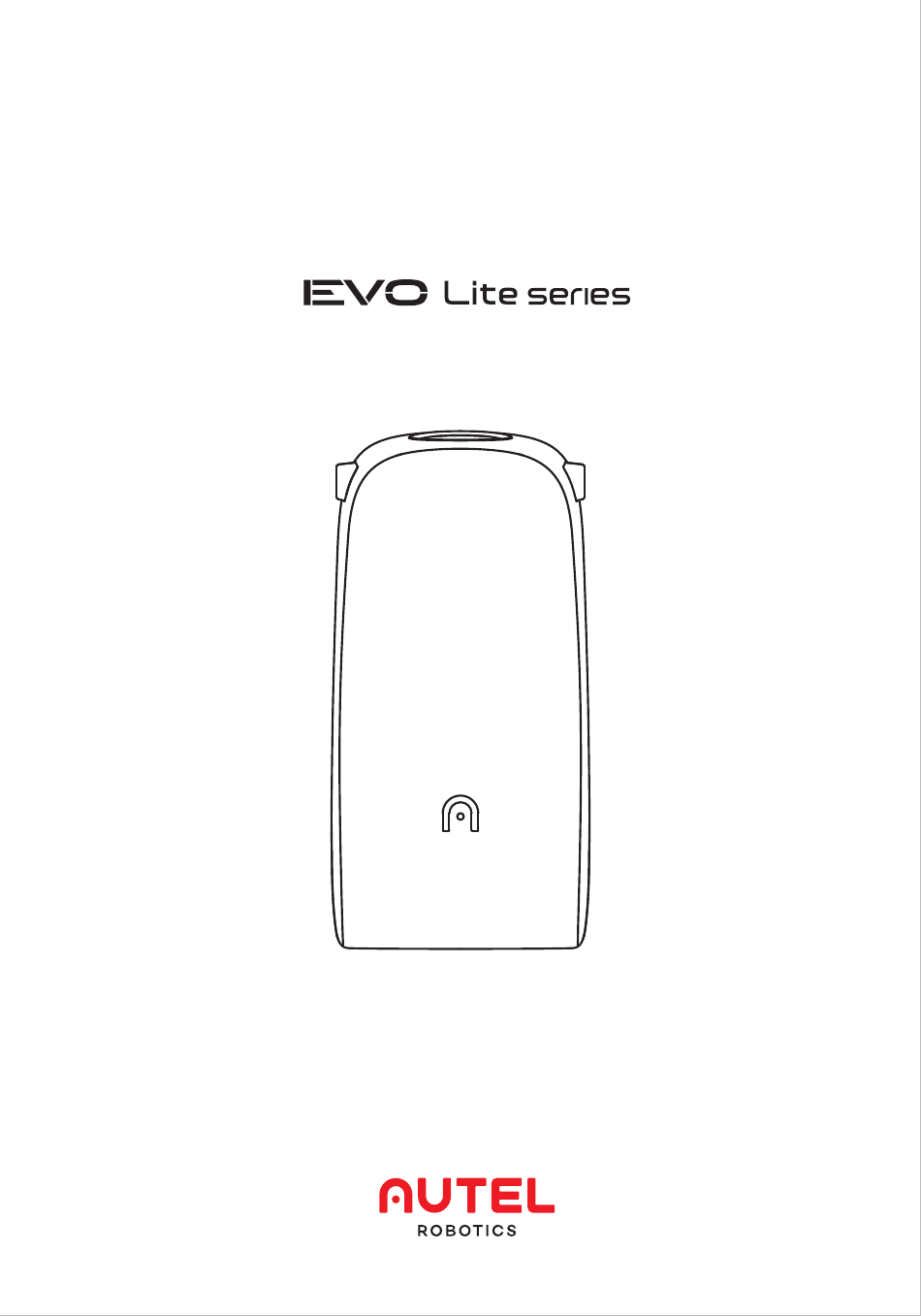

- Page 1 Battery Safe Operation Guidelines...
- Page 2 Battery Safety EVO Lite series is powered by a lithium-ion polymer battery. Improper use of lithium polymer/lithium-ion batteries can be dangerous. Please ensure that all the following battery usage, charging and storage guidelines are strictly followed. Warning • Only use the battery and charger provided by Autel Robotics.
- Page 3 or above 40°C (104°F). If the battery is exposed to extreme temperatures, its service life will be shortened. Extreme temperatures may also cause fire, explosion or other permanent damage. • Exposure to temperatures below 5°C (41°F) will speed up battery discharge.
- Page 4 Battery Storage Avoid placing the battery within close contact of water or heat sources while in storage. Batteries should be stored at room temperature (ideally 22°C to 28°C (72°F to 82°F)) in a dry, well-ventilated area. Other notes are as follows: •...
- Page 5 Turn on the battery Before installing the battery, make sure it is powered off. After installation, press and hold the power button for 3 seconds. The battery level indicator will show the current battery level. Turn off the battery Press and hold the power button for 3 seconds to turn off the battery. If batteries are installed in the craft, LED1 and LED4 will blink 5 times to indicate that the power is being turned off.
- Page 6 Additional Features The following features protect and extend battery life. • Storage self-discharge protection：If the battery is stored in a hot environment or not used for 6 days and the charge level is high, the self-discharge protection will be activated. The battery will be automatically discharged to a safe level.
- Page 7 • Communication.When in use, the vehicle is continuously synchronized with the battery to provide real-time information, including voltage, capacity, current, temperature, etc. • Ultra-low energy mode. If the battery level falls below about 8%, the battery will enter ultra-low power mode to reduce self-consumption of electricity.
- Page 8 Specification Capacity 6175mAh Nominal voltage 11.13V Charging limit voltage 12.75V Battery type Li-Po 3S Energy 68.7Wh Charging ambient temperature 5~45℃ Maximum charging power ©2021-2022 AUTEL ROBOTICS CO., LTD. | ALL RIGHTS RESERVED WWW.AUTELROBOTICS.COM...
