Page 1: Table Of Contents
O P E R A T I N G M A N U A L FIBARO WALL PLUG Type G with USB charger FGWPG-121 CONTENTS v1.0 #1: Description and features #7: Association #2: Basic activation #8: Z-Wave range test #3: Adding the device... - Page 2 Do not dismantle the device! General information about the FIBARO System FIBARO is a wireless smart home automation system, based on the Z-Wave protocol. All of available devices can be controlled through a computer (PC or Mac), smartphone or tablet. Z-Wave devices are not only receivers, but can also repeat the signal, increasing the Z-Wave network’s range.
-
Page 3: 1: Description And Features

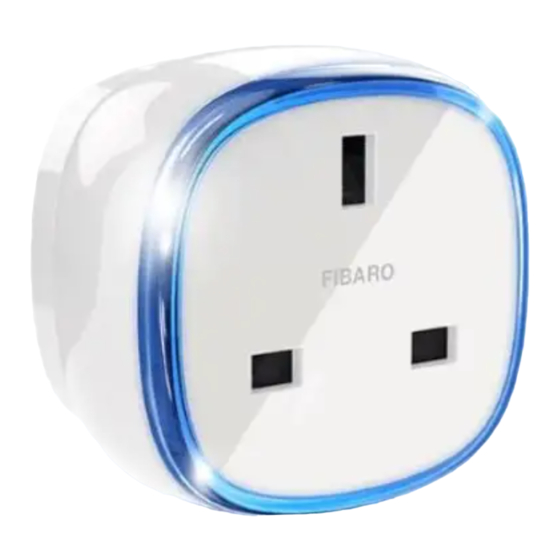

#1: Description and features FIBARO Wall Plug is a remotely controlled plug-in switch with the ability to measure power and energy consumption. It uses a LED frame to visualize the current load and operating mode with colour changing illumination. Our smart plug makes it possible to control electrical devices in a convenient and maintenance-free way. -
Page 4: 2: Basic Activation
#2: Basic activation 1. Plug the device into a socket nearby the main Z-Wave controller. NOTE 2. Set the main controller in (Security/non-Security Mode) add mode When powered, the (see the controller’s manual). device will indicate Z-Wave status with 3. Quickly, triple click the button located on the casing. colour of LED frame: •... -
Page 5: 3: Adding The Device
#3: Adding the device Adding (Inclusion) - Z-Wave device learning mode, allowing to add the device to existing Z-Wave network. To add the device to the Z-Wave network: 1. Plug the device into a socket nearby the main Z-Wave controller. 2. -
Page 6: 4: Removing The Device
#4: Removing the device Removing (Exclusion) - Z-Wave device learning mode, allowing to NOTE remove the device from existing Z-Wave network. Removing the Wall Plug To remove the device from the Z-Wave network: from the Z-Wave net- work restores all the 1. -
Page 7: 5: Operating The Device
#5: Operating the device Controlling the Wall Plug using the button: CAUTION Wall Plug is equipped with a button, which allows to use the menu To avoid risk of electri- and additionally perform the following actions: cal shock, do not op- 1x click: turn controlled device On/OFF, confirm selected menu op- erate the device with tion (if menu is active) - Page 8 3. Release the button after LED frame starts pulsing white. To restore visual indications perform above procedure again. Controlling the Wall Plug with FIBARO Home Center controller: The Wall Plug after successful adding is represented in the home Center interface with two icons. Device allows to turn on and off the device and displays current active power and cumulative en- ergy consumption.
-
Page 9: 6: Power And Energy Consumption
#6: Power and energy consumption The Wall Plug allows to monitor the active power and energy con- sumption. Data is sent to the main Z-Wave controller, e.g. home Center. Measuring is carried out by the most advanced micro-controller tech- nology, assuring maximum accuracy and precision (+/- 1% for loads greater than 5W). -
Page 10: 7: Association
#7: Association Association (linking devices) - direct control of other devices within NOTE the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter Association ensures or scene (may be controlled only through a Z-Wave controller). direct transfer control commands between devices, is The Wall Plug provides the association of three groups: performed without... -
Page 11: 8: Z-Wave Range Test
#8: Z-Wave range test The Wall Plug has a built in Z-Wave network main controller’s range CAUTION tester. To make Z-Wave range test possible, the de- vice must be added Follow the below instructions to test the main controller’s range: to the Z-Wave control- ler. -
Page 12: 9: Z-Wave Specification
#9: Z-Wave specification Endpoint 1: Generic Device Class: GEnERIC_TyPE_SWITCh_BInARy Specific Device Class: SPECIFIC_TyPE_POWER_SWITCh_BInARy Description: represents the main B type socket, allows to turn on/off connected device and measure its active power and en- ergy consumption. Endpoint 2: Generic Device Class: GEnERIC_TyPE_METER Specific Device Class: SPECIFIC_TyPE_SIMPLE_METER Description: represents the uSB port, allows to measure its active power and energy consumption. - Page 13 Multichannel Command Class: Command Class version Secure Endpoint 1 ZWAvEPLuS_InFO [0x5E] SECuRITy [0x98] SECuRITy_2 [0x9F] ASSOCIATIOn [0x85] MuLTI_ChAnnEL_ASSOCIATIOn [0x8E] ASSOCIATIOn_GRP_InFO [0x59] SuPERvISIOn [0x6C] SWITCh_BInARy [0x25] METER [0x32] nOTIFICATIOn [0x71] PROTECTIOn [0x75] Endpoint 2 ZWAvEPLuS_InFO [0x5E] SECuRITy [0x98] SECuRITy_2 [0x9F] ASSOCIATIOn [0x85] MuLTI_ChAnnEL_ASSOCIATIOn [0x8E] ASSOCIATIOn_GRP_InFO [0x59] SuPERvISIOn [0x6C]...
- Page 14 Protection CC: Protection Command Class allows to prevent local or remote control of the device. Type of protection State Description Unprotected - The device is not pro- Local tected, and may be operated normally via the user interface. No operation possible – button can Local not change relay state, any other func- tionality is available (menu)
-
Page 15: 10: Advanced Parameters
FIBARO interface as simple options that may be chosen by selecting the appropriate box. Entering invalid value of parameter will re- In order to configure the Wall Plug (using the FIBARO home Center sult in not setting the controller): value and response with Application Re- 1. - Page 16 ic reports in the Z-Wave controller. NOTE The Wall Plug reports the power load with specified frequency. Below Parameter 11 is not configuration parameters allow to specify how frequently power load relevant for loads un- will be reported. der 5W. 11.
- Page 17 „ON/OFF” ASSOCIATION GROUPS 21. UP value - „On/Off (Power)” association group (3) upper power threshold, used in parameter 23. uP value cannot be lower than a value specified in parameter 22. Available settings: 100-30000 (10.0-3000.0W, step 0.1W) Default setting: 500 (50W) Parameter size: 2 [bytes] 22.
- Page 18 26. THRESHOLD UP value - „On/Off (Power)” association group (3) The value of BASIC SET command frame sent to the devices associat- ed in 3rd group „On/Off (Power)” if power exceeded value of param- eter 21. Available settings: 0-99 or 255 Default setting: Parameter size: 2 [bytes]...
- Page 19 32. Alarm state duration NOTE This parameter specifies the duration of alarm state. If a device send- The alarm may be can- ing an alarm frame through the Z-Wave network sets alarm duration as celed by pressing and well, this settings are ignored. holding the button.
- Page 20 43. LED frame colour at the Z-Wave network alarm detection This parameter defines the illumination colour in case of Z-Wave alarm. Available settings: 0 - illumination turned off completely 1 - no change in colour. LED frame colour is de- termined by settings of parameters 41 or 42 2 - LED frame flashes red/blue/white 3 - white, 4 - red, 5 - green, 6 - blue, 7 - yellow...
-
Page 21: 11: Specifications
#11: Specifications Power supply: 230v AC, 50/60 hz Resistive loads: 13A Rated load Incandescent loads: 8A (continuous load): Inductive general purpose (cosφ = 0.75-0.8): 13A Pilot duty (cosφ < 0.35): 700VA Motor: 750W Electronic ballasts: 3A Rated impulse voltage: 2.5kv Maximum inrush current: 80A (20ms) To be used with G type... -
Page 22: 12: Regulations
All information, including, but not limited to, information regarding the features, functionality, and/or other product specification are subject to change without notice. Fibaro reserves all rights to revise or update its products, software, or documentation without any obligation to no- tify any individual or entity.
