Wohler iAM-AUDIO-1 PLUS User Manual page 50

In Figure 4-4, it can be seen that there are five Presets in the Operator-1 group and
no Presets in the Operator-2 group. The currently selected active Preset for local
operation is shown in red. In Figure 4-4, this is the Preset named SDI-1.

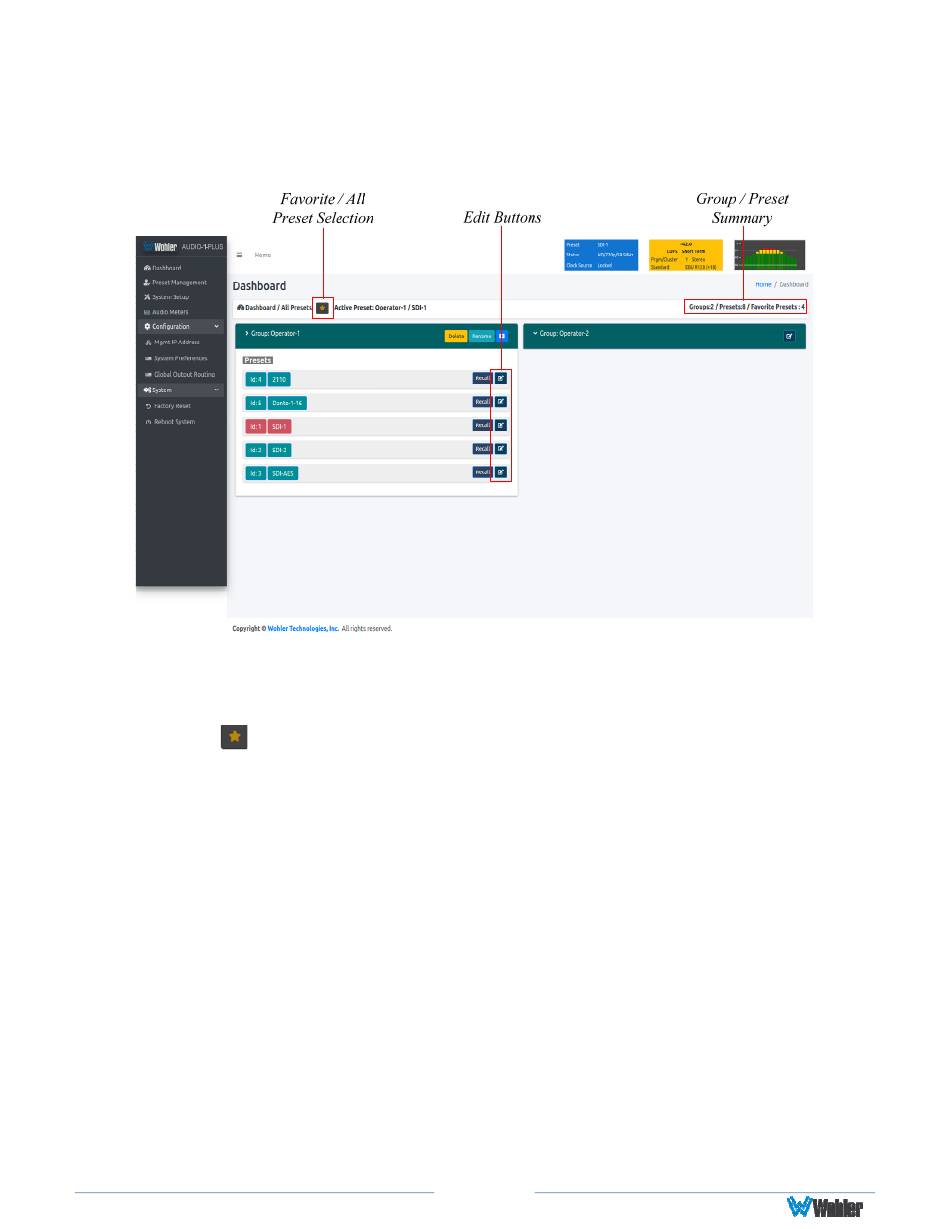

Figure 4–4: Dashboard Preset Recall / Edit
A Group / Preset Summary is shown in the upper right of the screen. This enables
you to see the total number of Groups, Presets and Favorite Presets in the iAM-
AUDIO-1 PLUS.
Use the button, as shown in Figure 4-4, to toggle between Favorite Presets or
All Presets.
Click the Recall button to recall a Preset. To Edit a Preset, click the Edit icon, as
shown in Figure 4-4, to the right of the associated Recall button.
After clicking the Preset Edit button, the screen shown in Figure 4-5 will appear.
Clicking a Group Edit button will cause the screen in Figure 4-6 to appear.
Page 50
