iAM1-12G

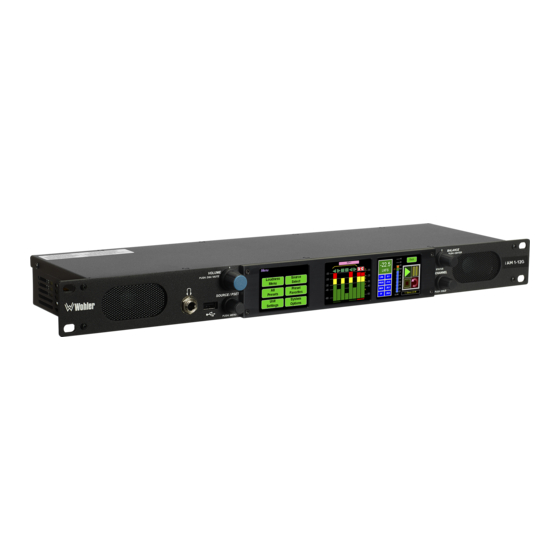

1RU Multi-Channel 12G Audio Monitor

User Guide

Part Number 821838, Revision A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iAM1-12G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wohler iAM1-12G

Summary of Contents for Wohler iAM1-12G

  • Page 1: User Guide

    1RU Multi-Channel 12G Audio Monitor User Guide Part Number 821838, Revision A...
  • Page 2 In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect in the hardware, software, or its documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    Front Panel....................10 Rear Panel....................12 SFP-2022-6 / SFP-2110 Address Setup............17 Channel Meters and Touch Operations............. 18 Wohler Zoom Screen ..................21 Menu / Option Touchscreen ................22 Main Menu ..................23 Loudness Menu .................. 23 Loudness Meter.................. 23 Loudness Settings ................
  • Page 4 System Information ................44 Passcode Settings ................45 Forgotten Passcode ................47 CHAPTER 3: Technical Info ............... 48 CHAPTER 4: The iAM1-12G Web GUI ........... 53 Web Browser / Control Device................ 53 First Time IP Assignments ................53 Peer-to-Peer Connection..............53 Network Connection................
  • Page 5 Updating an iAM1-12G Remotely ..............94 Updating Multiple Units Remotely ..............96 APPENDIX B: Dante Network Setup ............. 99 Introduction ....................99 What is in the iAM1-12G for Dante? ..............99 Dante Device Setup ..................101 Dante Clock Selection ..................102 Channel Names...................102 AES67 .......................103...
  • Page 6 Introduction ....................118 API: Presets ....................118 APPENDIX F: Out of Band Control............129 Introduction ....................129 SFP IP Address Configuration ................129 SFP System Configuration ................130 SFP 2110 Configuration................131 SFP 2110 Preset Config ................134 Diagnostic Information.................135 Page 6 iAM1-12G...

  • Page 7: Chapter 1: Installation

    (or channel pairs) from any audio/video source stream may be monitored. Either 8 or 16 channel meters can be displayed. The iAM1-12G includes two 12G/3G SDI inputs and it can monitor audio from them. Optional modules will allow decoding of an additional SDI input, MADI, AES3, Dolby D, DD+, E, SMPTE 2110, SMPTE 2022-6, and AES streams.

  • Page 8: Safety Symbols

    Heat generated by the class D power amplifiers, power supplies, and other components is vented by slots in the sides and back of the unit. Therefore, as a safety precaution, you must allow proper ventilation on these surfaces. Page 8 iAM1-12G...

  • Page 9: Sympathetic Vibration

    ICES-003 This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Page 9 iAM1-12G...

  • Page 10: Chapter 2: Local Operation

    CHAPTER 2: Local Operation Operation The iAM1-12G can be operated easily and simply from controls on its front panel, as described in this chapter. It may be accessed remotely in two ways, via the Wohler Web GUI for administrative purposes or by third party equipment via Application Programming Interface (API) commands.
  • Page 11 Output Routing option is installed, speaker audio may optionally be set to not mute, using the Wohler Web GUI. Refer to the Output Options section of Chapter 4. If the speaker audio is set to mute with headphone insertion, and a headphone is...

  • Page 12: Rear Panel

    The rear panel is shown in Figure 2-2. Figure 2-2: iAM1-12G Rear Panel & Option Cards Power Connection: The iAM1-12G receives power from an AC inlet, which is a standard IEC receptacle for 100 to 240 VAC ±10%, 50/60 Hz power connection. Four regional AC power cords, supplied according to shipping region, are available.
  • Page 13 48 kHz sample rate. An optional license key must be purchased to enable this function. The COAX output is reclocked from the MADI source. When power to the iAM1-12G is not present, the COAX input and output are automatically connected together to allow the MADI signal to pass through.
  • Page 14 Wohler Technologies Technical Service. e. SMTPE 2110 or 2022-6 Receiver: This uses Multi-Mode 850 NM, LC fiber connectors. It allows the iAM1-12G to monitor SDI audio transmitted in real time over Ethernet. You must use the MN-Set configuration software to set up this option. It is available from Wohler Technologies Technical Service.
  • Page 15 Option card. The source of these signals is the monitored audio channels as shown on meters 1 - 8. Tascam cables may be used, and can be purchased by contacting Wohler Sales. Refer to Figure 2-6 for the pinout of this connector.
  • Page 16 Ethernet characteristics. However, the two different ports cannot be used simultaneously. You must choose to connect either one or the other. Page 16 iAM1-12G...

  • Page 17: Sfp-2022-6 / Sfp-2110 Address Setup

    To integrate it into your digital network, you need to set its address to the source to be monitored. You must use the MN-Set configuration software to set up this option. It is available from Wohler Technologies Technical Service. The procedure to accomplish this is described in the SFP-2022-6 / SFP-2110 Setup Guide (part number 821822), which is available at https://wohler.com/downloads/...

  • Page 18: Channel Meters And Touch Operations

    The symbol shown on channels 7 and 8 in Figure 2-8 indicates that this channel pair is a Dolby bitstream. Refer to the Wohler Zoom section of this chapter. 2. Loudness Cluster Marker: This orange bracket marks which cluster is currently being measured for Loudness.
  • Page 19 Mute / Un-Mute Selection: A violet box surrounds any channel pair that is muted. Typically, when the iAM1-12G is first powered, all of the channel pairs are muted. Touching a muted channel pair un-mutes it and removes the violet box. Muting and un-muting by touching is an alternate action function.
  • Page 20 Indicator. The indicators light a dull green if the channels in the pair are in phase or bright red if they are out of phase. Set which Phase Indicators appear using the Phase Config Menu or with the System Preferences: Phase Indicator Configuration tab in the Wohler Web GUI. Page 20 iAM1-12G...

  • Page 21: Wohler Zoom Screen

    Wohler Zoom Screen Wohler Zoom is a very powerful analysis tool. Much as a camera lens can "zoom" into a single subject of interest out of many, the Wohler Zoom feature lets you quickly "zoom" into a single Dolby bitstream, out of multiple encoded Dolby streams and other channels.

  • Page 22: Menu / Option Touchscreen

    Figure 2-10 is a diagram of the menu arrangement, a tree showing how to reach any menu from the Main Menu. Hold the Source knob pressed for two seconds to access the Main Menu. Figure 2-11 shows the Main Menu. Figure 2-10: Menu Tree Page 22 iAM1-12G...

  • Page 23: Main Menu

    As shown in Figure 2-13, the Source knob is positioned to the lower left of the Loudness Meter Screen. If the Source Knob Select setting in the Unit Config menu is set to Cluster Select, then rotating the Source knob will adjust the Page 23 iAM1-12G...
  • Page 24 (shown as LRA -0.1 above). 2. The Average Loudness is the average of all calculated loudness measurements made over the Program period (shown as PROG - 20.5 above). Page 24 iAM1-12G...

  • Page 25: Loudness Settings

    Continuous Monitoring Modes, and also to set the Alarm mode. It also provides a summary of various Loudness settings, as set in the Configuration | System Preference | Loudness Configuration tab of the Web GUI. Refer to Figure 2-14. Page 25 iAM1-12G...
  • Page 26 4. Window: This may be set to Momentary, Short, or one of 22 values, ranging from one second to two hours. Note: Further and more detailed descriptions of all of the above Loudness terms Page 26 iAM1-12G...

  • Page 27: Source Select

    This screen also shows sources which are unlicensed and therefore nonfunctional. These sources are shown in a gray color. To license these sources so that they may be used, contact Wohler Technologies. Figure 2-15 shows the Source Select Menu.
  • Page 28 AoIP CH 1-16 AoIP CH 17-32 AoIP CH 33-48 AoIP CH 49-64 Valid license is required This selection requires a license from Wohler to enable. Please call at +1-510-870-0810 or email at support@wohler.com. Thank you! Back Touch Back to return to the Source Select menu or touch Menu to return to the Main Menu.

  • Page 29: Presets

    Figure 2-17: All Presets Screen - Group Selection The Presets are normally arranged into Groups. Use this screen to select which Preset-containing Group to examine. After selecting one of the Groups, the Preset Selection screen shown in Figure 2-18 is shown. Page 29 iAM1-12G...
  • Page 30 To return to the All Presets Group Selection screen instead, touch the Groups button. To return to the Menu without making a selection, touch the Menu button. Figure 2-19: All Presets Screen - No Presets To return to the Menu from this screen, touch the Menu button. Page 30 iAM1-12G...

  • Page 31: Preset Favorites

    Preset to select it. To exit this screen without making a selection, touch Menu. If no Favorite Presets have been designated, this screen will appear as shown in Figure 2-21. Figure 2-21: Preset Favorites Screen - No Favorites Page 31 iAM1-12G...

  • Page 32: Unit Settings

    Touching the Unit Settings selection on the Main Menu screen proceeds to the Unit Settings Menu, which contains additional menu selections. The Unit Settings Menu is shown in Figure 2-22. This is an intermediary menu which leads to other menus and screens. Figure 2-22: Unit Settings Menu Page 32 iAM1-12G...

  • Page 33: Speaker Options

    Touching the Speaker Options selection on the Unit Settings Menu screen proceeds to the Speaker Options screen. The controls on this screen affect various characteristics of the monitored audio as heard on the iAM1-12G. This screen is shown in Figure 2-23.

  • Page 34: Meter Scales

    Touch the left or right arrows to select the scale. A representation of the chosen scale will be shown at the right. The possible scales that can be selected are shown in Figure 2-25. Figure 2-25: Meter Scale Selection Page 34 iAM1-12G...
  • Page 35 Touch the left or right arrows to select the Upper or Middle scale. Rotate the Channel knob to adjust the lower boundary of the selected segment in 1 dB steps. When you have made your choices, touch Save to retain them. Touch Back to exit this screen. Page 35 iAM1-12G...

  • Page 36: Unit Configuration

    2. AES termination: AES signals should have one and only one termination. This termination should physically be at the last destination of an AES coax cable. If the iAM1-12G is the last connection in a series of AES connections, then its terminations should be turned on. A symptom of too many terminations (or no termination) is that no signal appears to be present on the AES input.

  • Page 37: Phase Configuration

    Unit Settings menu. 3. Save & Exit: When you have finished making the changes you want on this screen, touch the Save & Exit button to save the changes and return to the Unit Settings menu. Page 37 iAM1-12G...

  • Page 38: Analog Configuration

    Analog Config screen. Contained in this menu is an Analog Reference as illustrated in Figure 2-28. The parameters set on this screen pertain to the Analog Input and Analog Output DB25 and XLR connectors on the rear panel of the iAM1-12G. Figure 2-28: Analog Configuration Menu Analog Config...

  • Page 39: System Options Menu

    (fixed) or a dynamic (DHCP) network address. Figure 2-30: Network Settings Screen 1. To change the IP Address, Net Mask, Gateway, or DNS, tap the item you would like to change. A keypad will appear, as shown in Figure 2-31. Page 39 iAM1-12G...
  • Page 40 (fixed) network address, touch the DHCP button again. The colors of the buttons will return to the ones depicted in Figure 2-30. Figure 2-32: Network Settings: DHCP 1. To complete the network addressing scheme change, touch the Save button. This will save the changes you selected. Page 40 iAM1-12G...

  • Page 41: System Reboot

    Figure 2-33: System Reboot If you have any doubt as to whether you should press Yes, press Back or No instead, and contact Wohler Technical Service for advice. Pressing Back or No will return you to the System Options menu.

  • Page 42: System Update

    Touching the System Update selection in the System Options Menu displays System Update screen as shown in Figure 2-34, showing the current software version of the product. To update the system software locally from the iAM1-12G front panel, follow the procedure in the Local Update from the Front Panel section of Appendix A.

  • Page 43: Factory Reset

    Mac address 28.) If you have any doubt as to whether you should press Yes, press Back or No instead, and contact Wohler Technical Service for advice. Pressing Back or No will return you to the System Options menu.

  • Page 44: System Information

    System Details screen as shown in Figure 2-36. This screen lets you view the product Serial Number, Software Version, and various other information. Figure 2-36: System Details Screen The information shown on this screen is read only and cannot be changed. Touch Back to return to the System Options Menu. Page 44 iAM1-12G...

  • Page 45: Passcode Settings

    To prevent accidental or unauthorized changing of critical settings in some of the menus, it is possible to block or restrict access to various menus. The Wohler Web GUI can be used to limit access to the menus of your choice. Refer to Chapter 4, the Front Panel Configuration tab of System Preferences.
  • Page 46 This is shown in the left image of Figure 2-41. Touching these buttons will cause a Passcode entry screen to appear, as shown in the left image of Figure 2-38. The correct Passcode must Page 46 iAM1-12G...

  • Page 47: Forgotten Passcode

    Although the Passcode should be remembered or securely noted somewhere, it can happen that it is forgotten. This can be remedied by performing a Factory Reset from the Wohler Web GUI. Unfortunately, this will also erase all of the menu settings. You may also contact Wohler Technical Service for help.

  • Page 48: Chapter 3: Technical Info

    CHAPTER 3: Technical Info Table 3–1: iAM1-12G Specifications Specification Values/Domains Power Requirements 100 VAC to 240 VAC ± 10%, 50/60Hz Power Consumption 65 Watts Dimensions 1.75” x 19” x 5.5” (44mm x 483mm x (H x W x D) 140mm), standard 19” rack mounting Shipping/Net Weight 7 lbs.
  • Page 49 Power Output 5 Watts RMS, 12 Watts peak (each side) Acoustic Frequency 150 Hz to 16 kHz (± 5 dB) Response Headphone Out - Stereo 40 Hz to 20 kHz (± 1 dB) Headphone Load 8Ω to 150Ω Page 49 iAM1-12G...
  • Page 50 Table 3–2: iAM1-12G Options Option Part # Description MADI optical fiber transceiver. Multi-Mode, SFP-Madi-MM- 829081 LC (fiber) connectors. SFP module with Fiber software activation key. MADI optical fiber transceiver. Single-Mode, SFP-Madi-SM- 829082 LC (fiber) connectors. SFP module with Fiber software activation key.
  • Page 51 Table 3–3: iAM1-12G Signal Processing Options Option Part # Description ® Enable monitoring of Dolby D, DD+ or E streams. Software activation key. Functions OPT-DOLBY 829174 on SDI via BNC, or any of the following OPT/SFP’s: OPT-AES, SFP-SDI-Fiber, SFP- 2022-6, SFP-2110, and SFP-2110+2022-6...
  • Page 52 Figure 3–1: iAM1-12G Block Diagram 12G-SDI Input 1 Touchscreens for Audio Meters / Loudness / Control 12G-SDI Input 2 SDI-1 LKFS-M : -20.5 Back 12G-SDI Output -22.5 9 10 11 12 13 14 15 16 Audio & Video from SDI 1, 2, or SFP...

  • Page 53: Chapter 4: The Iam1-12G Web Gui

    If the default configuration suits your needs and you prefer to use it that way, then you do not need to use the iAM1-12G Web GUI. The iAM1-12G Web GUI also allows you to have a remote view of the Meter Screen.

  • Page 54: Network Connection

    GUI. Network Connection When connected to a network, the iAM1-12G address will need to be changed to another address in order to be compatible with the address assignments for that particular network. Immediately after the host setup is complete, change the iAM1- 12G’s address.

  • Page 55: Network Setup

    Network Setup Make network IP Address changes for the local iAM1-12G Management (MGMT) Port here. Figure 4–2: Set IP Addresses iVAM1-3 iAM1-12G The procedure for changing the IP Address information is as follows: 1. Use DHCP? Check this box if your network has a DHCP server and you want to use dynamic addressing.

  • Page 56: Dashboard

    Throughout the Web GUI, pages are a click or two away using the list of selections on the left side. The Dashboard page shows all of the available Preset configurations at a glance. The iAM1-12G allows you to assign Presets to particular groups. In Figure 4-3, two groups, Operator-1 and Operator-2 are shown.
  • Page 57 Figure 4-4, to the right of the associated Recall button. After clicking the Preset Edit button, the screen shown in Figure 4-5 will appear. Clicking a Group Edit button will cause the screen in Figure 4-6 to appear. Page 57 iAM1-12G...
  • Page 58 1. Delete: Remove the Preset from the system. Do Not delete the currently active Preset. 2. Rename: Rename the Preset, but keep all of its other characteristics. 3. Make Favorite: Make this Preset a favorite. This can be done for frequently used Presets. Page 58 iAM1-12G...
  • Page 59 Figure 4–6: Dashboard Group Edit The Edit options for a Group are as follows: 1. Delete: Delete the Group and all of the Presets it contains. 2. Rename: Rename the Group, but keep all of its other characteristics. Page 59 iAM1-12G...

  • Page 60: Audio Meters

    Audio Meters Click on Audio Meters to remotely display the audio meters of the iAM1-12G. This display is shown in Figure 4-7. Also displayed is the name of the source that the meters are displaying. In Figure 4-7, this is SDI/BNC-1.

  • Page 61: System Preferences

    Reference. This tab is shown in Figure 4-8. This System Audio Clock Reference setting can be overridden by the optional System Clock Reference setting in the Preset Management menu when the Preset is chosen. Figure 4–8: System Audio Clock Reference Tab Page 61 iAM1-12G...

  • Page 62: Loudness Configuration Tab

    Above or below this range will result in color changes in the graph. 7. Loudness Window: This may be set to Momentary, Short, or one of 22 values, ranging from one second to two hours. 8. Monitoring Mode: Page 62 iAM1-12G...

  • Page 63: Phase Indicator Configuration Tab

    Select All and Reset All buttons are also provided. Figure 4–10: Phase Indicator Configuration Tab iAM1-12G iVAM1-3 When you have finished making the settings click Apply to save them or click Cancel to discard them.

  • Page 64: Front Panel Configuration Tab

    Continue button to try again. If you have forgotten the Passcode, this can be remedied by performing a Factory Reset. Unfortunately, this will also erase all of the menu settings. You may also contact Wohler Technical Service for help. Figure 4-12: Unrecognized Passcode...
  • Page 65 Figure 4-13: Front Panel Configuration Tab Enable / Disable Menu Access iAM1-12G The functions on this screen are as follows: Enable Restricted Access for Front Panel Configuration: This switch will turn ON or OFF protection or blocking of any local product menus, except for the Passcode Settings menu, which is always Passcode protected.

  • Page 66: Preset Management

    Figure 4–15: Configure Presets Preset Clock Autofill Preset Input/Output Matrix: Management Selection Selection Preset Input Routing iAM1-12G 1. Preset Configuration: You may create a new Preset, adjust an existing Preset, or create a new Preset from an existing Preset: Page 66 iAM1-12G...
  • Page 67 A Surround 5.1 Cluster consists of 6 channels that together monitor a 5.1 surround sound signal. Clicking a Cluster Info box opens a Cluster selection box. In the Cluster box, you can select the type of Cluster from a pull down selection. The available Cluster Type selections are: Page 67 iAM1-12G...
  • Page 68 System Preference tab. However, to make unique settings for this Preset, uncheck Apply Global Phase Indicator Settings and then simply click each switch to the desired on or off position. Select All and Reset All buttons are also provided. Page 68 iAM1-12G...
  • Page 69 Figure 4–16: Global Phase Indicator Enable / Disable Global Phase Indicators iAM1-12G 10. The Output Routing tab is shown in Figure 4-17 when the OPT-OUTPUT- ROUTING capability was not purchased and licensed. This tab shows how signals from the inputs are routed to the outputs. It allows you to view, but not change this default routing.
  • Page 70 Preset. Figure 4-18: Output Routing Preset Tab Output Routing iAM1-12G 11. When you have finished creating a Preset or making changes to a Preset, either click the Save button to save the Preset, click the Save & Apply button to save the Preset and make it the current Preset, or click the Reset button to discard the changes just made.

  • Page 71: Dolby Presets

    1 - 16 to meters 1 - 16, simply click the Autofill button. Note that by default, channels 15 and 16 are a downmix of the decoded Dolby channels. When you have finished making all of the settings for this Dolby Preset, click Save & Apply. Page 71 iAM1-12G...

  • Page 72: Output Routing

    Six or eight channels could be directed to the AES outputs, which could feed an external surround sound system. Contact Wohler Sales to purchase the license for the OPT-OUTPUT- ROUTING feature.

  • Page 73: Source Inputs

    Low Frequency Effects Left Surround Right Surround Back Surround Left Back Surround Right Mono Surround 3. Input/Output Matrix: By checking the various boxes in this matrix, any input channels can be freely routed to any output channels. This flexible Page 73 iAM1-12G...

  • Page 74: Output Options

    What signal outputs can be controlled using the Output Routing feature? All the outputs on the iAM1-12G can be controlled using the Output Routing feature. This includes – Internal Speakers, Analog XLR outputs, all 4 pairs of AES outputs on HD-15, and AoIP Pair 9 and Pair 10.

  • Page 75: What Is The Difference Between Global Output Routing And Output Routing In Presets

    Analog XLRs? To downmix a pre-fade output on AES Pair-1, uncheck the Volume Control checkbox for that AES pair. For a Post-fade output on the Analog XLRs, check Volume Control checkbox. Page 75 iAM1-12G...

  • Page 76: How Do I Make The Xlr Outputs Follow The Audio Meter Screen Solos & Mutes While The Aes Pair-1 Does Not

    & mutes for the XLR outputs because the checkbox is checked. It is not checked for the AES outputs, so they will not be affected by the solo & mute choices. This feature requires the optional OPT-OUTPUT-ROUTING output routing license. Page 76 iAM1-12G...

  • Page 77: How Do I Route Only Specific Monitored Channels To The Analog Xlr Outputs

    Output Routing configuration, do not select any Speaker Headphone checkboxes for any meter channels as shown below, and then select the desired meters for Analog XLR. In this way, the internal speakers will always be muted, but Page 77 iAM1-12G...

  • Page 78: How Do I Ensure That The Outputs Are Automatically Muted When The Headphone Jack Is Inserted

    Zman web interface to route these channels appropriately. AoIP-Pair 10: Selected inputs will be mixed to Channel 19 and Channel 20. Again, use a Dante Controller or Zman web interface to route the remaining pairs appropriately. Page 78 iAM1-12G...

  • Page 79: Preset Replication

    To start Preset Replication, click on the Preset Replication tab on the master unit. This will start the unit discovery process and will list all the iAM1-12G that you currently have on your network. The discovery process will continue for a period of 2 minutes.
  • Page 80 Target units. Note that any and all of the Presets that may already be contained in each Target unit will be erased by copying the new Presets. Figure 4-22: Preset Replication Target Selection Screen iAM1-12G iVAM iVAM iAM1-12G...

  • Page 81: Import/Export Presets

    The iAM1-12G will create Preset Tags for the each set of Presets. Refer to Figure 4- 23. You may also change these Preset Tags, using the Preset Change Field. They allow you to quickly resolve questions about which Presets on various units are the most up to date.

  • Page 82: Import Configuration

    Download all Presets from your iAM1-12G unit onto your computer. Import Configuration Use the following steps to copy the Preset configuration into the iAM1-12G: 1. Click the Browse button as shown in Figure 4-24 and select the Preset Tag you would like to import.
  • Page 83 Figure 4–25: Database Import iAM1-12G Download all Presets from your iAM1-12G unit onto your computer. Upload Presets from a file to your iAM1-12G unit. Page 83 iAM1-12G...

  • Page 84: System

    These tabs are explained in the following three sections. System Information This tab displays a variety of information about the iAM1-12G. It is shown in Figure 4-26. This information could be useful to view if you are contacting Wohler Technical Service.

  • Page 85: Sfp Information

    This tab displays a variety of information about the module inserted into the SFP slot on the rear panel of the iAM1-12G. It is shown in Figure 4-27. This information could be useful to view if you need to ascertain what module, if any, is installed, or if you are contacting Wohler Technical Service.

  • Page 86: Licenses

    This tab displays the license number for each of the modules or features in the iAM1-12G. It is shown in Figure 4-28. You will use this tab to enter any new license numbers that you purchase. Contact Wohler Sales to obtain new license numbers.

  • Page 87: Factory Reset

    If you have any doubt as to whether you should perform a Factory Reset, do not click the Initiate Factory Reset button. Contact Wohler Technical Service for advice. Factory Reset will also reset your IP address to the default one. After a Note: Factory Reset, the IP Settings will need to be updated.

  • Page 88: Reboot System

    The Reboot System function should be used with a bit of caution. It puts the iAM1-12G out of service for several minutes while it is rebooting, and this may unexpectedly interfere with the use of the product by the remote operator.

  • Page 89: Appendix A: Software Upgrades

    Introduction This chapter describes how to download a software update file to your computer, transfer it to a USB flash drive and install the updated into an iAM1-12G. Download the Software The iAM1-12G software update can be found at http://www.wohler.com, under Product Downloads on the Products >...

  • Page 90: Local Update From The Front Panel

    USB flash drive. 2. Insert the USB flash drive with iAM1-12G update package(s) into the front panel USB jack. 3. From the Menu screen, touch System Options. The screen shown in Figure A-1 will appear.
  • Page 91 After the software update starts, the text on the left screen will change periodically to indicate the progression of the upgrade. The upgrade will take 5 minutes or more, after which the iAM1-12G will restart. After the system has completed its restart cycle and is once again operational, you may then remove the flash drive.

  • Page 92: Updating Via The Web Gui Using A Flash Drive

    USB flash drive. 2. Connect to the iAM1-12G with the Wohler Web GUI. Navigate to the System | System Update menu, as shown in Figure A-5. If the iAM1-12G has...
  • Page 93 Figure A-8 – Software Upgrade in Progress 7. At this point, wait for the update to complete. It may take several minutes, Page 93 iAM1-12G...

  • Page 94: Updating An Iam1-12G Remotely

    Use the following steps to update the iAM1-12G software: 1. The Software Update files you downloaded earlier must be in the same computer that is running the Web GUI. Connect to the iAM1-12G with the Wohler Web GUI. Navigate to the System | System Update menu. Click within the large blue dotted line rectangle at the right of the screen.
  • Page 95 3. At this point, wait for the update to complete. It may take several minutes, until the it is critical not to disturb the iAM1-12G or the Web GUI update process is complete. When it is complete, the iAM1-12G will restart.

  • Page 96: Updating Multiple Units Remotely

    Use the following steps to update one or more iAM1-12G units remotely by transferring the software from a previously updated iAM1-12G: 1. If any of the iAM1-12G units that you intend to update remotely may be in use, contact the people using them and let them know what you will be doing.
  • Page 97 Figure A-13 – List of Found iAM1-12G Units 4. Then click Update Selected Devices. The window shown in Figure A-14 will appear. Figure A-14 – Apply System Package 5. Click Apply System Update. The screen shown in Figure A-15 will appear.
  • Page 98 6. At this point, wait for each update to complete. It may take several minutes, it is critical not to disturb any of the iAM1-12G units or the Web until the update process is complete. When it is complete, each iAM1- 12G will restart.

  • Page 99: Appendix B: Dante Network Setup

    On iAM1-12G, the AoIP source can be selected through the Source Select option. The iAM1-12G is set up at the Wohler factory to be used as a slave rather than a master within the Dante network. Other devices or software, such as a Dante Controller, are expected to be responsible for most device configurations and all audio routing.
  • Page 100 Up to 16 of the 64 AoIP receive channels can be monitored at once in the iAM1- 12G. The iAM1-12G transmits up to 20 channels. 1 to 16 are the monitored channel in prefade mode. The remaining four are reserved for future use. Currently they are mapped to channels being monitored on meter 1 to 4 in post-fade mode.

  • Page 101: Dante Tm Device Setup

    Dante Device Setup The iAM1-12G’s default Dante Device Name is “Wohler- …” followed by the last 6 digits of the Dante port MAC address, as shown in Figure B-2. This name can be changed by the Dante Controller to appear that way on the network, but that will not change the iAM1-12G unit name appearing on GUI pages and iAM1-12G Remote Metering or Discovery pages.

  • Page 102: Dante Clock Selection

    Dante Clock Selection While the Brooklyn’s internal clock is highly accurate, the iAM1-12G does not have provisions for external sync clocks, such as those that are GPS or media reference (video genlock or audio word clock) based. So it is generally not the best candidate to be the PTP Master Clock (commonly called the “grandfather clock”) for the...

  • Page 103: Aes67

    AES67 The iAM1-12G Brooklyn II can be configured for AES67 operation. AES67 operation with Dante is limited to eight or less receive and transmit channels at 48 kHz sample rates. 24 bit linear (L24) encoding and 1 msec packet time are fixed default transmit parameters.
  • Page 104 Figure B–6: Device View - Network Config Page 104 iAM1-12G...

  • Page 105: Device Lock

    Device Lock command at this time. Dante Firmware Upgrades Wohler iAM1-12G monitors ship with current Brooklyn II firmware as of the option installation date. The version information is found in the Dante Controller Device View-Status page. iAM software/firmware is tested with the latest Dante code release.

  • Page 106: Additional Information

    8171152, European Patent 2255541, Chinese Patent ZL200780026677.0 and other patents pending or issued, see or such other www.audinate.com/patents legend as Audinate may stipulate from time to time to the Manufactured Product and any packaging and marketing materials therefor. Page 106 iAM1-12G...

  • Page 107: Appendix D: Ravenna (Zman) Setup

    APPENDIX D: Ravenna (ZMAN) Setup Introduction Installing the iAM1-12G into an existing and functioning Ravenna network using the Merging ZMAN Card is virtually plug and play. The iAM rear panel AoIP jack supports 1Gb/s and 100Mb/s Ethernet devices in Ravenna Audio over IP network configurations.

  • Page 108: Configuring The Aoip Merging Option Card

    The Merging Ravenna card runs specific firmware from Merging and augmented by Wohler for use within the iAM1-12G. The card will not function correctly if the user downloads and installs firmware from any source besides Wohler. The Wohler augmentation includes the ability to support 64 channels.

  • Page 109: Getting Started | General Settings

    6. Network Interface: Note the address of the card and its type (Zeroconf, DHCP, Static). (If necessary, the address can be changed to another type such as a Static address which must include a Network Mask and Gateway.) Page 109 iAM1-12G...

  • Page 110: Getting Started | Ptp

    Announce: This is PTP Profile related - PTP announcement interval (1 - 2 - 4 - 8 -16 seconds) i. Sync: This is PTP Profile related (0.0625 - 0.125 - 0.25 - 0.5 seconds) 3. Status: Page 110 iAM1-12G...

  • Page 111: Getting Started | Session Sources

    7. TTL: Time to Live (also called Hop Limit) - This value should not be modified. 8. Payload type: RTP Payload type - This value should not be modified. Page 111 iAM1-12G...

  • Page 112: Getting Started | Session Sinks

    3. Label: This is the Sink name. 4. Source: This is a drop down menu to select a source (both sap and bonjour advertised sources are automatically listed). 5. Manual: This allows manual entry of an SDP. Page 112 iAM1-12G...

  • Page 113: Getting Started | Session Info

    (usually the same as the source name) 4. Clock Domain: This is the PTP clock type and domain 5. Payload: Selections are Payload / Codec / Sampling Rate / Number of Channels 6. SDP: This displays detailed SDP information on the current stream. Page 113 iAM1-12G...

  • Page 114: Getting Started | Ins/Outs

    Getting Started | I/O Router This page allows remapping of incoming channels to different internal channel assignments. For example, Stream channel 1 can be remapped to Merging card Channel 0, and so on. Figure D-6: Getting Started | I/O Router Page 114 iAM1-12G...

  • Page 115: Operation

    IAM interface for display on meters and speakers, etc. The iAM1-12G must be set to receive AOIP from the Source Select Front Panel menu or a browser iAM1-12G GUI.
  • Page 116 For example, for monitoring 2 SDI sources (four 8 channel Flows), assign two flows to 1-8 and 9-16 and the next SDI signal to 17-24 and 25- 32. Touch the iAM1-12G AOIP selection menu to select the proper range to monitor, up to 57-64.

  • Page 117: Zman Session Sources

    Figure D-8: Session Sources Tab ZMAN Updating The Zman card is pre-initialized with the correct Wohler firmware load. In case of future upgrades, use the following steps: 1. In Aneman, right click the ZMAN entry on the bottom Devices section, and select Maintenance Mode.

  • Page 118: Appendix E: Api Documentation

    Follow the instructions in the First Time IP Assignments section of Chapter 4 to achieve the required network connection. API: Presets 1. GET Active Preset Method: GET /api/cf/presets/current Example Response: "serial_number": "", "model": "iAM1-12G", "version": 1.3, "name": "iAM1-12G", "result": { "group": { "Id": 1, "Name": ""...
  • Page 119 "NumberOfMeters": 2, "FirstMeter": 3, "Name": "Stereo 2.0 #2", "Type": "Stereo", "MuteOnPresetRecall": true "NumberOfMeters": 2, "FirstMeter": 5, "Name": "Stereo 2.0 #3", "Type": "Stereo", "MuteOnPresetRecall": true "NumberOfMeters": 2, "FirstMeter": 7, "Name": "Stereo 2.0 #4", "Type": "Stereo", "MuteOnPresetRecall": true "NumberOfMeters": 2, Page 119 iAM1-12G...
  • Page 120 "Cage": 1, "Channel": 8, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Right" "2": { "Source": { "Slot": 1, "Cage": 1, "Channel": 2, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, Page 120 iAM1-12G...
  • Page 121 "Source": { "Slot": 1, "Cage": 1, "Channel": 11, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Left" "15": { "Source": { "Slot": 1, "Cage": 1, "Channel": 15, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, Page 121 iAM1-12G...
  • Page 122 "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Right" "6": { "Source": { "Slot": 1, "Cage": 1, "Channel": 6, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Right" "7": { "Source": { Page 122 iAM1-12G...
  • Page 123 "Cage": 1, "Channel": 1, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Left" "SystemClockSource": { "Slot": 0, "Cage": 0, "ConnectorType": "None", "InputNo": 0, "Type": "None", "Pair": "Favorite": 0, "PresetId": 1, "GroupName": "G1" Page 123 iAM1-12G...
  • Page 124 "Name": "SDI", "Id": "Id": "Name": "AES", "Presets": [ "Favorite": 0, "Name": "dfsdf", "Id": "Id": 4. GET to recall the preset Method: GET api/op/presets/<int:presetID>/activate Example Response: "error": null, "params": { "PresetId": "result": { "PresetId": 1, "GroupId": 1, "PresetName": "SDI", Page 124 iAM1-12G...
  • Page 125 Method: POST api/op/preset/<int:presetID>/delete Example Response: "error": null, "params": { "PresetId": "result": { "PresetId": 7. POST to rename group Method: POST /api/op/group/<int:groupID>/newGrpNameSdi/rename Example Response: "error": null, "params": { "GroupId": 1, "GroupName": "newGrpNameSdi" "result": { "GroupId": 1, "GroupName": "newGrpNameSdi" Page 125 iAM1-12G...
  • Page 126 Example Response: "error": null, "params": { "PresetId": 4, "Favorite": "result": { "PresetId": 4, "Favorite": 10. Source Select Method: POST /api/op/sourceselect Body content for SDI/SMPTE-2022-6/ SMPTE-2110 "SourceType": “<String: SDI Input Source>” Note: Allowed SDI input sources are: "Bnc-1.Sdi", "Bnc-2.Sdi", Page 126 iAM1-12G...
  • Page 127 "SourceType": "Analog.DB25" Body content for Aes "SourceType": "Aes" 5. Body content for Aoip "SourceType": "Aoip", "ChannelGroup": <Int: 1-16> Note: ChannelGroup 1 => Channels 1-16 and ChannelGroup 2 => Channels 17-32 and so on 6. Body content for TOSLINK Page 127 iAM1-12G...
  • Page 128 "SourceType": "Toslink" Example Response: "unit_name": "iVam", "model": "iVam", "api_version": 1, "message": "Input Source Toslink has been applied successfully", "serial_number": "162978", "status": Page 128 iAM1-12G...

  • Page 129: Appendix F: Out Of Band Control

    SFP IP Address Configuration You may change the IP address of a 2110 or 2022-6 SFP. This can be done using the System Setup | Sfp Information | Network tab of the Wohler Web Server, as shown in Figure F-1.

  • Page 130: Sfp System Configuration

    You may change the Personality of an SFP using the System Setup | SFP Information | Personality tab of the Wohler Web Server. If the Embrionix SFP is a combo SFP module, you may also switch from 2110 to 2022 using this feature. All the personalities loaded on a SFP are displayed on the tab, as shown in Figure F-2.

  • Page 131: Sfp 2110 Configuration

    SFP 2110 Configuration If a 2110 firmware is loaded, the Wohler Web-GUI can be used to configure Audio/Video Flows of the SFP. The Out of Band On/Off Switch at the top of the SFP 2110 Global Setup page controls whether the out of band settings will be applied to the SFP or not.
  • Page 132 Appendix. The global configuration will be used for Source Select. Refer Figures F-3 and F-4 for Video parameters. Refer to Figures F-5 and F-6 for Audio parameters. Refer to Figure F-7 for PTP parameters. Figure F-5: Audio Parameters Page 132 iAM1-12G...
  • Page 133 Figure F-6: Audio Parameters Figure F-7: PTP Parameters Page 133 iAM1-12G...

  • Page 134: Sfp 2110 Preset Config

    Figure F-8: SFP 2110 Preset SFP Configuration Enable SFP Config After clicking the SFP Config button, the SFP 2110 Setup Screen will appear, as shown in Figure F-9. Make the settings you need for this Preset and then click Close. Page 134 iAM1-12G...

  • Page 135: Diagnostic Information

    10 seconds to fetch the latest information from the SFP. The diagnostic information is always available even when the “Out of band” control is turned off. Refer to Figures F-10, F-11, and F-12 for descriptions of the information available. Figure F-10: Diagnostic Information Page 135 iAM1-12G...
  • Page 136 Figure F-11: Diagnostic Information Figure F-12: Diagnostic Information Page 136 iAM1-12G...

Table of Contents
