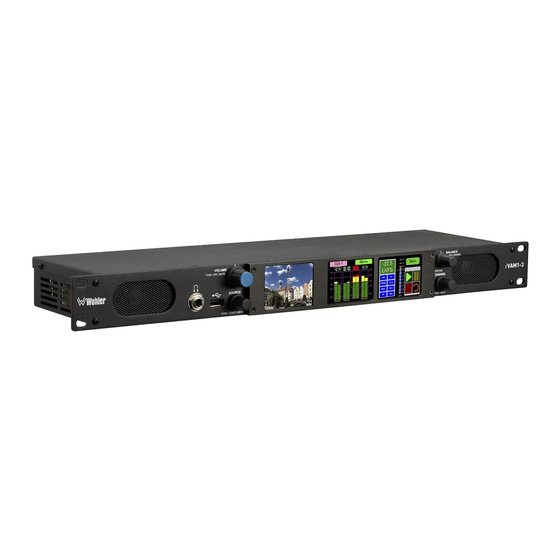

iVAM1-3
1RU Multi-Channel Audio Video Monitor

User Guide

Part Number 821830, Revision B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iVAM1-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Wohler iVAM1-3

Summary of Contents for Wohler iVAM1-3

  • Page 1: User Guide

    1RU Multi-Channel Audio Video Monitor User Guide Part Number 821830, Revision B...
  • Page 2 In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect in the hardware, software, or its documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of Contents User Guide ..................1 TABLE OF CONTENTS ................3 Table of Contents ................... 3 CHAPTER 1: Installation ............... 6 Introduction ....................6 Overview .................... 6 Safety ......................6 Instructions ..................6 Safety Symbols ..................7 Mounting.....................
  • Page 4 System Update .................. 40 Factory Reset ..................41 System Information ................42 CHAPTER 3: Technical Info ............... 43 CHAPTER 4: The iVAM1-3 Web GUI ............. 48 Web Browser / Control Device................ 48 First Time IP Assignments ................48 Peer-to-Peer Connection..............48 Network Connection................
  • Page 5 Dante Legal Disclosures................98 APPENDIX D: Ravenna (ZMAN) Setup ..........99 Introduction ....................99 What is in the iVAM1-3 for Ravenna ..............99 RAVENNA-Compatible Talker/Listener............ 99 AVB Ethernet Features ................ 99 Configuring the AOIP Merging Option Card............100 Getting Started | General Settings ............101 Getting Started | PTP .................102...

  • Page 6: Chapter 1: Installation

    Either 8 or 16 channel meters can be displayed. The iVAM1-3 includes two 3G SDI inputs and it can monitor both video and audio from them. Optional modules will allow decoding of an additional SDI input, MADI, AES3, Dolby D, DD+, E, SMPTE 2110, SMPTE 2022-6, and AES streams.

  • Page 7: Safety Symbols

    of time. 10. Refer all servicing to qualified service personnel. Servicing will be required under all of the following conditions: a. The equipment has been damaged in any way, such as when the power- supply cord or plug is damaged. b.

  • Page 8: Sympathetic Vibration

    Sympathetic Vibration Sympathetic vibration from other equipment (cables, etc.) in the rack may be serious enough to interfere with the unit’s sound quality. If you experience sympathetic vibrations, use thin card stock, felt, foam, or weather-stripping between the vibrating surfaces. Tie loose cables securely with cable ties. Mechanical Bracing The 1RU chassis is securely attached to the front panel.

  • Page 9: Chapter 2: Local Operation

    CHAPTER 2: Local Operation Operation The iVAM1-3 can be operated easily and simply from controls on its front panel, as described in this chapter. It may be accessed remotely in two ways, via the Wohler Web GUI for administrative purposes or by third party equipment via Application Programming Interface (API) commands.
  • Page 10 Output Routing option is installed, speaker audio may optionally be set to not mute, using the Wohler Web GUI. Refer to the Output Options section of Chapter 4. If the speaker audio is set to mute with headphone insertion, and a headphone is...

  • Page 11: Rear Panel

    Chapter 4 of this manual. Third party equipment, connecting to the iVAM1-3 via a LAN plugged into this port and using an API commands, can view and change product options, as well. This API is described in Appendix E of this manual.
  • Page 12 through. A software license must be installed for this input to function. Refer to the System Setup section in Chapter 4 to install software licenses. 6. MADI Fiber SFP: (optional) This input module accepts an optical AES10 64-channel MADI input signal at 48 kHz sample rate. An optional license key must be purchased to enable this function.
  • Page 13 Wohler Technologies Technical Service. e. SMTPE 2110 or 2022-6 Receiver: This uses Multi-Mode 850 NM, LC fiber connectors. It allows the iVAM1-3 to monitor SDI audio transmitted in real time over Ethernet. You must use the emSET configuration software to set up this option. It is available from Wohler Technologies Technical Service.
  • Page 14 Option card. The source of these signals is the monitored audio channels as shown on meters 1 - 8. Tascam cables may be used, and can be purchased by contacting Wohler Sales. Refer to Figure 2-6 for the pinout of this connector.

  • Page 15: Sfp-2022-6 / Sfp-2110 Address Setup

    192.168.39.215 iVAM-1 with SFP-2022-6 / SFP-2110 The optional SFP-2022-6 or SFP-2110 module furnished by Wohler Technologies is manufactured by Embrionix and comes from the factory with a default IP address. To integrate it into your digital network, you need to set its address to the source to be monitored.

  • Page 16: Channel Meters And Touch Operations

    It is available from Wohler Technologies Technical Service. The procedure to accomplish this is described in the SFP-2022-6 / SFP-2110 Setup Guide (part number 821822), which is available at ftp://ftp.wohler.com/Download-from- Wohler/DoNotDelete/Emset Channel Meters and Touch Operations The audio mixer terminology of “solo” is used in this manual when referring to muting all but a specific audio channel or pair.
  • Page 17 Mute / Un-Mute Selection: A violet box surrounds any channel pair that is muted. Typically, when the iVAM1-3 is first powered, all of the channel pairs are muted. Touching a muted channel pair un- mutes it and removes the violet box. Muting and un-muting by touching is an alternate action function.

  • Page 18: Video Screen

    Video Screen Information about the signal can be superimposed over the upper part of the video image. The Video Info selection in the Unit Config Menu determines whether this information is always displayed, never displayed, or is only displayed for the first 5 or 10 seconds after switching to the video screen.
  • Page 19 A wide range of Metadata is available, which can help you diagnose possible problems. It will vary according to the type of Dolby signal. For example, for checking Guard Band, the iVAM1-3 will display the Line Position of each Dolby E bitstream in the Dolby signal.

  • Page 20: Menu / Option Touchscreen

    Menu / Option Touchscreen You may set most options or view a variety of system information using the self- contained menus. To access this, touch the Menu button which appears on the right of the level meter screen. Figure 2-11 is a diagram of the menu arrangement, a tree showing how to reach any menu from the Main Menu.

  • Page 21: Main Menu

    Main Menu Hold the Source knob pressed for two seconds to access the Main Menu. The Main Menu is shown in Figure 2-12. Figure 2-12: Main Menu Loudness Menu Touch the Loudness Menu button to reach the Loudness Menu Screen, which allows you to make a selection of either the Loudness Meter Screen or the Loudness Settings Screen.
  • Page 22 channel cluster source of the Loudness measurement. A box on the lower right of the screen shows the selected Loudness Source, as does the orange bracket on the Level Meters screen. Figure 2-14: Loudness Meter Screen Source Back LKFS PROG -21.5 -20.1 -20.0...

  • Page 23: Loudness Settings

    program period (shown as MAX -20.1 above). 4. The Maximum True Peak Loudness is the absolute loudest peak waveform over the program period (shown as TP -20.0 above). Note: Further and more detailed descriptions of all of the above Loudness terms may be found in the ITU-R BS.1770-3 loudness standard.
  • Page 24 Figure 2-15: Loudness Settings Screen The controls and information available on the Loudness Meter Screen are: Monitoring Mode: 1. Manual: Touch the Manual button to enable Manual Mode. This allows you to measure the loudness of a specific program or segment of a program, such as a commercial.

  • Page 25: Source Select

    This screen also shows sources which are unlicensed and therefore nonfunctional. These sources are shown in a gray color. To license these sources so that they may be used, contact Wohler Technologies. Figure 2-16 shows the Source Select Menu.
  • Page 26 AoIP CH 1-16 AoIP CH 17-32 AoIP CH 33-48 AoIP CH 49-64 Valid license is required This selection requires a license from Wohler to enable. Please call at +1-510-870-0810 or email at support@wohler.com. Thank you! Back Touch Back to return to the Source Select menu or touch Menu to return to the Main Menu.

  • Page 27: Presets

    Presets Presets are pre-arranged input and monitoring setups that can be used to monitor a variety of combinations of inputs. They may be set up to allow quick and easy selection of monitoring configurations for various productions and situations. If you have not set up any Presets, use the Configure Presets page in the Web GUI to do so.
  • Page 28 Figure 2-19: All Presets Screen - Preset Selection To select a Preset, touch the associated button. After a quick 2-second delay, the metering screen will display the channels contained in that source. To return to the All Presets Group Selection screen instead, touch the Groups button.

  • Page 29: Preset Favorites

    Preset Favorites Touch the Preset Favorites button to display the Preset Favorites screen. This shows the Presets that you have designated as Favorites. Refer to the Dashboard section of Chapter 4. Generally, these are frequently used Presets that you want to separate out from the possibly many other Presets in the system.

  • Page 30: Unit Settings

    Unit Settings Touching the Unit Settings selection on the Main Menu screen proceeds to the Unit Settings Menu, which contains additional menu selections. The Unit Settings Menu is shown in Figure 2-23. This is an intermediary menu which leads to other menus and screens. Figure 2-23: Unit Settings Menu Page 30...

  • Page 31: Speaker Options

    Touching the Speaker Options selection on the Unit Settings Menu screen proceeds to the Speaker Options screen. The controls on this screen affect various characteristics of the monitored audio as heard on the iVAM1-3. This screen is shown in Figure 2-24.

  • Page 32: Meter Scales

    Meter Scales Touching the Meter Scales button on the Unit Settings Menu displays the Meter Scales screen as shown in Figure 2-25. The controls on this screen select the scale standards as well as the ballistics that will be applied to the audio meters. Figure 2-25: Meter Scales Screen The controls function as follows: 1.
  • Page 33 Table 2–4: Meter Limits and References Default Color Default Ballistics Default Bounds Scale Bottom Limit Top Limit Reference Lower Upper Float -72 dBFS 0.0 dBFS 0 dBFS = 0 dBFS -30 dBFS -20 dBFS Type I VU -53 dBr +5.5 dBr -15 dBFS = 0 dBr -5 dBr 0 dBr...

  • Page 34: Unit Configuration

    3. AES termination: AES signals should have one and only one termination. This termination should physically be at the last destination of an AES coax cable. If the iVAM1-3 is the last connection in a series of AES connections, then its terminations should be turned on. A symptom of too many terminations (or no termination) is that no signal appears to be present on the AES input.

  • Page 35: Phase Configuration

    Favorite Presets present in the unit. d. No Operation: The Source knob will perform none of the above listed selection operations. If the Source knob is set to No Operation and is turned, the Audio Meters screen will display for 3 seconds at the top center, as a reminder.

  • Page 36: Hdmi Settings

    (EDID) to disclose their capabilities to the video source. The iVAM1-3 can use this information to ensure its compatibility with the HDMI Monitor. If you decide that you do not want the iVAM1-3 to receive this information, set this switch to Off. By default this switch is set to On.

  • Page 37: System Options Menu

    System Options Menu Touching System Options in the Main Menu proceeds to the System Options menu, which is an intermediate menu leading to other screens. This menu is shown in Figure 2-30. Figure 2-30: System Options Menu System Options Menu Network System Settings...
  • Page 38 Figure 2-32: Network Configuration: Setting Change 2. Touch the digits to be entered and then touch the Enter button. The Clear button may be touched to erase any mistyped digits. 3. Now repeat steps 1 and 2 until you have replaced all of the necessary digits. 4.

  • Page 39: System Reboot

    Figure 2-34: System Reboot If you have any doubt as to whether you should press Yes, press Back or No instead, and contact Wohler Technical Service for advice. Pressing Back or No will return you to the System Options menu.

  • Page 40: System Update

    Touching the System Update selection in the System Options Menu displays System Update screen as shown in Figure 2-35, showing the current software version of the product. To update the system software locally from the iVAM1-3 front panel, follow the procedure in the Local Update from the Front Panel section of Appendix A.

  • Page 41: Factory Reset

    Mac address 28.) If you have any doubt as to whether you should press Yes, press Back or No instead, and contact Wohler Technical Service for advice. Pressing Back or No will return you to the System Options menu.

  • Page 42: System Information

    System Information Touching the System Details selection in the System Options menu displays the System Details screen as shown in Figure 2-37. This screen lets you view the product Serial Number, Software Version, and various other information. Figure 2-37: System Details Screen The information shown on this screen is read only and cannot be changed.

  • Page 43: Chapter 3: Technical Info

    CHAPTER 3: Technical Info Table 3–1: iVAM1-3 Specifications Specification Values/Domains Power Requirements 100 VAC to 240 VAC ± 10%, 50/60Hz Power Consumption 65 Watts Dimensions 1.75” x 19” x 5.5” (44mm x 483mm x (H x W x D) 140mm), standard 19” rack mounting Shipping/Net Weight 7 lbs.
  • Page 44 Specification Values/Domains COAX (such as Belden 1694A): > 150 m Cable/Fiber Length (max) Single-mode fiber: 10 km AES Inputs 8 AES channels on HD-15 are optional AES Outputs 8 AES channels on HD-15 Upgrades Via USB interface SDI Input Termination 75Ω...
  • Page 45 Table 3–2: iVAM1-3 I/O Options Option Part # Description MADI optical fiber transceiver. Multi-Mode, LC SFP-Madi-MM- 829081 (fiber) connectors. SFP module with software Fiber activation key. MADI optical fiber transceiver. Single-Mode, SFP-Madi-SM- 829082 LC (fiber) connectors. SFP module with Fiber software activation key.
  • Page 46 Table 3–3: iVAM1-3 Option Cards Option Part # Description Enables decoding and monitoring of Dolby® OPT-DOLBY 829167 D, DD+, & E streams. Hardware card with D/DD+/E software activation key. OPT-ANLG/TOS Enable monitoring of 8 Analog channels on 829170 (iVAM) DB-25. TOSLINK included.
  • Page 47 Figure 3–1: iVAM1-3 Block Diagram 3G-SDI Input 1 HDMI Output Video from SDI 1, 2, or SFP 3G-SDI Input 2 Video LKFS-M : -20.5 SDI-1 3G-SDI Output Selector 9 10 11 12 13 14 15 16 Audio & Video from SDI 1, 2, or SFP...

  • Page 48: Chapter 4: The Ivam1-3 Web Gui

    If the default configuration suits your needs and you prefer to use it that way, then you do not need to use the iVAM1-3 Web GUI. The iVAM1-3 Web GUI also allows you to have a remote view of the Meter Screen.

  • Page 49: Network Connection

    GUI. Network Connection When connected to a network, the iVAM1-3 address will need to be changed to another address in order to be compatible with the address assignments for that particular network. Immediately after the host setup is complete, change the iVAM1-3’s address.

  • Page 50: Network Setup

    Network Setup Make network IP Address changes for the local iVAM1-3 Management (MGMT) Port here. Figure 4–2: Set IP Addresses iVAM1-3 The procedure for changing the IP Address information is as follows: 1. Use DHCP? Check this box if your network has a DHCP server and you want to use dynamic addressing.

  • Page 51: Dashboard

    Throughout the Web GUI, pages are a click or two away using the list of selections on the left side. The Dashboard page shows all of the available Preset configurations at a glance. The iVAM1-3 allows you to assign Presets to particular groups. In Figure 4-3, two groups, Operator-1 and Operator-2 are shown.
  • Page 52 Figure 4–4: Dashboard Preset Recall / Edit A Group / Preset Summary is shown in the upper right of the screen. This enables you to see the total number of Groups, Presets and Favorite Presets in the iVAM1-3. Use the button, as shown in Figure 4-4, to toggle between Favorite Presets or All Presets.
  • Page 53 Figure 4–5: Dashboard Preset Edit The Edit options for a Preset are: 1. Delete: Remove the Preset from the system. Do Not delete the currently active Preset. 2. Rename: Rename the Preset, but keep all of its other characteristics. 3. Make Favorite: Make this Preset a favorite. This can be done for frequently used Presets.
  • Page 54 Figure 4–6: Dashboard Group Edit The Edit options for a Group are as follows: 1. Delete: Delete the Group and all of the Presets it contains. 2. Rename: Rename the Group, but keep all of its other characteristics. Page 54...

  • Page 55: Audio Meters

    Audio Meters Click on Audio Meters to remotely display the audio meters of the iVAM1-3. This display is shown in Figure 4-7. Also displayed is the name of the source that the meters are displaying. In Figure 4-7, this is SDI/BNC-1.

  • Page 56: System Preferences

    Loudness is to be calculated on the Loudness Meter. This tab is shown in Figure 4-8. Figure 4–8: Loudness Configuration Tab iVAM1-3 The following settings can be made on this tab: 1. Loudness Standard: This is the loudness standard by which the loudness calculation is made.

  • Page 57: Phase Indicator Configuration Tab

    Select All and Reset All buttons are also provided. Figure 4–9: Phase Indicator Configuration Tab iVAM1-3 When you have finished making the settings click Apply to save them or click Page 57...

  • Page 58: Preset Management

    Selection Selection Preset Input Routing iVAM1-3 1. Preset Configuration: You may create a new Preset, adjust an existing Preset, or create a new Preset from an existing Preset: To create a new Preset, enter the name for the new Preset in the •...
  • Page 59 for an SFP module that is inserted, its monitoring inputs will also be muted. Refer to the Licenses section in this chapter to install software licenses. 2. System Clock Reference: There must be a system clock reference for monitoring to take place. Select a reference from the pull down list. The best choice is a stable, always present clock source locked to house sync.
  • Page 60 However, to make unique settings for this Preset, uncheck Apply Global Phase Indicator Settings and then simply click each switch to the desired on or off position. Select All and Reset All buttons are also provided. Figure 4–11: Global Phase Indicator Enable / Disable Global Phase Indicators iVAM1-3 Page 60...
  • Page 61 10. The Output Routing tab is shown in Figure 4-12 when the OPT-OUTPUT- ROUTING capability was not purchased and licensed. This tab shows how signals from the inputs are routed to the outputs. It allows you to view, but not change this default routing. Figure 4-12: Default Output Routing However, if the OPT-OUTPUT-ROUTING license is installed, this tab allows you to determine exactly which input channels are routed to which outputs.
  • Page 62 Figure 4-13: Output Routing Preset Tab 11. When you have finished creating a Preset or making changes to a Preset, either click the Save button to save the Preset, click the Save & Apply button to save the Preset and make it the current Preset, or click the Reset button to discard the changes just made.

  • Page 63: Dolby Presets

    Dolby Presets Dolby Presets are useful for customers who want to simultaneously monitor both Dolby decoded channels and other inputs or want to have an auto-zoom to monitor a certain pair that is known to be carrying Dolby encoded audio. Creating a Dolby Preset is in many ways very similar to creating any other Preset.

  • Page 64: Output Routing

    Six or eight channels could be directed to the AES outputs, which could feed an external surround sound system. Contact Wohler Sales to purchase the license for the OPT-OUTPUT- ROUTING feature.

  • Page 65: Source Inputs

    1. Speaker/Headphone: Selected inputs will be sent to the left and right speakers. The default routing is set as per the Speaker Assignment, left channels are sent to the left speaker and right channels are sent to Right speaker. 2. Analog XLR: Selected inputs will be mixed to the left and right channels and played through the two Analog XLR Outputs.

  • Page 66: Output Options

    What signal outputs can be controlled using the Output Routing feature? All the outputs on the iVAM1-3 can be controlled using the Output Routing feature. This includes – Internal Speakers, Analog XLR outputs, all 4 pairs of AES outputs on HD-15, AoIP Pair 9 and Pair 10 and all 4 pairs of HDMI outputs.

  • Page 67: What Is The Difference Between Global Output Routing And Output Routing In Presets

    3. AES Pairs 1 through 4: The first 8 channels appear on these outputs in numeric order. They are pre-fade, so they are unaffected by the Volume and Balance knobs or headphone insertion. They are also unaffected by the solo/mute selections on the Audio Meter screen. 4.

  • Page 68: How Do I Make The Xlr Outputs Follow The Audio Meter Screen Solos & Mutes While The Aes Pair-1 Does Not

    How do I make the XLR outputs follow the Audio Meter screen solos & mutes while the AES Pair-1 does not? Make the settings shown in the Solo / Mute column: The setting shown above determines that outputs will follow the Audio Meter screen solos &...

  • Page 69: How Do I Route Only Specific Monitored Channels To The Analog Xlr Outputs

    How do I route only specific monitored channels to the Analog XLR outputs? When the optional OPT-OUTPUT-ROUTING license is purchased, you may route specific channels as shown below. Here Audio Meter channels 9, 11, 13, and 15 are routed to the left analog XLR output and Audio Meter channels 10, 12, 14, and 16 are routed to the right analog XLR output.

  • Page 70: How Do I Ensure That The Outputs Are Automatically Muted When The Headphone Jack Is Inserted

    the audio will appear on the Analog XLR outputs (for amplified external speakers). Make sure that the Speaker Mix checkbox selection is unchecked for Analog/XLR. How do I ensure that the outputs are automatically muted when the Headphone jack is inserted? When the optional OPT-OUTPUT-ROUTING license is purchased, in the Global Output Routing configuration, if the Mute on Headphone Insertion checkbox is ON then the outputs get automatically muted when a headphone is inserted into...

  • Page 71: Preset Replication

    To start Preset Replication, click on the Preset Replication tab on the master unit. This will start the unit discovery process and will list all the iVAM1-3 units that you currently have on your network. The discovery process will continue for a period of 2 minutes.
  • Page 72 created on the Master unit or can use an external preset file that you want to copy to any or all of the Target units. Note that any and all of the Presets that may already be contained in each Target unit will be erased by copying the new Presets.

  • Page 73: Import/Export Presets

    Likewise, it can be used to import a Preset database from a flash drive or the computer hard drive into the iVAM1-3. In this way, using a USB flash drive, a Preset configuration may be only devised once and then duplicated into all of the iVAM1-3 units in a system, saving significant effort.

  • Page 74: Import Configuration

    3. If you have selected the USB Flash Drive button, insert a flash drive in the front panel USB jack on the iVAM1-3 you want to recover Preset data from. 4. If you want to allow existing Presets to be overwritten with imported Presets of the same name, check the Overwrite an existing Preset box.
  • Page 75 Figure 4–20: Database Import iVAM1-3 Page 75...

  • Page 76: System

    These tabs are explained in the following three sections. System Information This tab displays a variety of information about the iVAM1-3. It is shown in Figure 4-21. This information could be useful to view if you are contacting Wohler Technical Service.

  • Page 77: Sfp Information

    This tab displays a variety of information about the module inserted into the SFP slot on the rear panel of the iVAM1-3. It is shown in Figure 4-22. This information could be useful to view if you need to ascertain what module, if any, is installed, or if you are contacting Wohler Technical Service.

  • Page 78: Licenses

    This tab displays the license number for each of the modules or features in the iVAM1-3. It is shown in Figure 4-23. You will use this tab to enter any new license numbers that you purchase. Contact Wohler Sales to obtain new license numbers.

  • Page 79: Factory Reset

    If you have any doubt as to whether you should perform a Factory Reset, do not click the Initiate Factory Reset button. Contact Wohler Technical Service for advice. Factory Reset will also reset your IP address to the default one. After a Note: Factory Reset, the IP Settings will need to be updated.

  • Page 80: Reboot System

    The Reboot System function should be used with a bit of caution. It puts the iVAM1-3 out of service for several minutes while it is rebooting, and this may unexpectedly interfere with the use of the product by the remote operator.

  • Page 81: Appendix A: Software Upgrades

    Introduction This chapter describes how to download a software update file to your computer, transfer it to a USB flash drive and install the updated into an iVAM1-3. Download the Software The iVAM1-3 software update can be found at http://www.wohler.com, under Product Downloads on the Products >...

  • Page 82: Local Update From The Front Panel

    USB flash drive. 2. Insert the USB flash drive with iVAM1-3 update package(s) into the front panel USB jack. 3. From the Menu screen, touch System Options. The screen shown in Figure A-1 will appear.
  • Page 83 The upgrade will take 5 minutes or more, after which the iVAM1-3 will restart. After the system has completed its restart cycle and is once again operational, you may then remove the flash drive.

  • Page 84: Updating Via The Web Gui Using A Flash Drive

    USB flash drive. 2. Connect to the iVAM1-3 with the Wohler Web GUI. Navigate to the System | System Update menu, as shown in Figure A-5. If the iVAM1-3 has recently...
  • Page 85 7. At this point, wait for the update to complete. It may take several minutes, until the it is critical not to disturb the iVAM1-3 or the Web GUI update process is complete. When it is complete, the iVAM1-3 will restart.

  • Page 86: Updating An Ivam1-3 Remotely

    Use the following steps to update the iVAM1-3 software: 1. The Software Update files you downloaded earlier must be in the same computer that is running the Web GUI. Connect to the iVAM1-3 with the Wohler Web GUI. Navigate to the System | System Update menu. Click within the large blue dotted line rectangle at the right of the screen.
  • Page 87 3. At this point, wait for the update to complete. It may take several minutes, until the it is critical not to disturb the iVAM1-3 or the Web GUI update process is complete. When it is complete, the iVAM1-3 will restart.

  • Page 88: Updating Multiple Units Remotely

    Use the following steps to update one or more iVAM1-3 units remotely by transferring the software from a previously updated iVAM1-3: 1. If any of the iVAM1-3 units that you intend to update remotely may be in use, contact the people using them and let them know what you will be doing.
  • Page 89 Figure A-13 – List of Found iVAM1-3 Units 4. Then click Update Selected Devices. The window shown in Figure A-14 will appear. Figure A-14 – Apply System Package 5. Click Apply System Update. The screen shown in Figure A-15 will appear.
  • Page 90 6. At this point, wait for each update to complete. It may take several minutes, it is critical not to disturb any of the iVAM1-3 units or the Web until the update process is complete. When it is complete, each iVAM1-3 will restart.

  • Page 91: Appendix B: Dante Network Setup

    On iVAM1-3, the AoIP source can be selected through the Source Select option. The iVAM1-3 is set up at the Wohler factory to be used as a slave rather than a master within the Dante network. Other devices or software, such as a Dante Controller, are expected to be responsible for most device configurations and all audio routing.

  • Page 92: What Is In The Ivam1-3 For Dante

    Figure B–2: Device View Up to 16 of the 64 AoIP receive channels can be monitored at once in the iVAM1-3. The iVAM1-3 transmits up to 20 channels. 1 to 16 are the monitored channel in prefade mode.

  • Page 93: Dante Tm Device Setup

    Dante Device Setup The iVAM1-3’s default Dante Device Name is “Wohler- …” followed by the last 6 digits of the Dante port MAC address, as shown in Figure B-3. This name can be changed by the Dante Controller to appear that way on the network, but that will not change the iVAM1-3’s unit name appearing on GUI pages and iVAM1-3 Remote...

  • Page 94: Dante Clock Selection

    Dante Clock Selection While the Brooklyn’s internal clock is highly accurate, the iVAM1-3 does not have provisions for external sync clocks, such as those that are GPS or media reference (video genlock or audio word clock) based. So it is generally not the best candidate to be the PTP Master Clock (commonly called the “grandfather clock”) for the...

  • Page 95: Aes67

    AES67 The iVAM1-3 Brooklyn II can be configured for AES67 operation. AES67 operation with Dante is limited to eight or less receive and transmit channels at 48 kHz sample rates. 24 bit linear (L24) encoding and 1 msec packet time are fixed default transmit parameters.
  • Page 96 Figure B–7: Device View - Network Config Page 96...

  • Page 97: Device Lock

    Flows window shown in Figure B-8. Figure B–8: Multicast Device Lock Audinate recently added a feature whereby a remote controller can send a command to lock Dante network device configurations. The iVAM1-3 does not implement the Device Lock command at this time. Page 97...

  • Page 98: Dante Firmware Upgrades

    Dante Firmware Upgrades Wohler iVAM1-3 monitors ship with current Brooklyn II firmware as of the option installation date. The version information is found in the Dante Controller Device View-Status page. iAM software/firmware is tested with the latest Dante code release. Therefore it is strongly recommended that iVAM1-3 and Dante software/ firmware be updated at the same time to ensure compatibility and support of the latest features.

  • Page 99: Appendix D: Ravenna (Zman) Setup

    Merging ZMAN Card is virtually plug and play. The iAM rear panel AoIP jack supports 1Gb/s and 100Mb/s Ethernet devices in Ravenna Audio over IP network configurations. iVAM1-3 channel source selections are made by choosing Input Type ‘AoIP’ in the Configuration-Configure Presets page regardless of which AoIP option is installed.

  • Page 100: Configuring The Aoip Merging Option Card

    The Merging Ravenna card runs specific firmware from Merging and augmented by Wohler for use within the iVAM1-3. The card will not function correctly if the user downloads and installs firmware from any source besides Wohler. The Wohler augmentation includes the ability to support 64 channels.

  • Page 101: Getting Started | General Settings

    Merging Ravenna configuration page. Also, the ICON of the card will appear in the main part of the Aneman screen. Double Clicking on the ICON also will load the Configuration screen. For browser access, the URL is <Ravenna subnet>.x/advanced/index.html. This brings up the Merging Ravenna configuration page.

  • Page 102: Getting Started | Ptp

    Getting Started | PTP This tab is shown in the following figure. This configuration page refers to how your Ravenna network is synchronized to clocks. Figure D-2: Getting Started | PTP The elements of this tab are as follows: 1. Global Settings: The default value for PTP a.

  • Page 103: Getting Started | Session Sources

    a. Lock: This shows if the device is locked to PTP (Locked -Locking - Unlocked) b. Master: This is true or false for the current device. c. GMID: This is the current GrandMasterID (PTP Master) d. Delta (ns): This is the time delta between the device and the PTP master.

  • Page 104: Getting Started | Session Sinks

    9. Codec: The possible bit rate values are L24, L16, DSD64, DSD64_32, DSD128, DSD128_32, and DSD256. Note that these values are sampling rate dependent. 10.Frame size (samples): This the frame size of the current source. 11.DSCP: The audio DSCP should be set to 34 for RTP AES67 or 46 for RTP Ravenna.

  • Page 105: Getting Started | Session Info

    7. Ignore RefClk GMID - accept source locked to any PTP master: This feature is useful when you want to connect a stream through Internet (for example with two PTP Masters (GPS) at each location. This allows making of connections with devices locked to different traceable PTP Masters. See RefClk PTP traceable on the Session Sources tab.

  • Page 106: Getting Started | Ins/Outs

    Getting Started | Ins/Outs This tab allows you to change the name of the specific Inputs and/or Outputs. Figure D-5: Getting Started | Ins/Outs Getting Started | I/O Router This page allows remapping of incoming channels to different internal channel assignments.

  • Page 107: Operation

    IAM interface for display on meters and speakers, etc. The iVAM1-3 must be set to receive AOIP from the Source Select Front Panel menu or a browser iVAM1-3 GUI.
  • Page 108 For example, for monitoring 2 SDI sources (four 8 channel Flows), assign two flows to 1-8 and 9-16 and the next SDI signal to 17-24 and 25- 32. Touch the iVAM1-3 AOIP selection menu to select the proper range to monitor, up to 57-64.

  • Page 109: Zman Session Sources

    Figure D-8: Session Sources Tab ZMAN Updating The Zman card is pre-initialized with the correct Wohler firmware load. In case of future upgrades, use the following steps: 1. In Aneman, right click the ZMAN entry on the bottom Devices section, and select Maintenance Mode.

  • Page 110: Appendix E: Api Documentation

    Introduction This appendix discusses ways to use the Application Program Interface (API) to allow third party equipment to remotely access options and settings of the iVAM1-3. It includes specific code examples for commonly used requests. The API uses JavaScript Object Notation (JSON) as its communication language.
  • Page 111 2. GET Preset Configuration Method: GET /api/cf/presets/<int:preset ID> Example Response: "error": null, "params": { "PresetId": "result": { "GroupId": 1, "PresetName": "SDI", "Data": { "Name": { "Program": "", "Group": "G1", "Preset": "SDI" "VideoSource": { "InputNo": 1, "ConnectorType": "BNC", "Slot": 1, "Type": "SDI", "Cage": "DolbyDetection": { "NonAudio": "Enabled",...
  • Page 112 "Name": "Stereo 2.0 #5", "Type": "Stereo", "MuteOnPresetRecall": true "NumberOfMeters": 2, "FirstMeter": 11, "Name": "Stereo 2.0 #6", "Type": "Stereo", "MuteOnPresetRecall": true "NumberOfMeters": 2, "FirstMeter": 13, "Name": "Stereo 2.0 #7", "Type": "Stereo", "MuteOnPresetRecall": true "NumberOfMeters": 2, "FirstMeter": 15, "Name": "Stereo 2.0 #8", "Type": "Stereo", "MuteOnPresetRecall": true...
  • Page 113 "3": { "Source": { "Slot": 1, "Cage": 1, "Channel": 3, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Left" "4": { "Source": { "Slot": 1, "Cage": 1, "Channel": 4, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI"...
  • Page 114 "DelayMs": 0, "Speaker": "Left" "5": { "Slot": 0, "Cage": 0, "ConnectorType": "None", "Source": { "Slot": 1, "Cage": 1, "Channel": 5, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Left" "9": { "Source": { "Slot": 1, "Cage": 1, "Channel": 9, "ConnectorType": "BNC",...
  • Page 115 "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Left" "10": { "Source": { "Slot": 1, "Cage": 1, "Channel": 10, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Right" "12": { "Source": { "Slot": 1, "Cage": 1, "Channel": 12,...
  • Page 116 3. GET list of groups/presets Method: GET /api/cf/groups Example Response: "error": null, "params": null, "result": [ "Name": "G1", "Presets": [ "Favorite": 1, "Name": "AES", "Id": "Favorite": 0, "Name": "SDI", "Id": "Id": "Name": "AES", "Presets": [ "Favorite": 0, "Name": "dfsdf", "Id": "Id": 4.
  • Page 117 5. POST to delete the group Method: POST api/op/group/<int:groupID>/delete Example Response: "error": null, "params": { "GroupId": "result": { "GroupId": 6. POST to delete the preset Method: POST api/op/preset/<int:presetID>/delete Example Response: "error": null, "params": { "PresetId": "result": { "PresetId": 7. POST to rename group Method: POST /api/op/group/<int:groupID>/newGrpNameSdi/rename Example Response:...
  • Page 118 8. POST to rename preset Method: POST /api/op/preset/<int:presetID>/newPresetNameTest/rename Example Response: "error": null, "params": { "PresetId": 1, "PresetName": "newPresetNameTest" "result": { "PresetId": 1, "PresetName": "newPresetNameTest" 9. POST to set preset as Favorite Method: POST /api/op/preset/<int:presetID>/<favoriteVal>/favorite Example Response: "error": null, "params": { "PresetId": 4, "Favorite": "result": {...
  • Page 119 "Sfp-1.Sdi", "Sfp-1.Smpte2022", "Sfp-1.Smpte2110", 2. Body content for MADI "SourceType": <String: MADI Input Source>, "ChannelGroup": <Int: 1-4> Note: Allowed MADI input sources are "Madi.Coax" and "Madi.Optical" . ChannelGroup 1 => Channels 1-16 and ChannelGroup 2 => Channels 17-32 and so on . 3.
  • Page 120 Example Response: "unit_name": "iVam", "model": "iVam", "api_version": 1, "message": "Input Source Toslink has been applied successfully", "serial_number": "162978", "status": Page...

This manual is also suitable for:

8121-0100

Table of Contents
