The 6-pin RJ socket for the RS-232 Auxiliary Port is shown in Figure F-2. The Pin List is
shown in Table F-4.
1 2

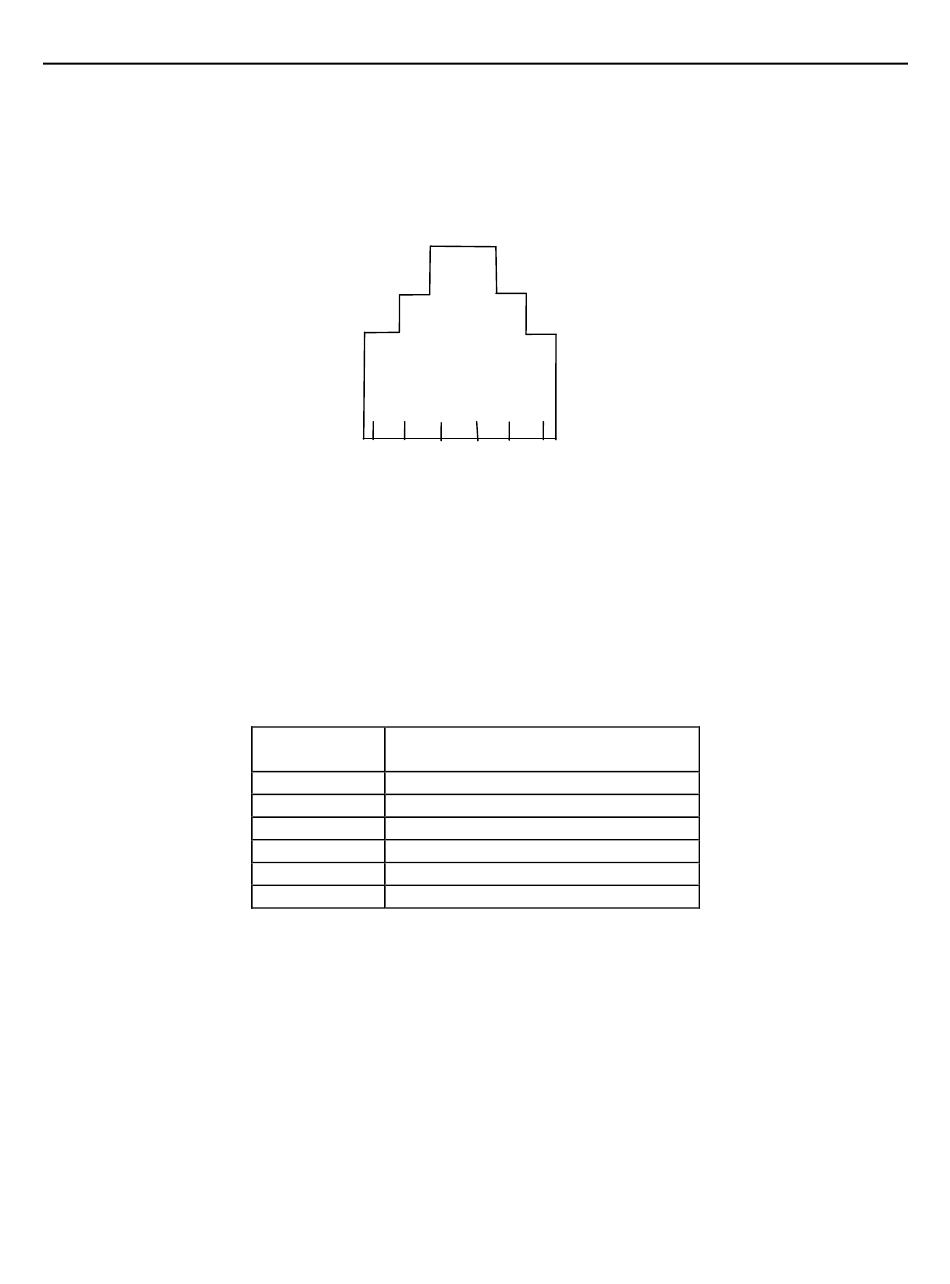

Figure F-2. RS-232 Auxiliary Port, 6-Pin, RJ Socket

Table F-4. RS-232 Auxiliary Port Pin List

PIN
NUMBER
1
2
3
4
5
6
3 4 5 6
SIGNAL
(MICR Plus as Reference)
+16V DC, unregulated
RXD
TXD
CTS
RTS
GND
Appendix F. Pin Lists
59
