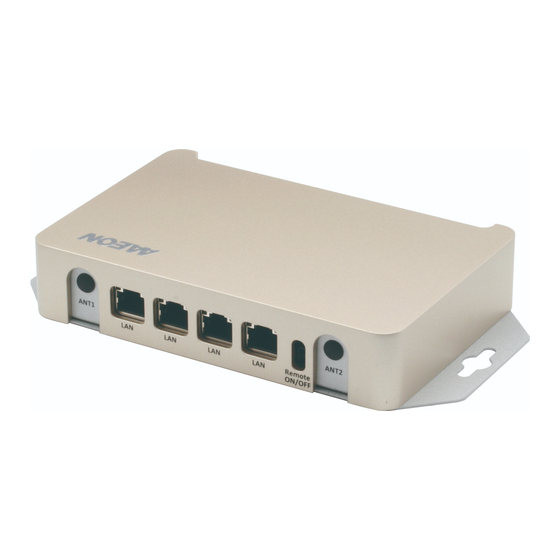

- Page 1 BOXER-8120AI Compact Fanless Embedded AI@Edge Box PC User’s Manual 3 Last Updated: October 22, 2019...
- Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
- Page 3 Acknowledgement All other products’ name or trademarks are properties of their respective owners. NVIDIA, the NVIDIA logo, and Jetson are trademarks of the NVIDIA Corporation ⚫ Microsoft Windows is a registered trademark of Microsoft Corp. ⚫ Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel Corporation ⚫...
- Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity BOXER-8120AI ⚫ Wallmount bracket ⚫ Screw Package ⚫ Product DVD with User’s Manual (in pdf) ⚫ If any of these items are missing or damaged, please contact your distributor or sales representative immediately.
- Page 5 (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the product page at AAEON.com for the latest version of this document. Preface...
- Page 6 All cautions and warnings on the device should be noted. All cables and adapters supplied by AAEON are certified and in accordance with the material safety laws and regulations of the country of sale. Do not use any cables or adapters not supplied by AAEON to prevent system malfunction or fires.
- Page 7 As most electronic components are sensitive to static electrical charge, be sure to ground yourself to prevent static charge when installing the internal components. Use a grounding wrist strap and contain all electronic components in any static-shielded containers. If any of the following situations arises, please the contact our service personnel: Damaged power cord or plug Liquid intrusion to the device iii.
- Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
- Page 9 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON System QO4-381 Rev.A0 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚(PBDE) (Pb) (Hg) (Cd) (Cr(VI)) (PBB) 印刷电路板 × ○ ○ ○ ○ ○ 及其电子组件 外部信号 × ○ ○ ○ ○ ○ 连接器及线材 ○...
- Page 10 China RoHS Requirement (EN) Hazardous and Toxic Materials List AAEON System QO4-381 Rev.A0 Hazardous or Toxic Materials or Elements Component Name PCB and Components Wires & Connectors for Ext.Connections Chassis CPU & RAM HDD Drive LCD Module Optical Drive Touch Control...
-
Page 11: Table Of Contents
Table of Contents Chapter 1 - Product Specifications ....................1 Specifications ....................... 2 Product Notice ......................4 Chapter 2 – Hardware Information ..................... 5 Dimensions ........................6 Jumpers and connectors ................... 7 List of Jumpers ......................8 2.3.1 Setting Jumpers ..................8 2.3.2 Auto Power Button (CN9) ................ - Page 12 Wall Mount Assembly ..................... 22 Chapter 3 – OS Flash guide ......................23 Force USB Recovery Mode ..................24 Software & BSP ......................25 Preface...
-
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications... -
Page 14: Specifications
SMA Antenna Holes x2 10~24V DC-In Power input x1 Remote Power On/Off x 1 MicroSD x1 SATA x1 (option) Expansion USB 2 x 3 (option) Power LED Indicator AAEON ACLinux 4.9, Compliance with Ubuntu OS Support 18.04 Chapter 1 – Product Specifications... - Page 15 Power Supply 10~24V DC-In with DC Jack Power Requirement Mechanical Mounting Wallmount Dimensions (W x H x D) 153mm(W) x 30mm(H) x 101mm(D) Gross Weight 4.40 lbs. (2 kg) Net Weight 2.20 lbs. (1 kg) Environmental -4°F ~ 122°F (-20°C ~ 50°C, according to Operating Temperature IEC682-14 with 0.5 m/s AirFlow;...
-
Page 16: Product Notice
Product Notice OTG: OTG port is ideally for flashing image only. COM1/2: Support 1.8 meter length cable when baud rate 115200bps, and 15 meter cable when baud rate 9600bps. USB ports: USB ports are not support USB DVD ROM because of file system. LAN LED heavier table LAN Indicator Behavior Chapter 1 –... -
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information... -
Page 18: Dimensions
Dimensions Chapter 2 – Hardware Information... -
Page 19: Jumpers And Connectors
Jumpers and connectors Chapter 2 – Hardware Information... -
Page 20: List Of Jumpers
List of Jumpers The board has a number of jumpers that allow you to configure your system to suit your application. The table below shows the function of each of the board's jumpers Label Function AT mode select 2.3.1 Setting Jumpers You configure your card to match the needs of your application by setting jumpers. -
Page 21: Auto Power Button (Cn9)
2.3.2 Auto Power Button (CN9) Disable(Default) Enable Function Open ATX (Default) Close AT Chapter 2 – Hardware Information... -
Page 22: List Of Connectors
List of Connectors The board has a number of connectors that allow you to configure your system to suit your application. The table below shows the function of each of the board's connectors Label Function SATA PWR connector Remote button cable connector RTC battery connector SATA connector Micro SD connector... - Page 23 GIGA LAN 1 GIGA LAN 2 GIGA LAN 3 GIGA LAN 4 Chapter 2 – Hardware Information...
-
Page 24: Sata Pwr Port (Cn1)
2.4.1 SATA PWR Port (CN1) Signal Signal 2.4.2 Remote Power on connector (CN2) Signal Signal PANSWH# 2.4.3 RTC Connector (CN3) Signal Signal Chapter 2 – Hardware Information... -
Page 25: Sata Port (Cn4)
2.4.4 SATA Port (CN4) Pin 1 Pin 7 Signal Signal SATA TX+ SATA TX- SATA RX- SATA RX+ 2.4.5 Micro SD (CN5) Signal Signal SDCARD D3 SDCARD CMD SDCARD PWR(+3.3V) SDCARD CLK SDCARD D0 SDCARD D1 SDCARD D2 SDCARD CD Chapter 2 –... -
Page 26: Usb 2.0 Port (Cn6/7/8)
2.4.6 USB 2.0 Port (CN6/7/8) USB2.0 connector (internal BOX connector) Signal Signal VBUS USB1- USB1+ 2.4.7 USB 2.0 OTG connector (CN10) Signal Signal VBUS USB1- USB1+ Chapter 2 – Hardware Information... -
Page 27: Pwm Fan Connector (Cn11)
2.4.8 PWM FAN connector (CN11) Signal Signal FAN PWM FAN TACH Chapter 2 – Hardware Information... -
Page 28: Tx2 Module Connector (Cn12)
2.4.9 TX2 Module connector (CN12) Chapter 2 – Hardware Information... -
Page 29: Can Bus Connector (Cn15)
2.4.10 CAN BUS connector (CN15) Signal Signal CAN WAKE CAN0 STBY CAN0 RX CAN0 TX CAN0 ERR CAN1 STBY CAN1 RX CAN1 TX CAN1 ERR Chapter 2 – Hardware Information... -
Page 30: Hdmi Connector (Cn18)
2.4.11 HDMI connector (CN18) Signal Signal HDMI_DATA2_P HDMI_DATA2_N HDMI_DATA1_P HDMI_DATA1_N HDMI_DATA0_P HDMI_DATA0_N HDMI_CLK_P HDMI_CLK_N HDMI_SCL HDMI_SDA HDMI_PWR HDMI_HDP Chapter 2 – Hardware Information... -
Page 31: Usb3.0 Connector (Cn19)
2.4.12 USB3.0 connector (CN19) Signal Signal VBUS_1 VBUS_2 (A)D- (B)D- (A)D+ (B)D+ (A)SSRX- (B)SSRX- (A)SSRX+ (B)SSRX+ (A)SSTX- (B)SSTX- (A)SSTX+ (B)SSTX+ 2.4.13 Power in connector (CN20) Signal Signal PWR IN Chapter 2 – Hardware Information... -
Page 32: Com Port Connector (Cn21/22)
2.4.14 COM port connector (CN21/22) RS-232 2.4.15 UART Debug port connector (CN24) Signal Signal +3.3V Chapter 2 – Hardware Information... -
Page 33: Lan (Rj-45) Port (Bt1/U1/U2/U3)
2.4.16 LAN (RJ-45) Port (BT1/U1/U2/U3) Signal Signal MDI0+ MDI0- MDI1+ MDI1- MDI2+ MDI2- MDI3+ MDI3- Chapter 2 – Hardware Information... -
Page 34: Wall Mount Assembly
Wall Mount Assembly Chapter 2 – Hardware Information... -
Page 35: Chapter 3 - Os Flash Guide
Chapter 3 Chapter 3 – OS Flash guide... -
Page 36: Force Usb Recovery Mode
Force USB Recovery Mode To place system in Force USB Recovery Mode: 1. Power down the device. If connected, remove the AC adapter from the device. The device MUST be powered OFF, not in a suspend or sleep state. 2. Connect the Micro-B plug on the USB cable to the Recovery (USB Micro-B) Port on the device and the other end to an available USB port on the host PC. -
Page 37: Software & Bsp
Software & BSP Please follow the steps below to install the test image. (1) Download the image folder from the official AAEON website at: https://www.aaeon.com/en/p/fanless-embedded-computers-boxer-8120ai#downloads (2) Unzip the Image file unzip [Image File Name] For example: unzip ACLinux_4.9_ACLNX49D.NV02.BOXER-8110-8120-8130AI.6.2.tar (3) Enter bootloader folder cd bootloader (4) Enter Force USB Recovery Mode.
