TECHNICAL DATASHEET

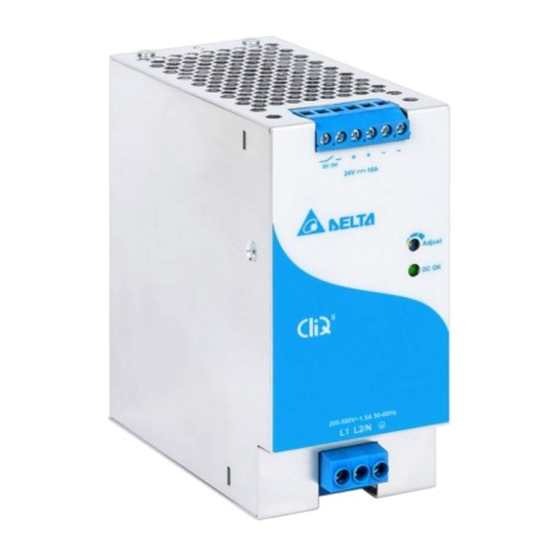

CliQ II DIN Rail Power Supply
24 V 240 W 2 Phase / DRP-24V240W2BN
General Description
The CliQ II DIN rail power supply series with a model offering two phase 2 x 180-550 Vac (for L-L) or single phase 180-305 Vac (for L-
N) for 24 V/10 A output. The DRP-24V240W2BN has safety approvals for single phase and two phase input according to
IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and UL 508 safety standards. The product features wide AC input voltage for single or two
phase range. Such feature can protect the power supply from damage when user accidentally apply two phase input on the single
phase power supply. Other advantages include reduced external input protection components and improved installation time since
there is only two phase connection. The product performs under wide operating temperature from -30°C to 70°C with 2-Phase of 3-
Phase application (for L-L). Conformal coating is applied on the PCBA to protect against common dust and chemical pollutant to
withstand harsh industrial environments. Other major safety approvals included.
Model Information
CliQ II DIN Rail Power Supply
Model Number
DRP-24V240W2BN
Model Numbering
DR P –
DIN Rail Power Supply
All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.
1
www.DeltaPSU.com (September 2021, Rev. 06)
Input Voltage Range
2 x 180-550 Vac (2-Phase)
180-305 Vac (Single Phase)
254-780 Vdc
24V
240W
Output Voltage Output Power
Highlights & Features
Designed for single phase input 180-305 Vac (for L-N) or
•
2 of 3-Phase system 2 x 180-550 Vac (for L-L) or 254-780 Vdc
Compact and corrosion resistant aluminium casing
•
• High Efficiency > 90.0%
Conforms to harmonic current IEC/EN 61000-3-2, Class A
•
• Wide operating temperature range from -30°C to +70°C
Built-in DC OK Contact
•
• Conformal coating on PCBAs to protect against common
dust and chemical pollutants
• Certified according to IEC/EN/UL 62368-1
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Rated Output Voltage
24 Vdc
2 B
Two Phase CliQ II Series
DRP-24V240W2BN
0.81 kg (1.79 lb)
124 x 60 x 117 mm
(4.88 x 2.36 x 4.61 inch)
Rated Output Current
10.0 A
N
N - Metal Case,
without Class I, Div 2 and ATEX
