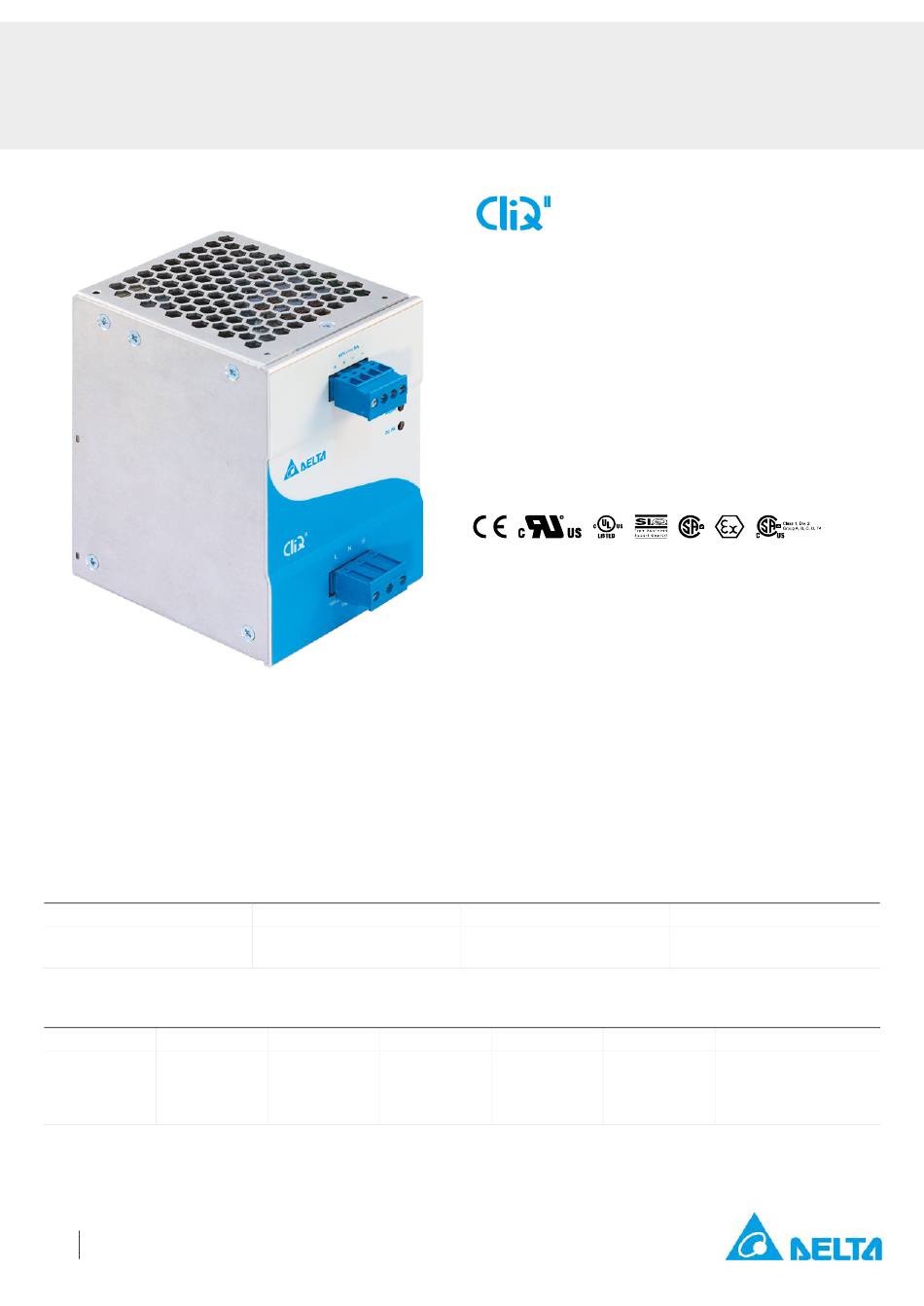

TECHNICAL DATASHEET
CliQ II DIN Rail Power Supply
48V 240W 1 Phase / DRP048V240W1B
General Description
The CliQ II 1-phase DIN Rail power supply series also offers output voltage of 48V. These products are encased in rugged yet
lightweight full aluminium body that can withstand shock and vibration according to IEC 60068-2 standard. The series of 1-phase
products operates over a wide temperature range of -25°C to +80°C and wide input range from 85Vac to 264Vac, with no power
de-rating throughout the entire range. Another great feature is the conformal coating on the PCBA which allows selected models to be
certified to ATEX and Class I, Div 2 for use in hazardous locations. The design conforms to harmonic current emission
IEC/EN 61000-3-2 standard.
Model Information
CliQ II DIN Rail Power Supply
Model Number
DRP048V240W1B
Model Numbering
DR
P
DIN Rail
Power Supply
All parameters are specified at 25°C ambient unless otherwise noted.
1
www.DeltaPSU.com (September 2013, Rev. 01)
Input Voltage Range
85-264Vac (120-375Vdc)
048V
240W
Output Voltage
Output Power
Highlights & Features
Worldwide AC input range without power de-rating
Power Boost 150% for 5 seconds
Full corrosion resistant Aluminium chassis
Extreme low temperature cold start at -40°C
Conformal coating on PCBA to protect against chemical and
dust pollutants
Hazardous Locations approval to ATEX and Class I, Div 2
(DRP048V240W1BA)
Overvoltage / Overcurrent / Over Temperature Protections
IP20 Compliant
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Output Voltage
48Vdc
1
B
Single Phase
CliQ II Series
DRP048V240W1B
0.96 kg
121 x 85 x 124.1 mm
Output Current
5.00A
A - Metal Case,
with Class I, Div 2
N - Metal Case,
without Class I, Div 2
