Delta CliQ II DRP024V480W3B Series Technical Data Sheet

TECHNICAL DATASHEET

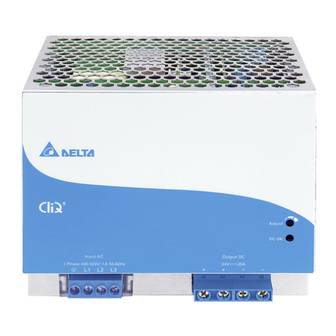

CliQ II DIN Rail Power Supply
24V 480W 3 Phase / DRP024V480W3B
General Description
The CliQ II 3-phase DIN rail power supply series offers output voltage of 24V. These products are encased in rugged yet lightweight full
aluminium body that can withstand shock and vibration according to IEC 60068-2 standard. The series of 3-phase products can
operate over a wide temperature range of -25°C to +80°C. These products also feature universal AC input voltage range for 3-phase
from 320Vac to 600Vac or 2-phase from 360Vac to 600Vac, and the power will not de-rate throughout the entire range. Another great
feature is the conformal coating on the PCBA which allows selected models to be certified to ATEX and Class I, Div 2 for use in
hazardous locations. The design conforms to harmonic current emission IEC/EN 61000-3-2, Class A.
Model Information
CliQ II DIN Rail Power Supply
Model Number
DRP024V480W3B☐
Model Numbering
DR P
DIN Rail Power Supply
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (December 2018, Rev. 03)
Input Voltage Range
3 x 320-600Vac (3-Phase) or
2 x 360-600Vac (2-Phase)
024V
480W
Output Voltage Output Power
□
Highlights & Features
Universal AC input voltage: 3 x 320Vac – 600Vac (3-Phase)
•
or 2 x 360Vac – 600Vac (2-Phase)
Power will not de-rate for the entire input voltage range
•
• Power Boost of 150% for 5 seconds and 200% for 2 seconds
Full corrosion resistant aluminium chassis
•
• Conformal coating on PCBA to protect against chemical and
dust pollutants
• Hazardous Locations approval to ATEX and Class I, Div 2
(DRP024V480W3BA)
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Rated Output Voltage
24Vdc
3 B
Three Phase CliQ II Series
DRP024V480W3B☐
1.35 kg (2.98 lb)
121 x 140 x 117.3 mm
(4.76 x 5.51 x 4.62 inch)
Rated Output Current
20.0A
□
A - Metal Case,
with Class I, Div 2
N - Metal Case,
without Class I, Div 2
