Delta DRP024V480W1B Series Technical Data Sheet

TECHNICAL DATASHEET

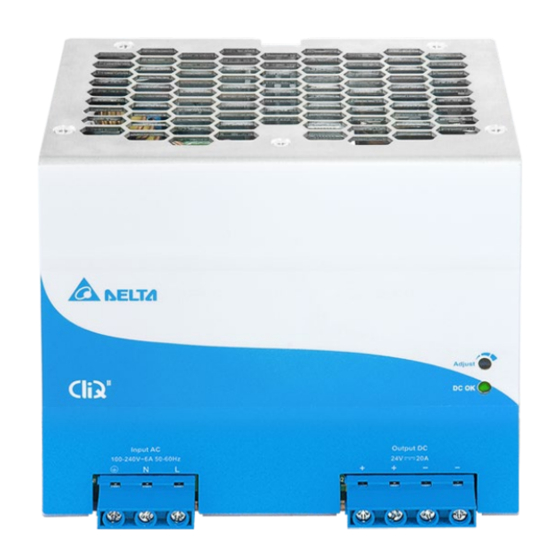

CliQ II DIN Rail Power Supply
24V 480W 1 Phase / DRP024V480W1B
General Description
The CliQ II DIN rail power supply series from one of the world's leading power supply companies, Delta Electronics Group, offers
output voltage of 24V. These products are encased in rugged yet lightweight full aluminium body that can withstand shock and vibration
according to IEC 60068-2 standard. The DRP024V480W1B☐ can operate over a wide temperature range of -25°C to +75°C. The
series of single phase products also features universal AC input voltage range from 85Vac to 264Vac and the power will not de-rate
throughout the entire range. Another great feature is the conformal coating on the PCBA which allows selected models to be certified to
ATEX and Class I, Div 2 for use in hazardous locations. The design conforms to harmonic current emission IEC/EN 61000-3-2, Class A.
Model Information
CliQ II DIN Rail Power Supply
Model Number
DRP024V480W1B☐
Model Numbering
DR P
DIN Rail Power Supply
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (November 2020, Rev. 07)
Input Voltage Range
85-264Vac (120-375Vdc)
024V
480W
Output Voltage Output Power
□
Highlights & Features
Universal AC input voltage range
•
• Power will not de-rate for the entire input voltage range
High Efficiency > 90.0%
•
• Power Boost of 150% for 5 seconds and 200% for 2 seconds
Full corrosion resistant aluminium casing
•
• Extreme low temperature cold start at -40°C
Conformal coating on PCBAs to protect against common
•
dust and chemical pollutants
Hazardous Locations approval to ATEX and Class I, Div 2
•
(DRP024V480W1BA)
Certified according to IEC/EN/UL 62368-1
•
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Rated Output Voltage
24Vdc
1 B
Single Phase CliQ II Series
DRP024V480W1B☐
1.37 kg (3.02 lb)
121 x 144 x 118.6 mm
(4.76 x 5.67 x 4.67 inch)
Rated Output Current
20.0A
□
A - Metal Case,
with Class I, Div 2
N - Metal Case,
without Class I, Div 2
