Delta DRP048V060W1B Series Technical Data Sheet

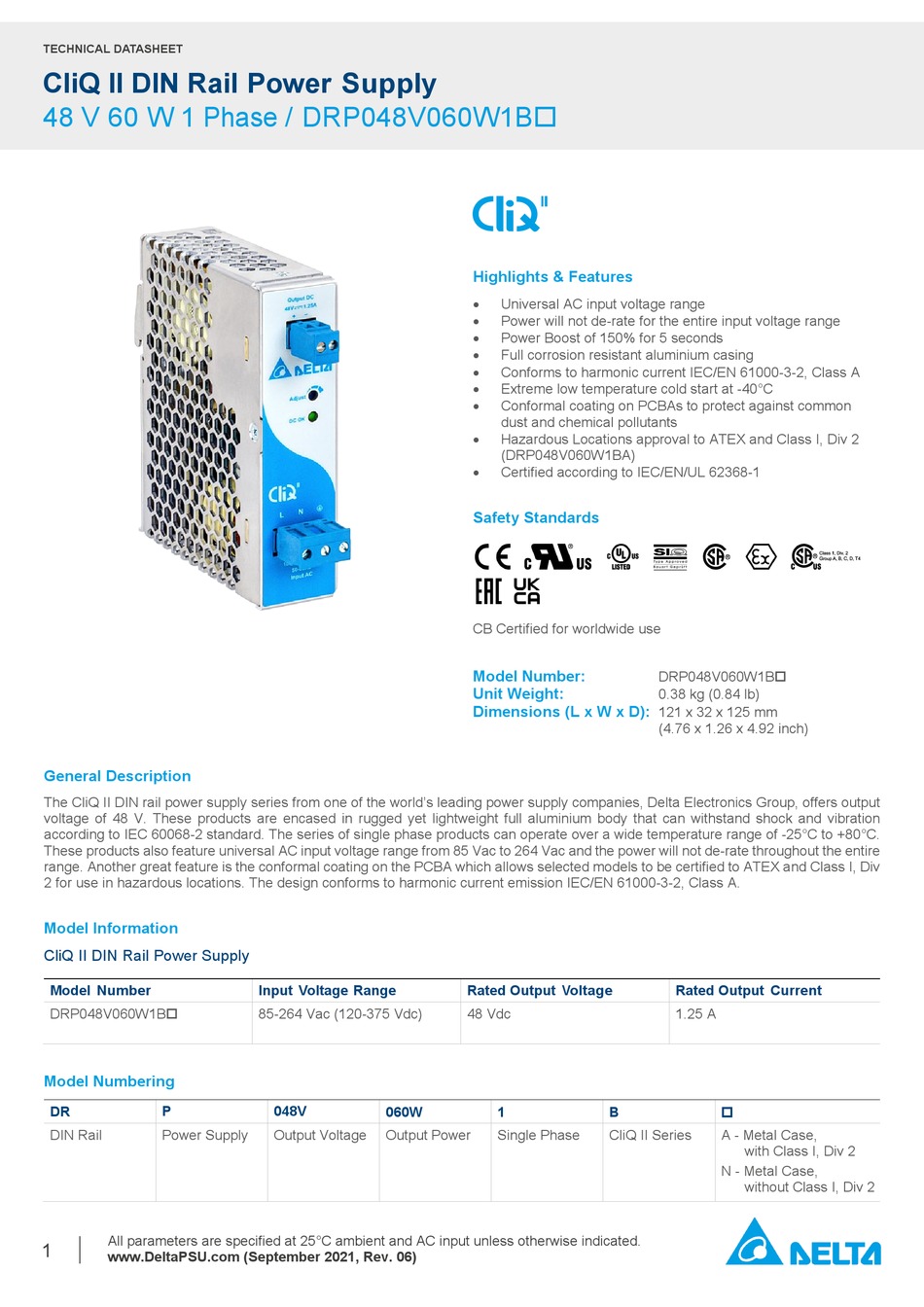

TECHNICAL DATASHEET

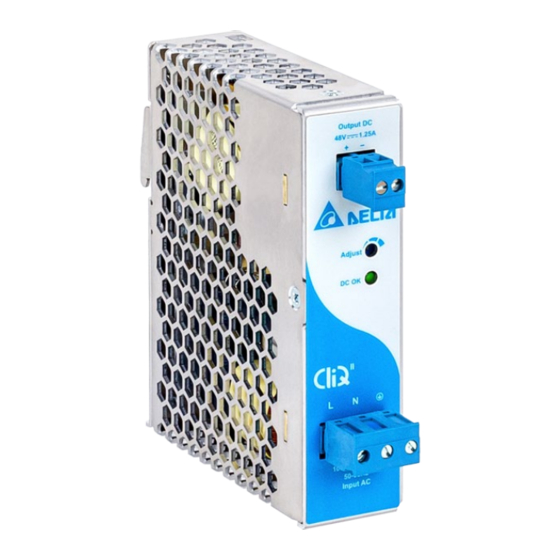

CliQ II DIN Rail Power Supply
48 V 60 W 1 Phase / DRP048V060W1B
General Description
The CliQ II DIN rail power supply series from one of the world's leading power supply companies, Delta Electronics Group, offers output
voltage of 48 V. These products are encased in rugged yet lightweight full aluminium body that can withstand shock and vibration
according to IEC 60068-2 standard. The series of single phase products can operate over a wide temperature range of -25°C to +80°C.
These products also feature universal AC input voltage range from 85 Vac to 264 Vac and the power will not de-rate throughout the entire
range. Another great feature is the conformal coating on the PCBA which allows selected models to be certified to ATEX and Class I, Div
2 for use in hazardous locations. The design conforms to harmonic current emission IEC/EN 61000-3-2, Class A.
Model Information
CliQ II DIN Rail Power Supply
Model Number
DRP048V060W1B
Model Numbering
DR P
DIN Rail Power Supply
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (September 2021, Rev. 06)
Input Voltage Range
85-264 Vac (120-375 Vdc)
048V
060W
Output Voltage Output Power
Highlights & Features
Universal AC input voltage range
•
• Power will not de-rate for the entire input voltage range
Power Boost of 150% for 5 seconds
•
• Full corrosion resistant aluminium casing
Conforms to harmonic current IEC/EN 61000-3-2, Class A
•
• Extreme low temperature cold start at -40°C
Conformal coating on PCBAs to protect against common
•
dust and chemical pollutants
Hazardous Locations approval to ATEX and Class I, Div 2
•
(DRP048V060W1BA)
Certified according to IEC/EN/UL 62368-1
•
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Rated Output Voltage
48 Vdc
1 B
Single Phase CliQ II Series
DRP048V060W1B
0.38 kg (0.84 lb)
121 x 32 x 125 mm
(4.76 x 1.26 x 4.92 inch)
Rated Output Current
1.25 A

A - Metal Case,
with Class I, Div 2
N - Metal Case,
without Class I, Div 2
