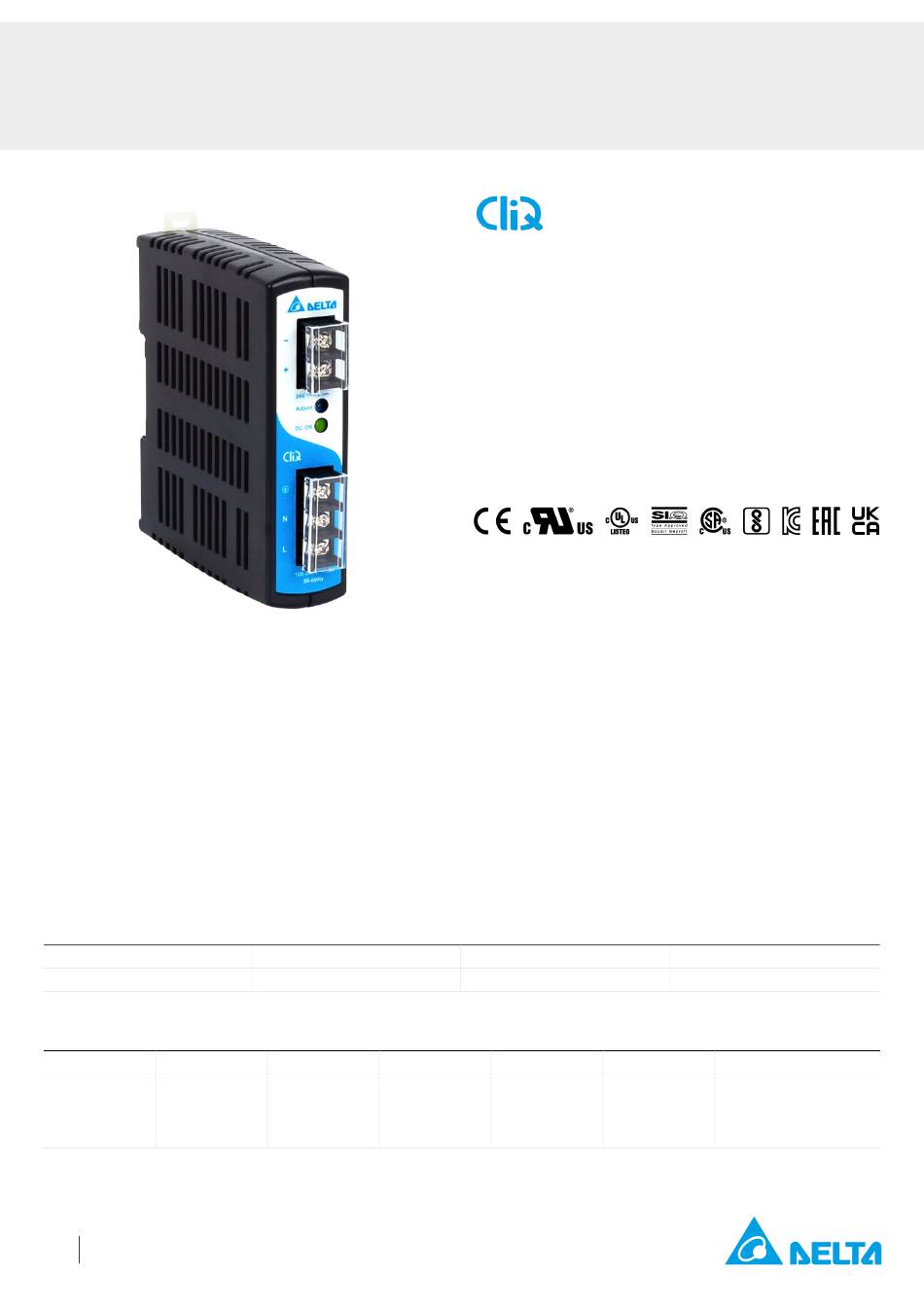

TECHNICAL DATASHEET
CliQ DIN Rail Power Supply
24 V 60 W 1 Phase / DRP024V060W1AZ
General Description

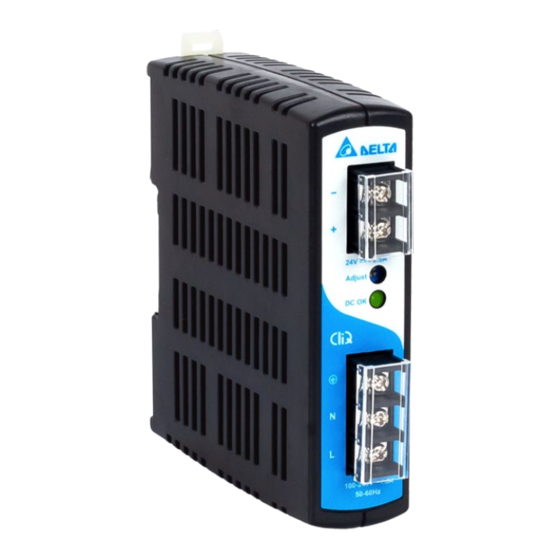

The DRP024V060W1AZ is part of the CliQ DIN rail power supply series from one of the world's leading power supply companies, Delta
Electronics Group, offers state-of-the-art designs made to withstand harsh industrial environments. Its rugged plastic casing has a
compact body at only 32 mm, which is both shock and vibration resistant according to IEC 60068-2 standard. The DRP024V060W1AZ
operates within a wide temperature range from -20°C to +80°C and universal AC input voltage range from 85 Vac to 264 Vac, the power
will not de-rate for the entire input voltage range value. The single phase power supply unit includes overvoltage, overcurrent, over
temperature and short circuit protections. The feature built-in Power Boost of 150% for 3 seconds enables reserve power to be always
available for reliable startup of loads with high inrush current, thus eliminating the need of a more expensive power supply unit at higher
power rating.
Model Information
CliQ DIN Rail Power Supply
Model Number
DRP024V060W1AZ
Model Numbering
DR
P
DIN Rail
Power Supply
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (September 2021, Rev. 10)
Input Voltage Range
85-264 Vac (120-375 Vdc)
024V
060W
Output Voltage
Output Power
Highlights & Features
Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Power Boost of 150% for 3 seconds
Rugged and compact design (Vibration 5 G, Shock 30 G)
Conforms to harmonics current IEC/EN 61000-3-2, Class A
Wide operating temperature range -20°C to 80°C
Overvoltage / Overcurrent / Over Temperature / Short Circuit
Protections
Certified according to IEC/EN/UL 62368-1
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Rated Output Voltage
24 Vdc
1
A
Single Phase
CliQ Series
DRP024V060W1AZ
0.33 kg (0.73 lb)
120.6 x 32 x 113 mm
(4.75 x 1.26 x 4.45 inch)
Rated Output Current
2.50 A
Z
Plastic Case

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRP024V060W1AZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta DRP024V060W1AZ

  • Page 1 General Description The DRP024V060W1AZ is part of the CliQ DIN rail power supply series from one of the world’s leading power supply companies, Delta Electronics Group, offers state-of-the-art designs made to withstand harsh industrial environments. Its rugged plastic casing has a compact body at only 32 mm, which is both shock and vibration resistant according to IEC 60068-2 standard.
  • Page 2: Specifications

    TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Specifications Input Ratings / Characteristics Nominal Input Voltage 100-240 Vac Input Voltage Range 85-264 Vac Nominal Input Frequency 50-60 Hz Input Frequency Range 47-63 Hz...
  • Page 3 TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Mechanical Case Cover / Chassis Plastic Dimensions (L x W x D) 120.6 x 32 x 113 mm (4.75 x 1.26 x 4.45 inch) Unit Weight 0.33 kg (0.73 lb)
  • Page 4: Reliability Data

    TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Reliability Data MTBF > 500,000 hrs. as per Telcordia SR-332 I/P: 115Vac, O/P: 100% load, Ta: 25°C Expected Cap Life Time 10 years (115 Vac & 230 Vac, 50% load @ 40°C)
  • Page 5 TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Emissions (CE & RE) Generic Standards: CISPR 32, KN 32, EN/BS EN 55032, CISPR 11, EN/BS EN 55011, FCC Title 47: Class B Immunity Generic Standards: EN/BS EN 55024, KN 35,...
  • Page 6: Block Diagram

    TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Block Diagram Device Description Input terminal block connector Output terminal block connector DC Voltage adjustment potentiometer DC OK control LED (Green) Universal mounting rail system All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
  • Page 7: Engineering Data

    TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Dimensions L x W x D: 120.6 x 32 x 113 mm (4.75 x 1.26 x 4.45 inch) Engineering Data Output Load De-rating VS Surrounding Air Temperature...
  • Page 8: Assembly And Installation

    TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Output Load De-rating VS Input Voltage No output power de-rating across the entire  input voltage range Assembly & Installation The power supply unit (PSU) can be mounted on 35 mm DIN rails in accordance with EN 60715. The device should be installed with input terminal block at the bottom.
  • Page 9: Safety Instructions

    TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Safety Instructions Vertical Mounting Horizontal Mounting   • ALWAYS switch mains of input power OFF before connecting and disconnecting the input voltage to the unit. If mains are not turned OFF, there is risk of explosion / severe damage.
  • Page 10 TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Functions Graph illustrating the Start-up Time, Rise Time, and Hold-up Time  Start-up Time The time required for the output voltage to reach 90% of its final steady state set value, after the input voltage is applied.
  • Page 11: Power Boost

    TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Power Boost Power Boost is the reserve power available constantly that allows reliable startup to support sudden and short spike of loads with high inrush current typically during turn on to remove the need of more expensive higher rated power supply unit.
  • Page 12 TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Overload & Overcurrent Protections (Auto-Recovery) Overvoltage Protection (Auto-Recovery) The power supply’s Overload (OLP) and Overcurrent (OCP) The power supply’s overvoltage circuit will be activated when its...
  • Page 13: Operating Mode

    TECHNICAL DATASHEET CliQ DIN Rail Power Supply 24 V 60 W 1 Phase / DRP024V060W1AZ Operating Mode Redundant Operation  In order to ensure proper redundant operation for the power supply unit (PSU), the output voltage difference between the two units must be kept at 0.45~0.50 V for 24 V supplies. Follow...
  • Page 14 2 of 3 Phase System Input Operation  Delta's CliQ can use on 2 of 3 phase system. Please refer to the following step. Step 1. The input voltage applied from Line to Neutral is below the maximum rated input. The input voltage shall be below 240Vac +10%.
  • Page 15: Authorized Representatives

    Attention Delta provides all information in the datasheets on an “AS IS” basis and does not offer any kind of warranty through the information for using the product. In the event of any discrepancy between the information in the catalog and datasheets, the datasheets shall prevail (please refer to www.DeltaPSU.com for the latest datasheets information).
