Delta CliQ II DRP048V120W1B Series Technical Data Sheet

TECHNICAL DATASHEET

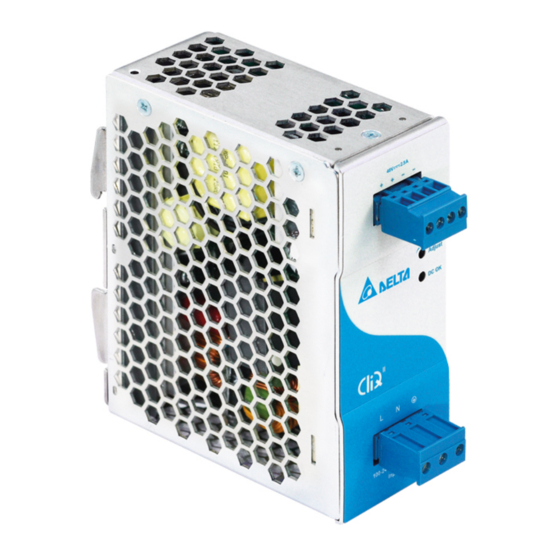

CliQ II DIN Rail Power Supply
48V 120W 1 Phase / DRP048V120W1B
General Description
The CliQ II DIN rail power supply series from one of the world's leading power supply companies, Delta Electronics Group, offers
output voltage of 48V. These products are encased in rugged yet lightweight full aluminium body that can withstand shock and vibration
according to IEC 60068-2 standard. The series of single phase products can operate over a wide temperature range of -25°C to +80°C.
These products also feature universal AC input voltage range from 85Vac to 264Vac and the power will not de-rate throughout the
entire range. Another great feature is the conformal coating on the PCBA which allows selected models to be certified to ATEX and
Class I, Div 2 for use in hazardous locations. The design conforms to harmonic current emission IEC/EN 61000-3-2, Class A.
Model Information
CliQ II DIN Rail Power Supply
Model Number
DRP048V120W1B☐
Model Numbering
DR P
DIN Rail Power Supply
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (December 2018, Rev. 04)
Input Voltage Range
85-264Vac (120-375Vdc)
048V
120W
Output Voltage Output Power
□
Highlights & Features
Universal AC input voltage
•
• Power will not de-rate for the entire input voltage range
Power Boost of 150% for 5 seconds
•
• Full corrosion resistant aluminium chassis
Conformal coating on PCBA to protect against common dust
•
and chemical pollutants
Hazardous Locations approval to ATEX and Class I, Div 2
•
(DRP048V120W1BA)
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Rated Output Voltage
48Vdc
1 B
Single Phase CliQ II Series
DRP048V120W1B☐
0.72 kg (1.59 lb)
121 x 50 x 123.1 mm
(4.76 x 1.97 x 4.85 inch)
Rated Output Current
2.50A
□
A - Metal Case,
with Class I, Div 2
N - Metal Case,
without Class I, Div 2
