TECHNICAL DATASHEET

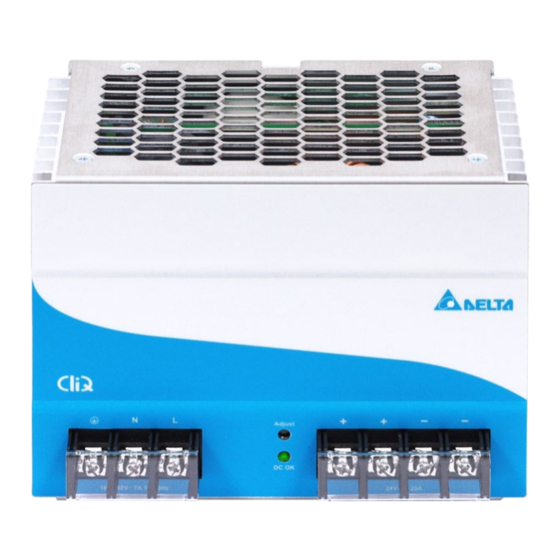

CliQ DIN Rail Power Supply
24V 480W 1 Phase / DRP024V480W1AA
General Description
The DRP024V480W1AA is part of the CliQ DIN rail power supply series from one of the world's leading power supply companies, Delta
Electronics Group. The rugged metal is both shock and vibration resistant according to IEC 60068-2 standard. The product operates
within a wide temperature range from -20°C to +80°C. The DRP024V480W1AA features universal AC input voltage range from 85Vac to
264Vac and the power will not de-rate for the entire input voltage range. The single phase power supply unit includes overvoltage,
overcurrent, over temperature and short circuit protections. The product features built-in Power Boost of 150% for 3 seconds and 200%
for 2 seconds. Such feature enables reserve power to be always available for reliable startup of loads with high inrush current, thus
eliminating the need of a more expensive power supply unit at higher power rating. Another great feature is the conformal coating on the
PCBA which allows DRP024V480W1AA to be certified to ATEX and Class I, Div 2 for use in hazardous locations.
Model Information
CliQ DIN Rail Power Supply
Model Number
DRP024V480W1AA
Model Numbering
DR P
DIN Rail Power Supply
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (November 2020, Rev. 09)
Input Voltage Range
85-264Vac (120-375Vdc)
024V 480W
Output Voltage Output Power
Highlights & Features
Universal AC input voltage range
•
• Power will not de-rate for the entire input voltage range
Power Boost of 150% for 3 seconds and 200% for 2 seconds
•
• Full corrosion resistant aluminium casing
SEMI F47 certified
•
• Conforms to harmonic current IEC/EN 61000-3-2, Class A
Conformal coating on PCBAs to protect against common
•
dust and chemical pollutants
Hazardous Locations approval to ATEX and Class I, Div 2
•
• Certified according to IEC/EN/UL 62368-1
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Rated Output Voltage
24Vdc
1 A
Single Phase CliQ Series
DRP024V480W1AA
1.80 kg (3.97 lb)
121 x 160 x 118.5 mm
(4.76 x 6.30 x 4.66 inch)
Rated Output Current
20.0A
A
Metal Case
