INSTALLATION AND OPERATION
SX TRANSISTOR CONTROL
TRACTION
STATUS CODE
Start switch closed on power up after initial
-11
key switch closure.
MEMORY RECALL
NO
SYMPTOM
Control will not operate.
Circuits valid
for
POSSIBLE CAUSE
Start switch is mis-adjusted or defective.
Traction
Controller
Short circuit between battery negative and P3 in
start switch input circuit.
Defective control.
TRACTION
STATUS CODE
Rolling Radius or Gear Ratio or Top Speed
-14
parameters are out of limits for the motor.
MEMORY RECALL
NO
SYMPTOM
Control will not operate.
Circuits valid
for
POSSIBLE CAUSE
Traction
Functions 13 , 16 or 21 is programmed to
Controller
an incorrect value.
Reprogram the above functions to the
proper value and the status code should
clear.
DESCRIPTION OF STATUS
CORRECTIVE ACTIONS
Input voltage at P3 should be greater than 2.5
volts at key switch closure. Adjust or replace
accelerator unit to insure that the voltage at
P3 greater than 2.5 volts before closing the
start switch.
Disconnect wire from P3. Check for short
circuit from this wire to battery negative.
Resistance should be greater than 20K ohms.
Disconnect wire from P3. Measure voltage
from P3 to negative. Voltage should be 2.5 to
5.0 volts. If not, replace the control.
DESCRIPTION OF STATUS
CORRECTIVE ACTIONS
CAUSE OF STATUS INDICATION
This status code will be displayed when P3 is
less than 2.5 volts when the key switch is
closed.

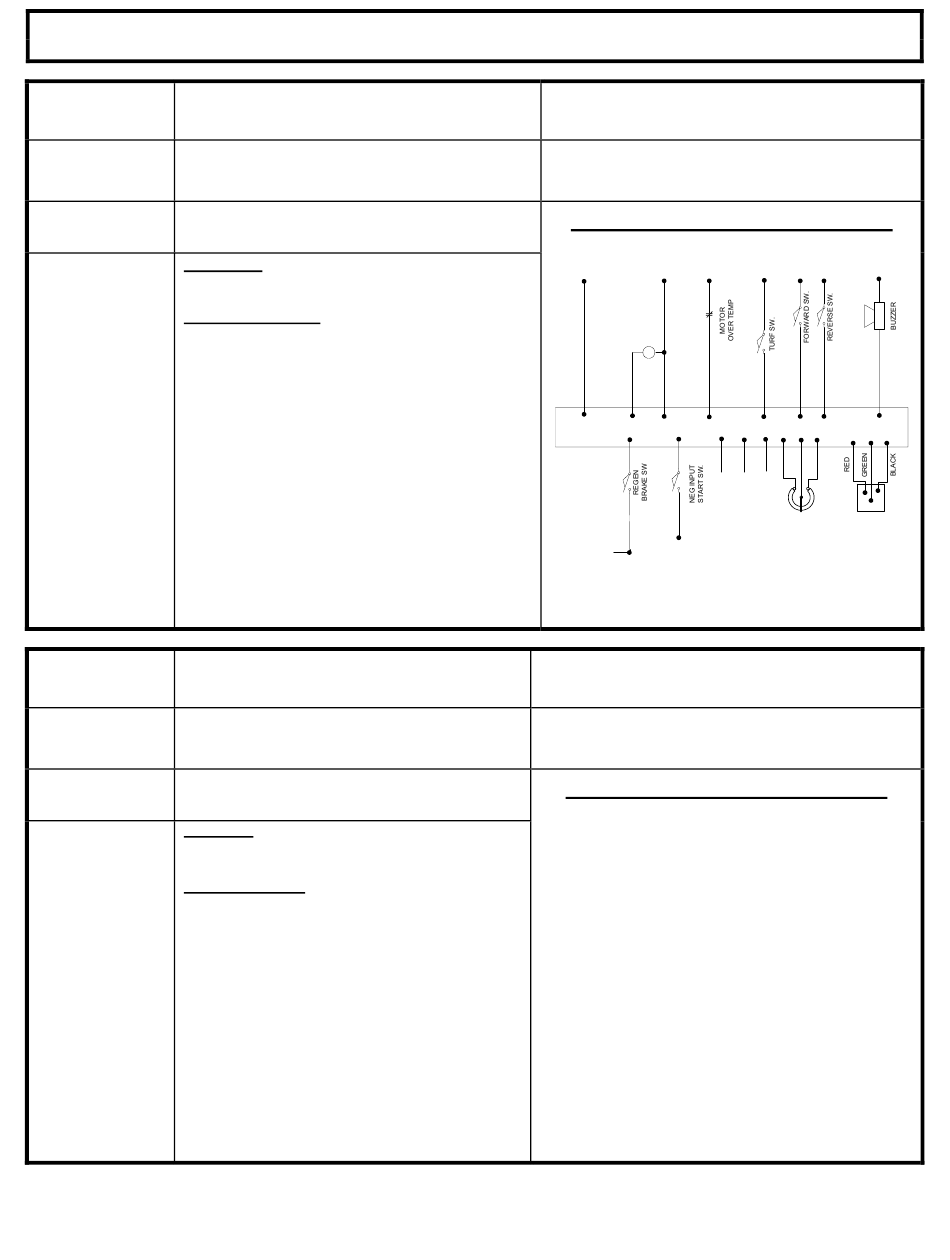

TROUBLE-SHOOTING DIAGRAM
+72V
+72V
+72V
L
P1
P17
P2
P21
P3
P12
P22
+72V
72V
NEG
CAUSE OF STATUS INDICATION
This status code will be displayed when the
Rolling Radius or Gear Ratio or Top Speed
perimeters are out of limits for the motor.
TROUBLE-SHOOTING DIAGRAM
NO GRAPHIC FOR THIS
STATUS CODE
Page 18
+72V
+72V
+72V +72V
P6
P4
P5
P10
P9 P7
P8
P15 P14 P16
P23
P20
RS232
ACC POT
TACHOMETER
Updated Sept 2019
