All Restoration Hardware cribs are designed to meet the highest safety
standards and comply with all U.S. and Canadian cribs and cradles regulations.
Made in Vietnam
Distributed in the U.S.A by:
Restoration Hardware Baby & Child
11640 Harrel St. Suite B
Mira Loma, CA 91752
www.rhbabyandchild.com
Distributed in Canada by:
Restoration Hardware Canada, Inc.
1500-1055 West Georgia Street
Vancouver, British Columbia V6E4N7
WARNING: Read all
Instructions before assembling
this product.
KEEP INSTRUCTIONS FOR
FUTURE USE.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact us first. You can also order parts by writing to
the address above. Include the product model number, color, and a brief description of the part. Call 1-800-762-1751.
CARE AND CLEANING
DO NOT scratch or chip the finish. DO NOT use abrasive chemicals for cleaning. If the crib is to be stored, store in a cool
dry place and carefully package all original hardware to protect from loss.
TOOLS AND INSTALLATION
Tools Necessary: Allen Key (included).
NOTE: It may be easier to assemble product with two people.
NOTE: When inserting bolts, turn clockwise until tight. Then loosen 1/2-3/4 of a turn. After crib is completely assembled,
return to each bolt and tighten.
All manuals and user guides at all-guides.com
Page 1 of 13
Model No: H0039-5/ 6

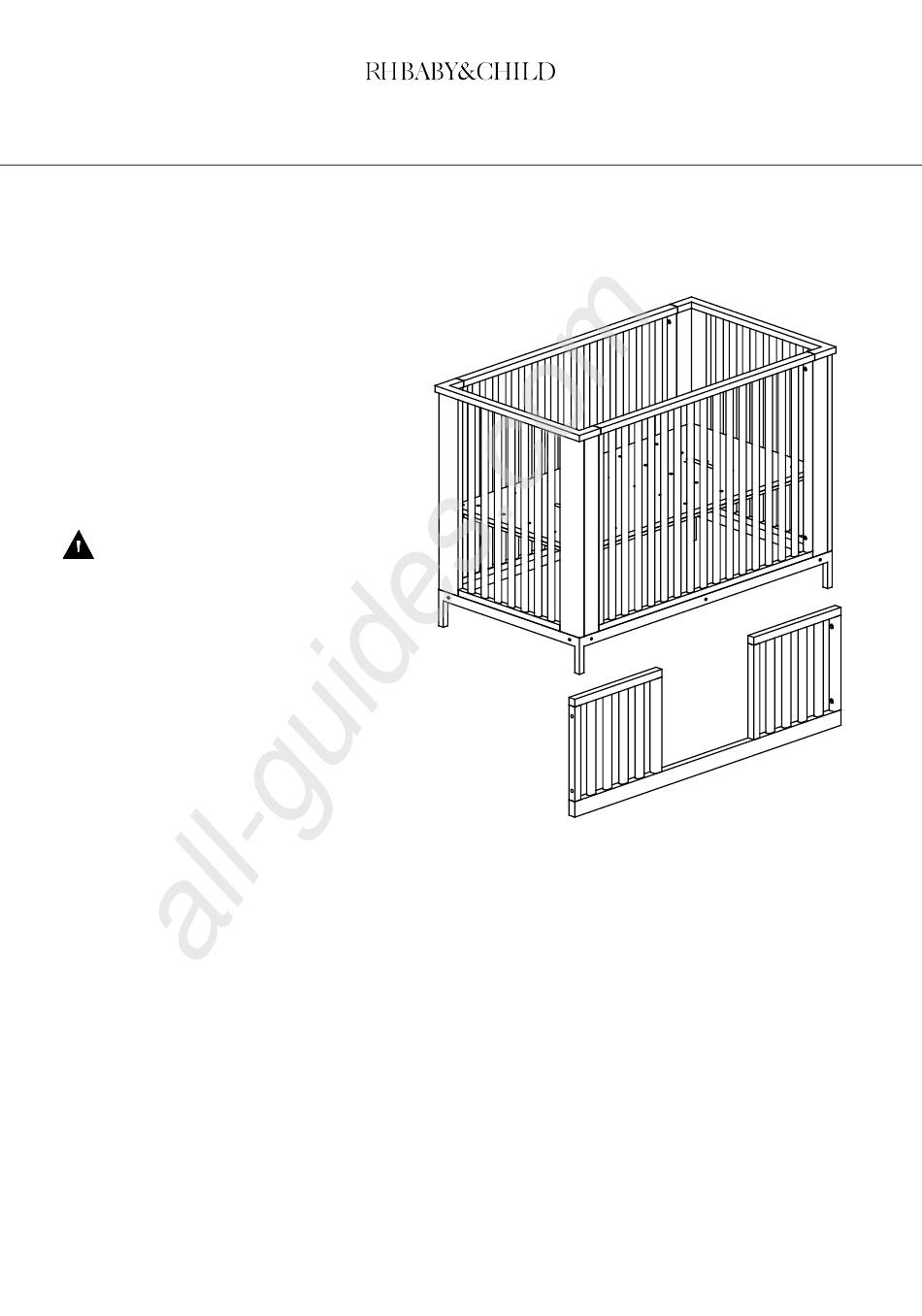

ARLO PANEL CRIB
ARLO PANEL TODDLER KIT
TODDLER KIT ( SOLD SEPARATELY)
Advertisement
Related Manuals for RH Baby&child ARLO PANEL H0039-5
Summary of Contents for RH Baby&child ARLO PANEL H0039-5
- Page 1 All manuals and user guides at all-guides.com All Restoration Hardware cribs are designed to meet the highest safety standards and comply with all U.S. and Canadian cribs and cradles regulations. Made in Vietnam Model No: H0039-5/ 6 ARLO PANEL CRIB ARLO PANEL TODDLER KIT Distributed in the U.S.A by: Restoration Hardware Baby &...
- Page 2 All manuals and user guides at all-guides.com IMPORTANT SAFETY INFORMATION FOR CRIBS WARNING: Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death.
- Page 3 All manuals and user guides at all-guides.com IMPORTANT SAFETY INFORMATION FOR CRIBS CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES WITH A THICKNESS NOT EXCEEDING 6 INCHES. WARNING: Do not use this crib if the enclosed or attached instructions cannot be strictly adhered to.
- Page 4 All manuals and user guides at all-guides.com IMPORTANT SAFETY INFORMATION FOR TODDLER & DAY BEDS WARNING : ENTRAPMENT/ STRANGULATION HAZARD Infants have died in toddler beds from entrapment and strangulation. Failure to follow these warnings and the assembly instructions could result in serious injury or death.
-
Page 5: Parts Included
All manuals and user guides at all-guides.com ARLO PANEL CRIB ASSEMBLY INSTRUCTIONS PARTS INCLUDED: HEADBOARD/ FOOTBOARD STATIONARY SIDE RAIL MATTRESS SUPPORT METAL LEG FRAME HARDWARE INCLUDED: ITEM DESCRIPTION QTY. Short Bolts 5/16” x 1-3/4” 8 pcs. Long Bolts 1/4” x 2-1/4” 14 pcs. - Page 6 All manuals and user guides at all-guides.com ARLO PANEL CRIB ASSEMBLY INSTRUCTIONS STEP 1 : Attach the Stationary Side Rail (B) to the Headboard/ Footboard (A) with Short Bolt (1), Spring Washer (3), and tighten using Allen Key (6). DO NOT FULLY TIGHTEN AT THIS TIME. STEP 2 : Insert L Pin (5) into the holes on the Headboard/ Footboard (A).
- Page 7 All manuals and user guides at all-guides.com ARLO PANEL CRIB ASSEMBLY INSTRUCTIONS STEP 3: Position the Masstres support (C) between the Headboard/ Footboard (A). Then align L Pin (5) into the pre-drilled holes of the Mattress Support (C). Bottom STEP 4: Attach the Mattress Support (C) with Insert Head (4), L Pin (5), and tighten by using Allen Key (6).
- Page 8 All manuals and user guides at all-guides.com ARLO PANEL CRIB ASSEMBLY INSTRUCTIONS STEP 5: Position the Stationary Side rail (B) between the Headboard/ Footboard (A) and align the holes. STEP 6: Attach the Stationary Side Rail (B) to the Headboard/ Footboard (A) with Short Bolt (1), Spring Washer (3), and tighten using Allen Key (6).
- Page 9 All manuals and user guides at all-guides.com ARLO PANEL CRIB ASSEMBLY INSTRUCTIONS STEP 7: Position the Crib assembly onto the Metal Leg Frame (D) and align the holes. STEP 8: Attach the Metal Leg Frame (D) to the crib assembly with Long Bolt (2), and tighten using Allen Key (6).
- Page 10 All manuals and user guides at all-guides.com ARLO PANEL TODDLER KIT ASSEMBLY INSTRUCTIONS PARTS INCLUDED: E [1] TODDLER RAIL HARDWARE INCLUDED: ITEM DESCRIPTION QTY. Short Bolts 5/16” x 1-3/4” 4 pcs. Long Bolts 1/4” x 2-1/4” 2 pcs. Spring Washer 5/16” 4 pcs.
- Page 11 All manuals and user guides at all-guides.com ARLO PANEL TODDLER KIT ASSEMBLY INSTRUCTIONS STEP 9: Carefully unscrewing and removing the (2pcs) long bolts from the bottom of the Metal Leg frame (D), and (4pcs) short bolts with spring washer on left /right sides of the Stationary Side Rail (B) using Allen Key (11).
- Page 12 All manuals and user guides at all-guides.com ARLO PANEL TODDLER KIT ASSEMBLY INSTRUCTIONS STEP 11 : If mattress support is not in the lowest position, loosen all tightened bolts from side frames. Spread front of crib open enough to remove mattress support (C), and move it to the lowest position.
- Page 13 All manuals and user guides at all-guides.com ARLO PANEL TODDLER KIT ASSEMBLY INSTRUCTIONS STEP 13: Attach the Metal Leg Frame (D) to the Toddler Rail (E) with Long Bolt (8), and tighten using Allen Key (11). STEP 14: When converting the crib to toddler bed, the Small Bolt (10), and Spring Washer (9) should be inserted in the upper holes of the Side Frame (A) and tighten with the Allen Key (11).
