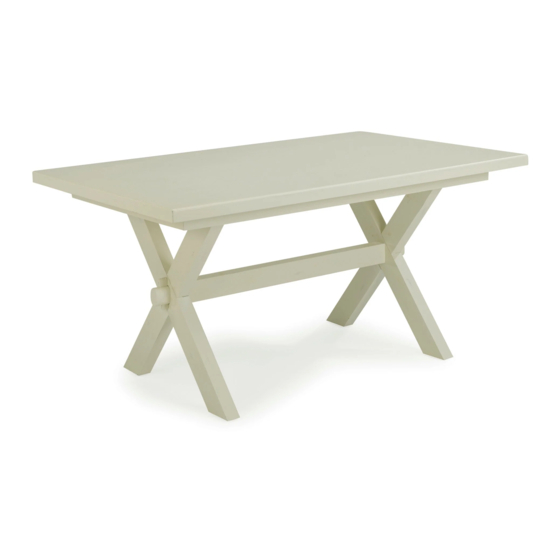

Dining table

Advertisement

Quick Links

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

Part List

A.
Top
1 pc.
B.
Leg
4 pcs.

Hardware List

Hex Wrench
1 pc.
Tool(s) required for assembly: Slotted screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5523 31
Dining Table
Small
M6x18
Head Cap Bolt
Hex Wrench
24 pcs. (+1 extra)
1 pc.
C.
Stretcher
1 pc.
Spring Washer
Flat Washer
24 pcs. (+1 extra)
24 pcs. (+1 extra)
888-680-7460, 877-831-0319
D.
Wood Stick
2 pcs.
Steel Plate
4 pcs.
