88 5527 100
Homestead
Compact TV
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

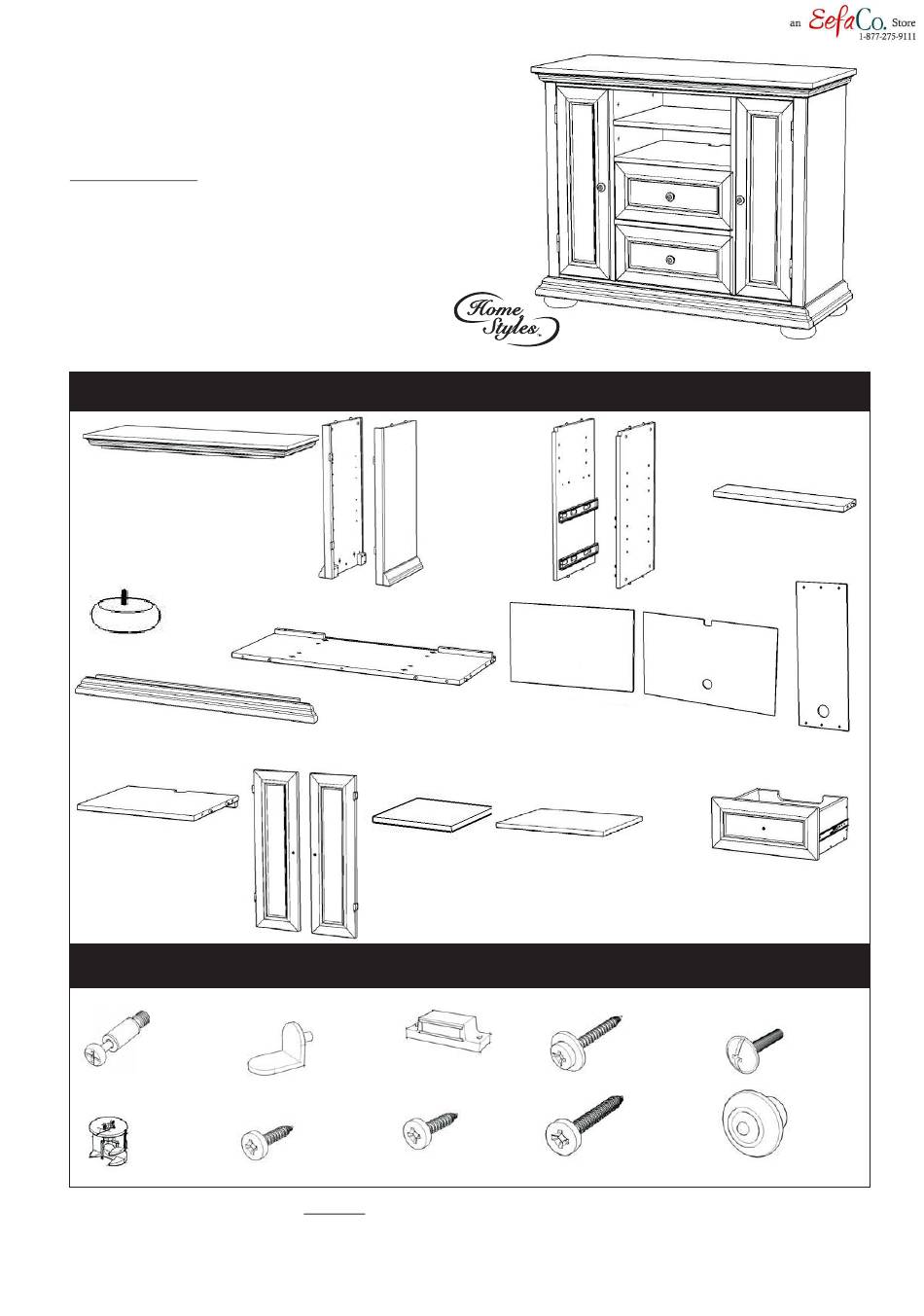

Part List
A.
Top
1 pc.
G.
Leg
4 pcs.
H.
Plinth
1 pc.
M.
N.
Fixed Shelf
Door
1 pc.
1 pc.
Hardware List
Cam Lock Screw
25 pcs.(+2 extra)
Cam Lock
25 pcs.(+2 extra)
Tools required for assembly : Phillips screwdriver
Credenza
B.
Side Panel
1 pc
.
I.
Base
1 pc.
O.
Door
1 pc.
Adjustable Pin
20 pcs.(+1 extra)
Wood Screw
for Drawer hinge
12 pcs.(+1 extra)
Casual Attire For Today's Home
D.
Middle Panel
1 pc
.
C.
Side Panel
1 pc.
J.
Back Panel
1 pc.
P.
Q
Shelf
Shelf
4 pcs.
1 pc.
Magnet
2 pcs.
Wood Screw
for Magnet
4 pcs.(+1 extra)
E.
Middle Panel
1 pc
.
F.
Front Rail
1 pc.
K.
L.
Back Panel
Back Panel
1 pc.
2 pcs.
R.
Drawer
2 pcs.
(Knock-Down Construction, please refer
to the last page of these instructions for
steps to assemble drawers)
Wood Screw
for Back Panel
Machine Screw
12 pcs.(+1 extra)
4 pcs.
Wood Screw
for Drawer
Pull Handle
26 pcs.(+1 extra)
4 pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5527 100
Summary of Contents for Home Styles 88 5527 100
- Page 1 88 5527 100 Homestead Compact TV Credenza IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this...
- Page 2 Assembly Instructions 2/5 Wood Screw Magnet Cam Lock Screw STEP 1 Attach 2X Magnets to Figure 1 Top (A) by using Wood Screws in the pre-drilled holes (see Figure 1). Insert Cam Lock Screws into the pre-drilled holes of Top (A), Side Panel (B) and (C), Middle Panels (D), (E), Base (I) and Plinth (H).
- Page 3 Assembly Instructions 3/5 STEP 3 Attach Side Panels (B) and (C) to unit with Cam Locks. Attach Plinth (H) to unit with Cam Locks. Attach 4X legs (G) to unit and tighten. Figure 3 Figure 4 STEP 4 Slide Back Panels (L), (J) and (K) into position.
- Page 4 Assembly Instructions 4/5 Adjustable Pin Figure 5 STEP 6 Insert Adjustable Pins into side panels and middle panels at the desired level. (See figure 5) Place Shelves (P), (Q) and Drawer (R) into position. Figure 6 STEP 7 Insert 12X Wood Screws from the back of the unit, tighten up all the Wood Screws.
- Page 5 Assembly Instructions 5/5 Drawer (R) STEP 1 Attach R2 to R5, using a Phillips screwdriver long wood screws (4X) , tighten halfway. (see Figure 1) Figure 1 STEP 2 Attach R3 and R4 to the unit with long wood screws (10X), tighten halfway.
