88 5527 08
Homestead
Media Cabinet
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

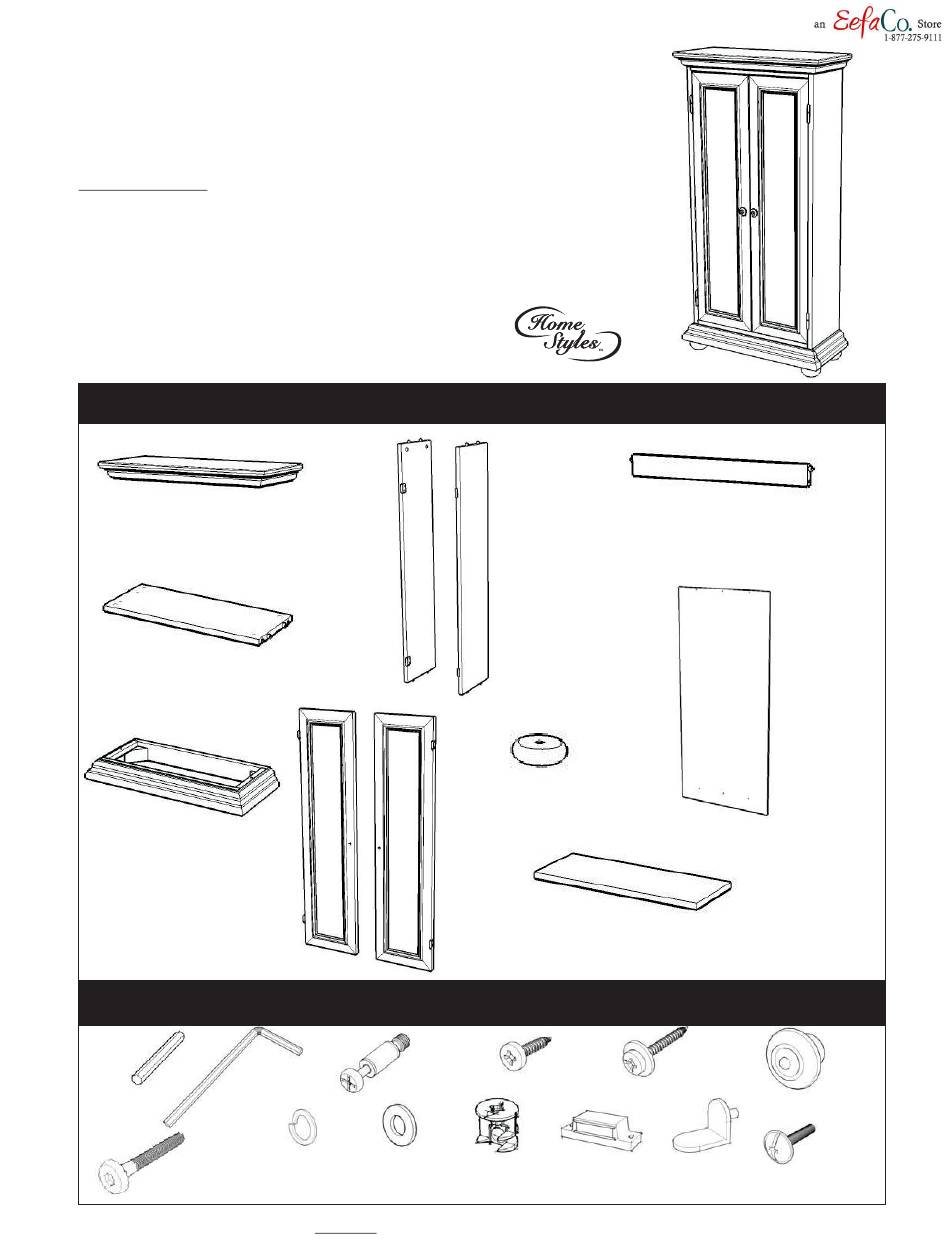

Part List
A.
Top
1 pc.
E.
Base
1 pc.
F.
Plinth
1 pc.
Door
1 pc.
Hardware List
Small
Hex Wrench
Hex Wrench
1 pc.
1 pc.
Head Cap Bolt
6 pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver
B.
Side Panel
1 pc
.
I.
Cam Lock Screw
10 pcs.(+1 extra)
Spring Washer
Flat Washer
4 pcs. (+1 extra )
4 pcs. (+1 extra )
Casual Attire For Today's Home
C.
Side Panel
1 pc.
G.
Leg
4 pcs.
J.
Door
1 pc.
Wood Screw
for Magnet
8 pcs.(+1 extra)
Cam Lock
Magnet
10 pcs.(+1 extra)
4 pcs.
D.
Front Rail
1 pc
.
H.
Back Panel
1 pc.
K.
Shelf
4 pcs.
Wood Screw
for Back Panel
6 pcs.(+1 extra)
Pull Handle
2 pcs.
Adjustable Pin
Machine Screw
16 pcs.(+1 extra)
2 pcs.(+1 extra)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5527 08
Summary of Contents for Home Styles 88 5527 08
- Page 1 88 5527 08 Homestead Media Cabinet IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this...
- Page 2 Assembly Instructions 2/4 IMPORTANT Wood Screw Do not tighten up all the screws until each part is properly assembled. Magnet STEP 1 Attach 2X Magnets to Front Rail (D) with Wood Screws. Insert Cam Lock Screws into the pre-drilled holes of Top (A), Side Panel (B) and (C) Cam Lock Screw...
- Page 3 Assembly Instructions 3/4 Figure 1 STEP 2 Attach Front Rail (D) and Base (E) to Side Panel (B) with Cam Locks (see Figure 1). Attach Side Panel (C) to the unit with Cam Locks. Cam Lock Cam Lock Screw Head Cap Bolt Flat Washer Spring Washer Head Cap Bolt...
- Page 4 Assembly Instructions 4/4 Cam Lock Figure 2 Figure 3 Adjustable Pin Figure 4 Figure 5 STEP 4 Place Top (A) onto the unit, using Cam Locks. Attach Doors (I) and (J) by sliding the door lift hinges into the side panel lift hinges. (See figure 2) Magnet Assemble Pull Handles to Doors (I) and (J)
