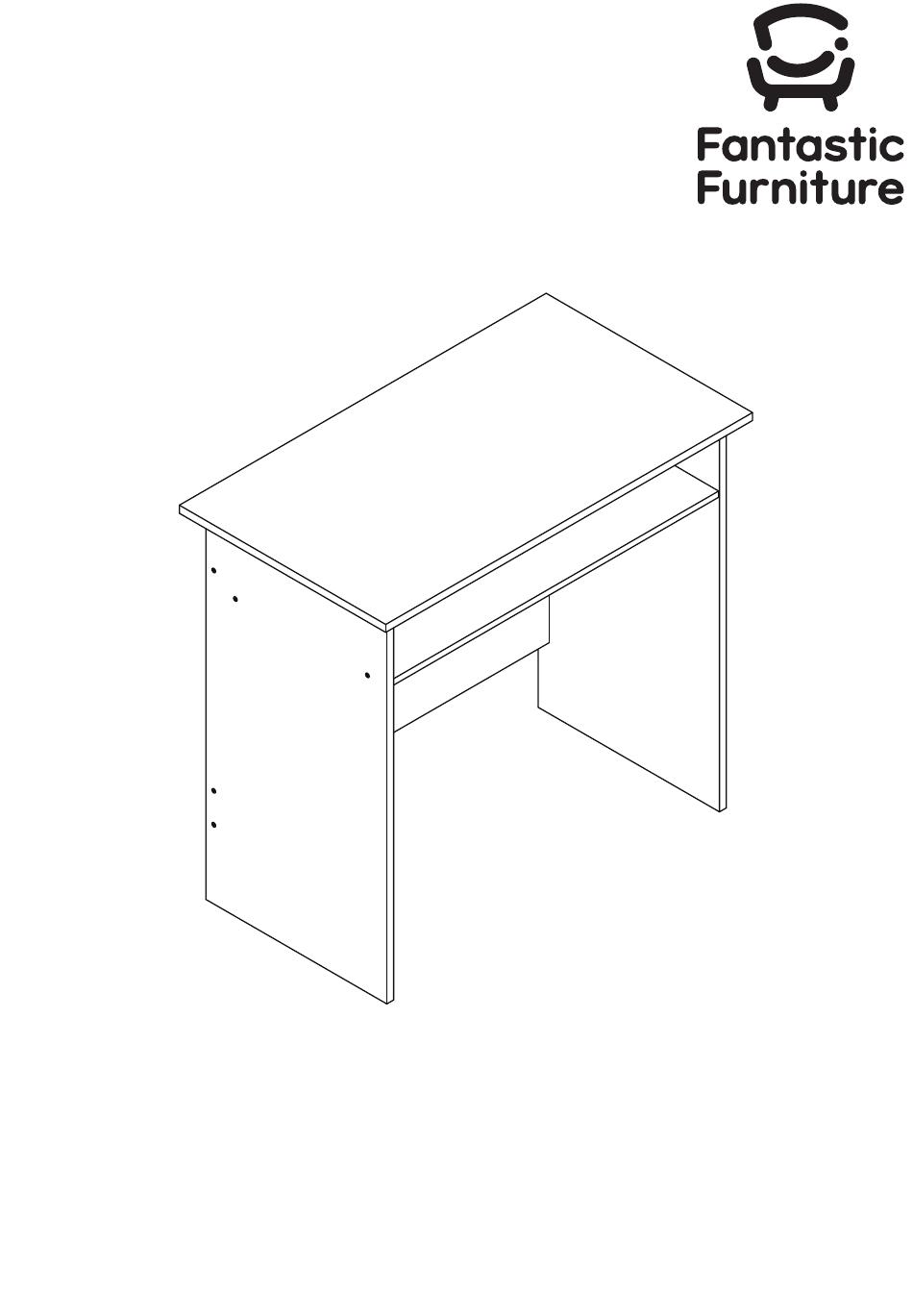

  • Page 1 Version 1.1 Buzz Student Desk fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...

  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.

  • Page 4: What You Need

    What you need to assemble the product Top Panel (P3) Other tools you need: Phillips head screwdriver; Flat blade screwdriver Soft headed mallet Back Panel (P4) Shelf Panel (P6) Side Panel R (P2) Side Panel L Back Support (P1) (P5) Parts list Side Panel Left (P1);...
  • Page 5 Step 1 You will need 15 x Wood Soft Headed Dowels (H1) Mallet DETAIL A DETAIL A (P1) (P2) (H1) (P4) (P5) (P6) Insert 15 x Wood Dowels (H1) into panels (P1, P2, P4, P5 & P6) by gently pushing them in or tapping with a soft headed mallet.
  • Page 6 Step 3 You will need DETAIL A 4 x Cam Bolts (H3) (P3) (H3) DETAIL A Using a phillips head screwdriver, screw 4 x Cam Bolts (H3) into the Top Panel (P3) until tight. Step 4 You will need (P6) White Edging (P4) Phillips Head...
  • Page 7 Step 5 You will need (H2) 4 x Leg Studs Phillips Head Soft Headed 5 x Screws (H5) Screwdriver Mallet (H2) (P2) (P6) (P1) (P5) (H5) DETAIL A DETAIL A Fix the Side Panel R (P2) to unit by aligning dowels to matching holes and slot in. Fasten using 5 x Screws (H2) using a phillips head screwdriver.

  • Page 8: Job Complete

    Step 7 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 8...
  • Page 9 Mini Me Chair fantasticfurniture.com.au...
  • Page 10 Page 2 fantasticfurniture.com.au...
  • Page 11 Assembly checklist Make sure you have all the required tools. Read through the instructions carefully Never use power tools unless instructed. before you begin. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.
  • Page 12 What you need to assemble the product Seat (P1) Seat Plate (P2) Gas Lift (P3) Parts list Seat (P1) Decoration Cap (P4) Seat Plate (P2) Gas Lift (P3) Decoration Cap (P4) Star Base (P5) Star Base (P5) 5 x Castors (6) 5 x Castors (6) Hardware pack 4 x Bolts...
  • Page 13 Step 1 Insert 5 x castors into the star base (P5) one at a time as shown. Push down firmly on each castor to ensure they are fixed into position. Step 2 Note: Make sure to remove the plastic cap from the top of gas lift. Gas lift (P3) Decoration Cap (P4) Star Base (P5)
  • Page 14 Step 3 Allen Key You will need Bolt (H2) (H1) Seat Plate (P2) Allen Key 4 x Bolts (H2) (H1) Seat (P1) Align the holes of the seat plate (P2) to the holes of the underside of the seat (P1). Attach the seat plate (P2) to the underside of the seat (P1) with 4 x bolts (H1) using an allen key (H2).
  • Page 15 Step 5 Job Complete ! In the interest of our environment please dispose of all packaging thoughtfully. Page 7 fantasticfurniture.com.au...
  • Page 16 Version 1.1 Buzz Utility 5 Shelf fantasticfurniture.com.au...
  • Page 17 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...
  • Page 18 Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.
  • Page 19 What you need to assemble the product Other tools you need: Top Panel (P3) Phillips head screwdriver; Soft headed mallet Side Panel R Back Panel (P2) (P5) Shelf Panel (P6) Parts list Shelf Panel Side Panel L (P6) (P1) Side Panel Left (P1); Side Panel Right (P2);...
  • Page 20 Step 1 You will need 2 x Long Phillips Phillips Head Screws Screwdriver (H1) (H1) White (P4) Edging (P6) Align the holes in Shelf Panel (P6) to holes in the Centre Panel (P4). Attach the Shelf Panel (P6) to the Centre Panel (P4) with 2 x Long Phillips Screws (H1). Tighten with a phillips head screwdriver.
  • Page 21 Step 3 You will need 2 x Long Phillips Head Phillips Screws Screwdriver (H1) White Edging (P4) (P3) (H1) Attach the Bottom Panel (P3) to the Centre Panel (P4) with 2 x Long Phillips Screws (H1). Tighten with a phillips head screwdriver. Step 4 White Edging (H1)
  • Page 22 Step 5 Laminated Side (P3) (P5) (P4) (P6) (P3) Slide 1 x Back Panel (P5) into grooves of Top Panel (P3), Centre Panel (P4) and Bottom Panel (P3). Step 6 (H1) You will need White Edging (P1) 6 x Long (P3) Phillips Head Phillips Screws...
  • Page 23 Step 7 Ensure that for either Back Panel (P5) the warning label on the back will be at the top of the unit. Laminated Side (P3) (P5) (P6) (P6) (P3) Slide 1 x Back Panel (P5) into grooves of Top Panel (P3), Centre Panel (P4) and Bottom Panel (P3).
  • Page 24 Step 9 You will need (P3) 1 x Flat 1 x Pan 1 x Wall Strap Phillips Head Washer Head Screw (H2) Screwdriver (H4) (H3) (P5) (P5) (H3) (P3) (H4) (H2) 30MM (P5) (P5) Attach the Wall Strap (H2) to the unit using the Flat Washer (H4) and Pan Head Screw (H3) with a phillips head screwdriver.
  • Page 25 Step 11 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 10...
  • Page 26 Version 1.1 Buzz Utility 3 Shelf fantasticfurniture.com.au...
  • Page 27 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...
  • Page 28 Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.
  • Page 29 What you need to assemble the product Shelf Panel 1 (P2) Other tools you need: Phillips head screwdriver; Back Panel Soft headed mallet (P4) Shelf Panel 2 (P3) Back Panel Side Panel Side Panel (P1) (P4) (P1) Shelf Panel 2 (P3) Parts list 2 x Side Panels (P1);...
  • Page 30 Step 1 You will need Phillips Head 8 x Long Screws Screwdriver (H1) (P2) White Edging (P3) (P3) (P1) (P2) (H1) Attach 2 x Shelf Panel 1 (P2) and 2 x Shelf Panel 2 (P3) to the Side Panel (P1) with 8 x Long Screws (H1) and tighten with a phillips head screwdriver.
  • Page 31 Step 3 You will need (H1) 8 x Long Phillips Head Screws (H1) Screwdriver (P1) White Edging (P4) (P4) (P4) (P3) (P2) (P3) (P2) (P1) Fix the Side Panel (P1) to Shelf Panels (P2 & P3) with 8 x Long Screws (H1) and tighten with a phillips head screwdriver.
  • Page 32 Step 5 (P2) Wall (P2) Move the furniture to its final position, then connect the end of the Wall Strap (H5) to the wall, ensuring it is firmly attached. Seek advice from a qualified trades person on how to attach this to your specific wall. Screws and wall plugs are not supplied.
