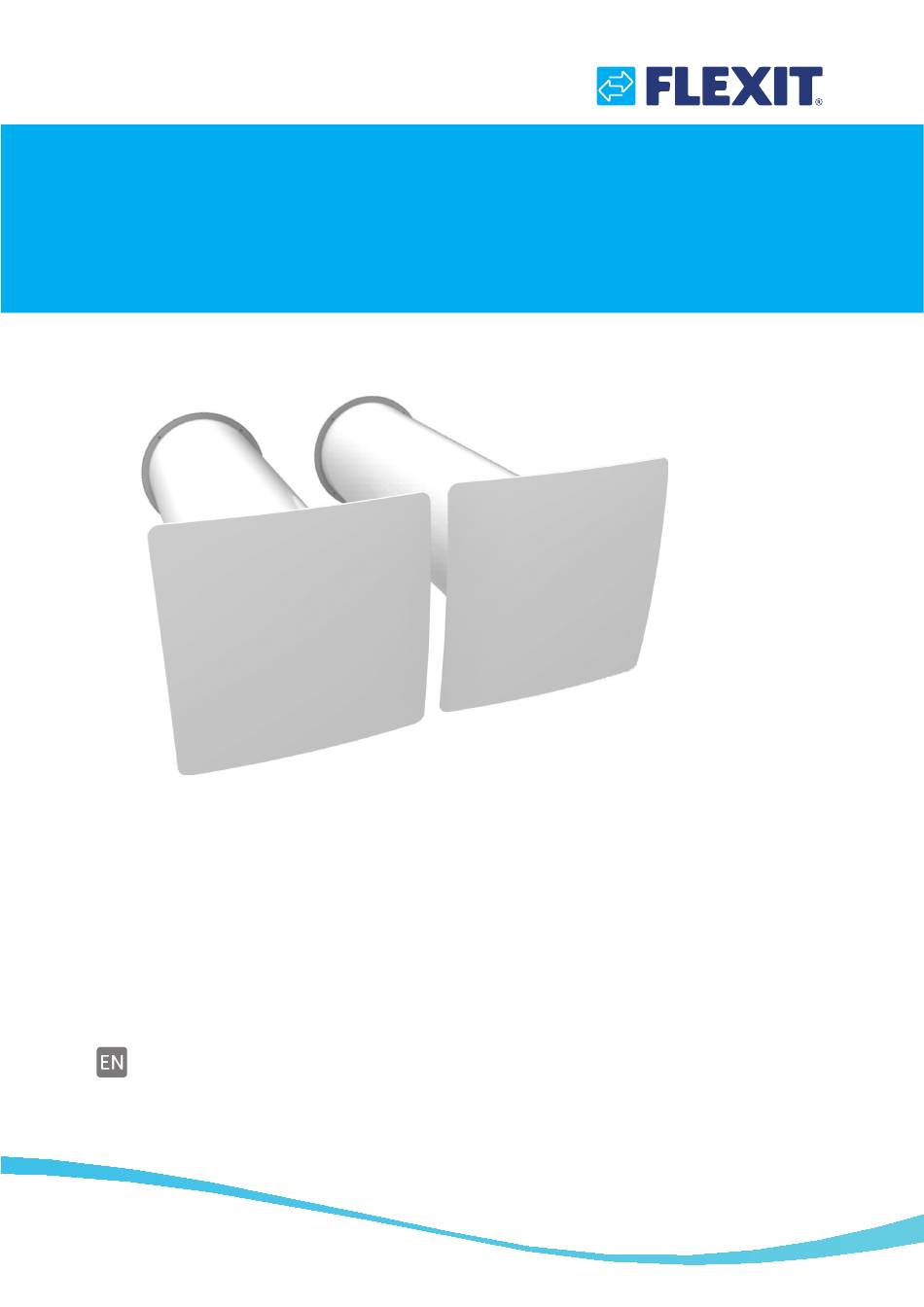

- Page 1 116026EN-05 2021-09 Eq 2 ART. NO.: 116001 Assembly and Operation Instructions Heat recovery single-room reversible ventilation unit...
- Page 2 EQ 2...
-
Page 3: Table Of Contents
Mounting and set-up ............................. 5.1. Wall-mounted control panel installation and connection ....5.2. Unit mounting ..............................Connection to power mains and control ................Technical maintance ............................... Troubleshooting ................................Storage and transportation regulations ................... CE Declaration of conformity ........................EQ 2... - Page 4 EQ 2 SAFETY REQUIREMENTS • Read the user’s manual carefully prior to • Transported air must not contain any installing and operating the unit. dust or other solid impurities, sticky • All user’s manual requirements as well as the provisions of all the applicable local •...
- Page 5 Notice of lack of conformity as a result of incorrect or defective installation must be submitted to the installation company responsible. The right to give notice of lack of conformity may lapse if the system is used incorrectly or maintenance is grossly neglected. EQ 2...
-
Page 6: Purpose
Technical data The unit is designed for indoor use. The units is constantly being improved, so some models can slightly Eq 2 (2 units) Speed **Variations in temperature and humidity may lead to freezing at higher... - Page 7 The sensor panel contains touch buttons for unit control and an emergency indicator. the package. Unit voltage [V /50-60 Hz] 110-230 from +10 up to +45 Humidity range [%] 10 - 80 (no condensation) Service life, switching opera- 100 000 tions Ingress protection IP30 Weight [g] EQ 2...
-
Page 8: Product Description

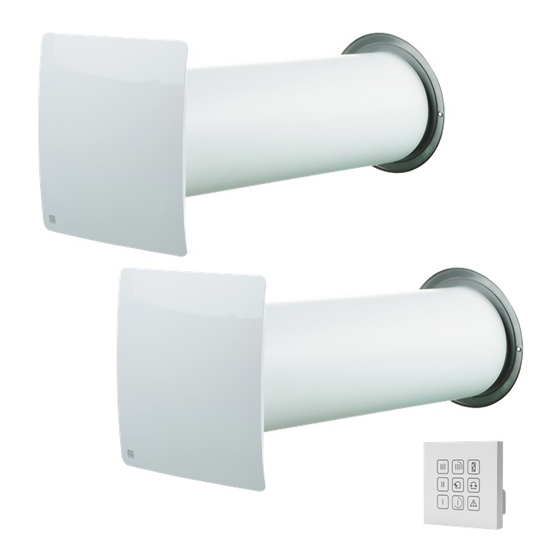

EQ 2 Product description The unit consists of a protecting internal grille with a of dust and foreign objects into the regenerator and the decorative panel, a cartridge, an air duct and a protect- fan. ing external ventilation grille or a hood. - Page 9 In this operation mode, in case if two units are installed each of them operates two cycles in opposite phases. While one unit operates in air supply mode the other one operates in air extract mode. Example: 68 F 68 F EQ 2...
-
Page 10: Mounting And Set-Up
EQ 2 Mounting and set-up 5.1. WALL-MOUNTED CONTROL PANEL INSTALLATION AND CONNECTION Installation and connection of control Do not install the control panel on an panel shall only be performed by uneven surface! professional electrician. Make sure that the control panel is While tightening the screws, do not not damaged. - Page 11 Then connect the cable to the control panel in compliance with the wiring diagram, page 16. 4. Install the control panel display and press it to EQ 2...
-
Page 12: Unit Mounting
EQ 2 5.2. UNIT MOUNTING Read the user’s manual prior to mounting the unit. Do not block the air duct of the installed unit with dust accumulating materials, such as curtains, cloth shutters, etc. As it prevents air circulation in the room. - Page 13 (accessories) Mark the sound-absorbing layer at the end of the air duct (1). Cut the excessive part of the sound- absorbing layer. Insert the adjusted and ready sound-absorbing layer into the air duct. EQ 2...
- Page 14 EQ 2 4. Insert the air duct in the wall. Fill the gaps between the wall Install the air duct with the sound-absorbing layer and the opening with a mounting with minimum slope 3° downwards using foam or similar polystyrene wedges.
- Page 15 Connect the socket con- nectors of the cartridge and the control panel. External grille Internal grille with a decorative panel For mounting of the outer ventilation hood, please refer to a respective hood installation instruction. EQ 2...
-
Page 16: Connection To Power Mains And Control
EQ 2 Connection to power mains and control Disconnect the unit from power supply prior to any electric installation operations. The following installation shall only be performed by a professional electrician according the instruction in the user manual. The rated electrical parameters are stated on the rating plate. - Page 17 The control panel displays the following parameters: • current unit speed • current operation mode of the unit • • • emergency shutdown of the unit in case of a motor failure the non-volatile memory of the control panel. EQ 2...
- Page 18 EQ 2 Unit control with a sensor control panel contamination indicator starts glowing. In this Timer Speed III 4 hours hours: press and hold the FILTER indicator. Speed III REGENERATION Speed II VENTILATION Speed I The ALARM indicator glows in case of Timer which the unit stops.
-
Page 19: Technical Maintance
Disconnect the socket connectors. Push the cable from the control panel aside to the wall and pull the cord from the cartridge to remove it from the air EQ 2... - Page 20 EQ 2 Clean th less than once in three months. • After expiry of the peri indicator appears on the control panel display. • • Vacuum cleaning is allowed. • • Even regular technical maintenance may not com- pletely prevent dirt accumulation on the regenerator and the fan.
-
Page 21: Troubleshooting
The unit can be carried in the original packing by any mode of transport provided proper protection against 2 hours. precipitation and mechanical damage. EQ 2... -
Page 22: Ce Declaration Of Conformity
EQ 2 10. CE Declaration of conformity Compliance with valid versions of the following standards on the date on which the declaration of con- requirements in the following Council Directives and formity was signed: standards: Safety standard: EN 60335-1 2014/30/EC Electromagnetic compatibility (EMC) - Page 23 EQ 2...
- Page 24 Flexit AS, Televeien 15, N-1870 Ørje...
