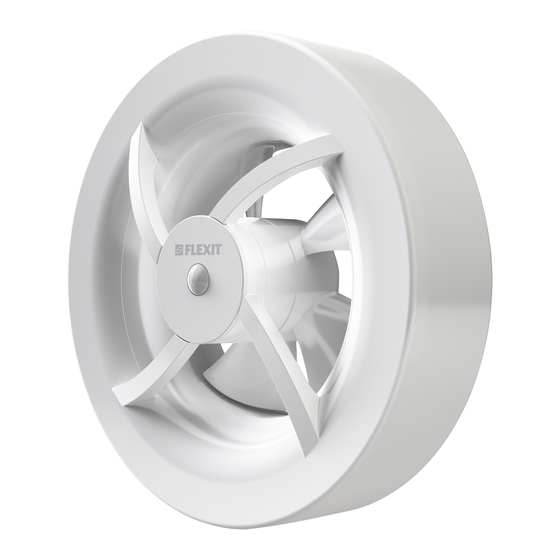

- Page 1 Pro7 115461EN-01 2016-02 Bathroom fan and Heat mover Operating and installation instructions Type: K7...
-
Page 2: Fan Parts
Children must not be allowed to play with the device. Cleaning and maintenance must not be carried out by unsupervised children. The package contains of: 1 pc Pro7 bathroom fan 3 pcs Screws for fixing the wall frame to the wall or ceiling 1 pc... -
Page 3: Supply Air
Thank you for choosing a quality product from Flexit! We hope you will be fully satisfied with your new Pro7 fan for many years to come. For your safety, every product has been individually function-tested before leaving our production facility. -
Page 4: Installation
Installation 1. Preparations The motor unit has a unique bayonet connection for ease of removal and replacement in case of installation, change of function and cleaning. a) Lift the motor unit out of the wall frame. Lightly grasp the spokes and turn anti-clockwise. - Page 5 3. Mounting the wall frame The fan is mounted on the surface on walls or in ceilings. Suitable for Ø100 mm duct, but Ø125 mm can also be used. a) The cable bushing is situated in the top part of the wall frame. Electrical connection can either be performed from the rear (concealed) or from the top (external), see also fig.
-
Page 6: Electrical Connection
4. All-pole switch According to standard EN 60335-1, it must be possible to disconnect the fan from the mains supply. This requirement is fulfilled with the integral all-pole switch (2-pole, 3 mm contact gap). 5. Electrical connection NB! May only be carried out by qualified electrician. During any electrical work on the fan, the voltage supply must be disconnected. - Page 7 6. Reassemble cover and motor unit a) Reassemble the cover on the wall frame (three screws). Be sure that the two 12V pins are in the correct position (rating plate downwards, arrow upwards) b) Reassemble and lock the motor unit in the wall frame by turning it clockwise.
-
Page 8: Function Description
Function description Continuous basic ventilation (basic airflow) The fan operates at a constant low speed, 40 m /h, creating a useful basic ventilation. Presence sensor – motion (IR) and light The presence sensor is activated by motion (IR) or when the lighting is switched on. Delay time 15 minutes. - Page 9 Function positions 1 - 7 Pro7 has seven function options. The fan is set to Position 1 at the factory, which means that it will automatically function at three speeds, see function description below. Changing the function The unique multi-function selector makes it easy to switch between functions.
- Page 10 Cleaning To maintain its function and capacity, the fan must be cleaned at least twice a year, or more often if necessary. No solvents may be used on the fan. The fan must not be submerged in or flushed with water.
- Page 11 WEEE and RoHS directive. EE-products (Electrical and Electronic products) In compliance with the WEEE directive Flexit is connected to the national system for recycling of EE-products. The symbol on the product shows that this product must not be treated as household waste.
- Page 12 Dimensions Ø 99 Ø 175...
-
Page 13: Technical Data
Technical data Voltage / frequency 230 V / 50 Hz Power consumption Protection rating IP 44 Insulation class Class II Airflow: Minimum speed 40 m Medium speed 60 m High speed 95 m Max speed 110 m Max pressure 48 Pa Sound pressure 17-25 dB(A) 3m Weight... -
Page 14: Ec Declaration Of Conformity
2004/108/EF Electromagnetic Compatibility (EMC) 2011/65/EU RoHS directiv Manufacturer: Nordiska Klimatfabriken AB, Fogdö Solö, 645 92 Strängnäs, Sweden Type: K7 (Pro7, art.no. 115462) Conformity with following standards, certificates and reports: Standard Certificate Test report EN 60335-1 : 2012 + A11 Intertek Semko 1510297... - Page 16 Flexit AS, Televeien 15, 1870 Ørje, Norway www.flexit.no...
