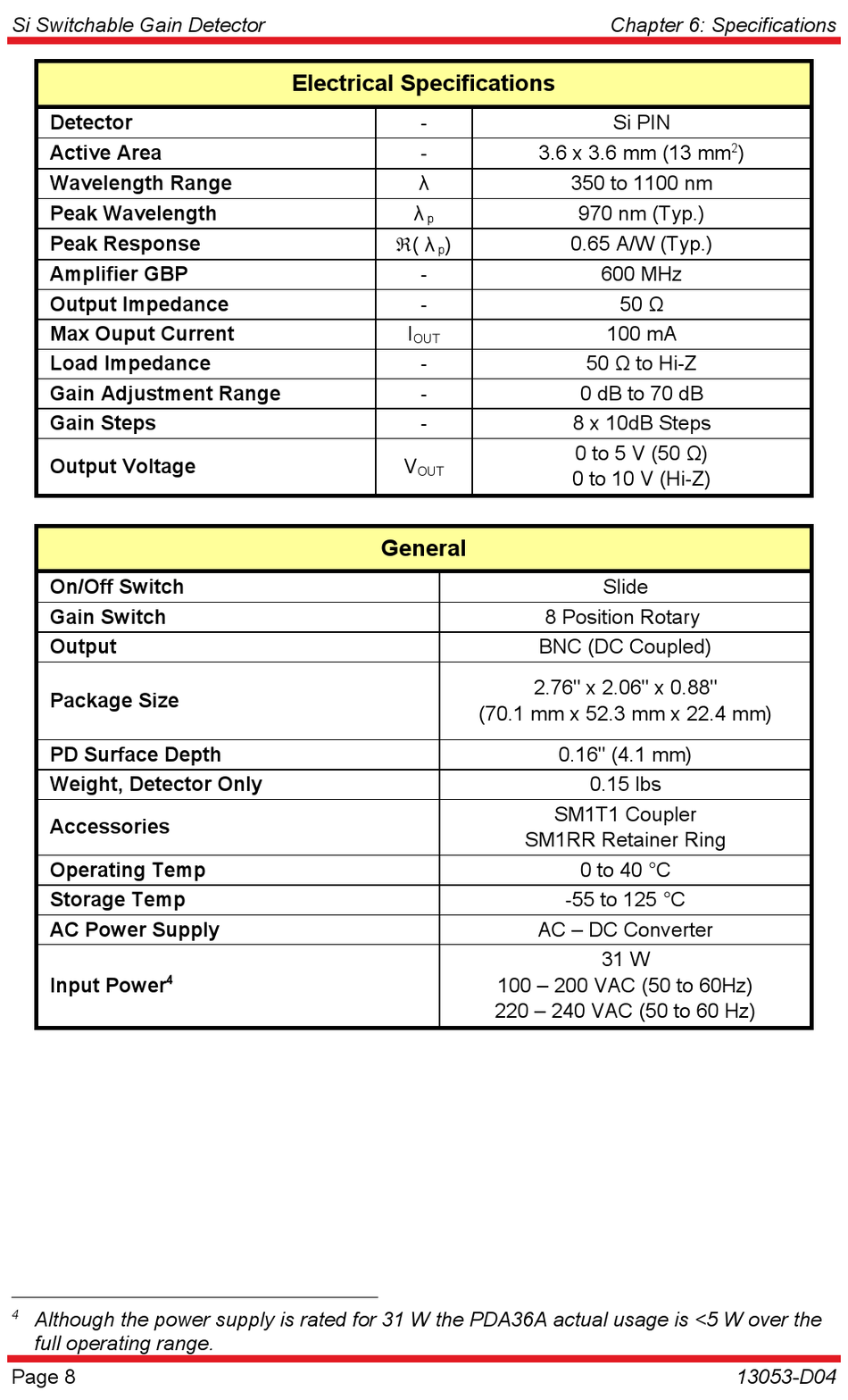

THORLABS PDA36A User Manual page 10

Si Switchable Gain Detector
Detector
Active Area
Wavelength Range
Peak Wavelength
Peak Response
Amplifier GBP
Output Impedance
Max Ouput Current
Load Impedance
Gain Adjustment Range
Gain Steps
Output Voltage
On/Off Switch
Gain Switch
Output
Package Size
PD Surface Depth
Weight, Detector Only
Accessories
Operating Temp
Storage Temp
AC Power Supply
4
Input Power
4
Although the power supply is rated for 31 W the PDA36A actual usage is <5 W over the
full operating range.
Page 8
Electrical Specifications
-
-
λ
λ
p
( λ
)
p
-
-
I
OUT
-
-
-
V
OUT
General
Chapter 6: Specifications
Si PIN
3.6 x 3.6 mm (13 mm
350 to 1100 nm
970 nm (Typ.)
0.65 A/W (Typ.)
600 MHz
50 Ω
100 mA
50 Ω to Hi-Z
0 dB to 70 dB
8 x 10dB Steps
0 to 5 V (50 Ω)
0 to 10 V (Hi-Z)
Slide
8 Position Rotary
BNC (DC Coupled)
2.76" x 2.06" x 0.88"
(70.1 mm x 52.3 mm x 22.4 mm)
0.16" (4.1 mm)
0.15 lbs
SM1T1 Coupler
SM1RR Retainer Ring
0 to 40 °C
-55 to 125 °C
AC – DC Converter
31 W
100 – 200 VAC (50 to 60Hz)
220 – 240 VAC (50 to 60 Hz)
2
)
13053-D04
