ICP DAS USA I-7050 Quick Start Manual

7 ch digital input (counter) and 8 ch digital output data acquisition module
Hide thumbs

Advertisement

Table of Contents

I-7050
7 Ch Digital Input (Counter) and 8 Ch Digital
Output Data Acquisition Module
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/i_7050_i_7050d
http://www.icpdas-usa.com/dcon_utility_pro.html

1. Introduction

I-7050 is intelligently designed to provide signal conditioning system
monitoring and safe value settings. I-7050 is a cost-effective solution for a
wide range of valuable industrial control signals and systems. The DCON
utility can help users to configure and test I-7050 Digital Input/Output
modules. Plenty of library functions and demo programs are provided to let
users develop programs easily under Windows, Linux and DOS operating
systems. Users may mount the modules on a DIN rail, panel or wall.
Modules have a screw-terminal block to connect to the signals.

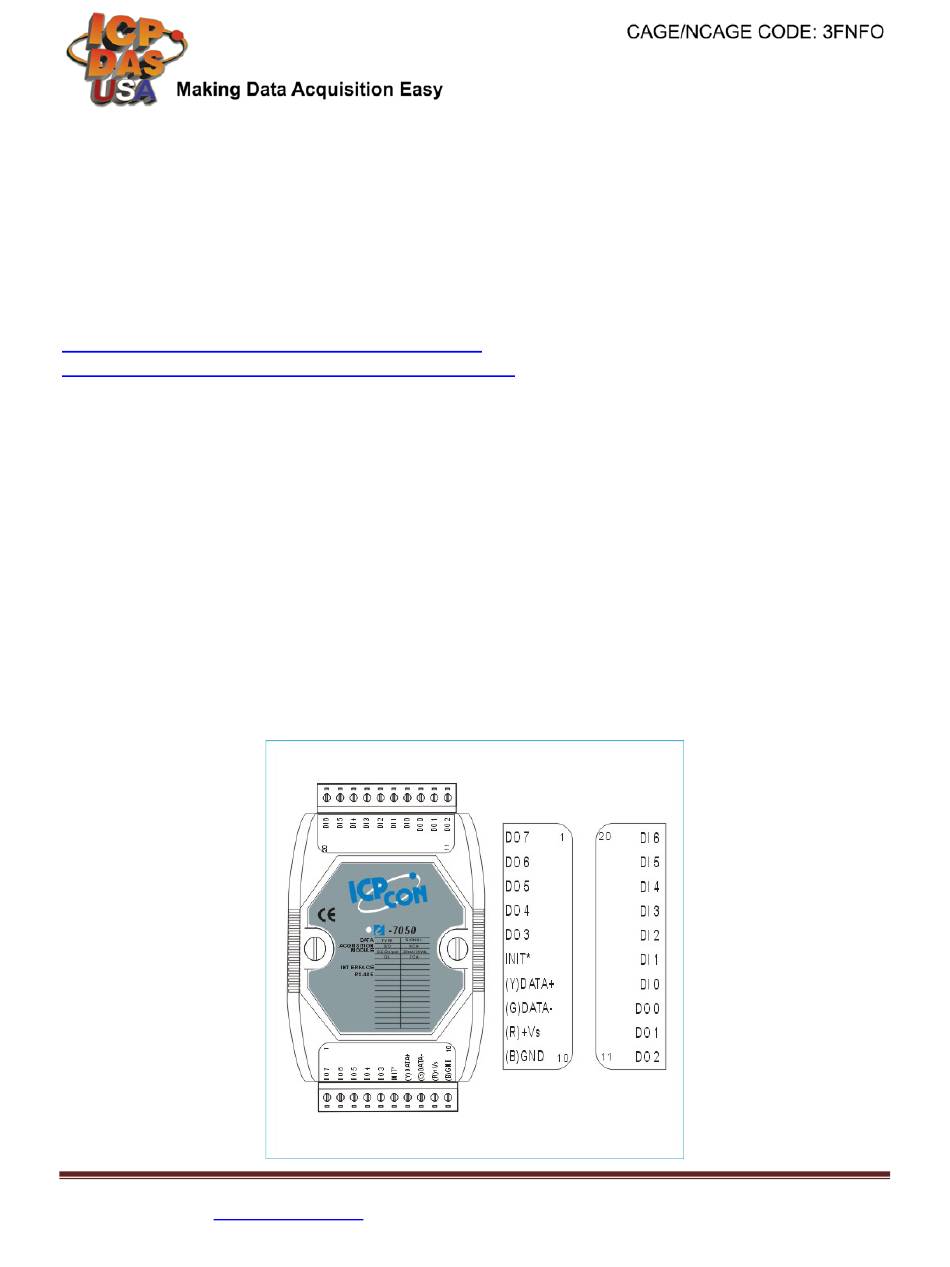

2. Terminal Assignment

I-7050 - 7 Ch DI and 8 Ch DO
DAQ Module- QuickStart (Nov/2017)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
