I-7060
4 Channel Isolated Digital Input (Counter)
and 4 Channel Relay Output Data Acquisition
Module
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/i_7060_d.html
http://www.icpdas-usa.com/dcon_utility_pro.html
1. Introduction
I-7060 is intelligently designed to provide signal conditioning system
monitoring and safe value settings. I-7060 is a cost-effective solution for a
wide range of valuable industrial control signals and systems. The DCON
utility can help users to configure and test I-7060 Relay output and digital
Input module. Plenty of library functions and demo programs are provided
to let users develop programs easily under Windows, Linux and DOS
operating systems. The communication interface is modbus protocol via
RS-485. Users may mount the modules on a DIN rail, panel or wall.
Modules have a screw-terminal block to connect to the signals.

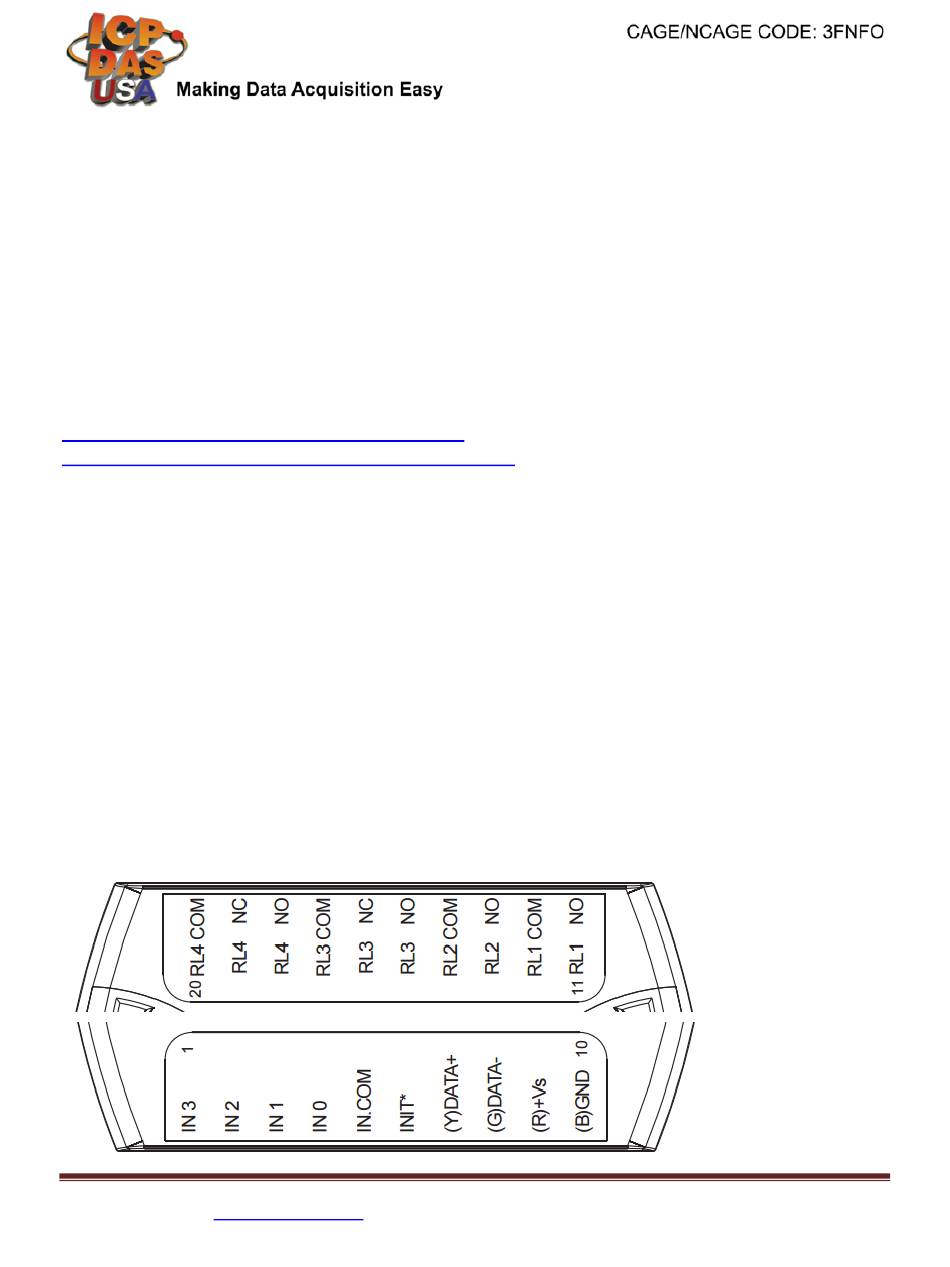

2. Terminal Assignment
I-7060 4 Ch DI and 4 Ch Relay Output DAQ Module - QuickStart (Apr/2017)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
